The BD Avantgarde.Line series is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media. The new design of the units and the homogeneous temperature distribution ensure the very best results.
Benefits
• Excellent temporal and spatial temperature accuracy
• High process reliability
• 100 °C disinfection routine
Important characteristics
• Temperature range: +5 °C above ambient temperature to +100 °C
• High temperature accuracy thanks to APT.line™ technology
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome-plated racks
• Units up to 115 L are stackable
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit

The BINDER MKFT series environmental simulation chamber for low temperature alternating climate profiles is the specialist for dynamic alternating climate change between -70 °C and 180 °C. Large performance reserves and rapid cooling make the MKFT environmental simulation chamber the high-end product for complex standards-based climate tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank
• 1 stainless steel rack
• Complete safety connection kit for water supply and drainage, up to 1 m in height
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit

Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit

Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• Access port with silicone plug, 50 mm, left
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit

The BINDER CB series CO₂ incubator is the premium class among the CO₂ incubators. It is suitable for all sensitive incubation applications and ensures optimal cell growth. A BINDER CB series CO₂ incubator can perform complex cultivation experiments as well as specific enviromental conditions.
Benefits
• Maximum usable space with minimal footprint and excellent ease of use
• Minimum risk of contamination thanks to uncompromising hot-air sterilization
• Fanless, easy-to-clean hygienic interior without fixtures
• Stable pH values thanks to drift-free CO₂ IR sensor technology
• Low evaporation of the medium due to high levels of humidity and quick recovery time
Important characteristics
• Temperature range: +4 °C above ambient temperature to +60 °C
• Humidity range: 90 to 95% RH
• CO₂ control range: 0 to 20 vol.% CO₂
• Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
• Optimized double-pan humidification system with condensation protection
• CO₂ gas-mixing jet with Venturi effect
• Hot-air sterilizable CO₂ sensor with single-beam infrared technology
• Intuitive touchscreen controller
• Internal data recording, can be read out in open format via USB interface
• Fail-safe CO₂ system for protecting the pH of cell cultures
• DuoDoor™ system: Unit door and glass door can be opened with one handle
• Tightly fitted inner door made of safety glass
• Lockable door handle
• Seamless inner chamber made of stainless steel with flanges as shelf support system
• Perforated shelves, stainless steel
• Troubleshooting system with visual and acoustic alarms
• Interfaces: Ethernet, USB, zero-voltage alarm contact
• Units can be stacked with stacking adapters; the CB is suitable for stacking with CBF and CB-S models of the same size

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.
Benefits
• Safety thanks to extensive protective measures
• Homogeneous climate conditions thanks to APT.line™ preheating chamber
• Extensive programming and data collection
• Excellent overview of the test object thanks to large heated viewing window
Important characteristics
• Temperature range: -40 °C to +110 °C
• Class 2 independent temperature safety device when temperature is set to +120 °C
• Reversible stainless steel pressure relief flap installed in the middle on top of the unit
• Enhanced door-locking mechanism with reinforced brackets
• Monitoring of CO, H₂, O₂, and temperature in testing area atmosphere
• Inertization equipment
• CO₂ fire suppression
• APT.line™ preheating chamber technology
• Programmable condensation protection for samples
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ basic edition
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Access port with silicone plug (Models 240), 50 mm, left
• 2 access ports with silicone plugs (Model 720), 80 mm, left and right
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Computer interface: Ethernet
• 230 V power socket on the side control panel on the right
• 1 stainless steel rack, can be freely positioned
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
• TÜV SÜD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6
Optional equipment
• Electromechanical door-locking mechanism
• Additional access ports available in various sizes and locations
• Multi Management Software APT-COM for managing, recording, and documenting unit parameters
• Services – wide range of services to ensure that the unit functions correctly

Refrigerated circulators of the DYNEO series distinguish themselves with a great price-performance ratio. The instruments offer high heating/cooling capacities for short heat-up and cool-down times. The refrigerated circulators work precisely and reliably even at higher ambient temperatures up to +40 °C. Either in basic research, in material testing or in technical systems – the DYNEO refrigerated circulators offer functional solutions for every requirement and budget.
• Models suitable for internal and external applications
• Optimized cooling coil design provides more space in the bath
• Continuously adjustable, powerful pressure pump
• Supply pressure 0.7 bar
• Easy change-over from internal to external circulation and vice versa
• Large color TFT display, multi-lingual user interface
• Ease of use via central rotary dial
• Integrated programmer
• External Pt100 sensor connection
• USB data port
• RS232 interface or analog interfaces (optional)
• Built-in drain tap for easy and safe drainage

JULABO immersion coolers are ideal for counter-cooling in combination with heating circulators and for rapid cooling of fluids down to low temperatures. These units represent a budget-priced alternative to customary cooling with tap water and as a substitute for dry ice.
• User-friendly operation and handling
• Compact design, small footprint
• FT402, FT902 and FT903 with integrated temperature control and display as well as external Pt100 sensor (200 × 6 mm Ø, stainless steel)
• Environmentally friendly alternative to precious tap water
• Dry ice substitution

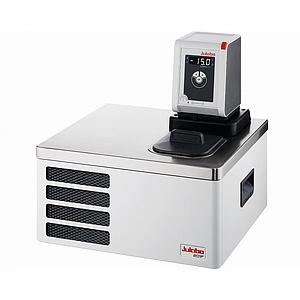

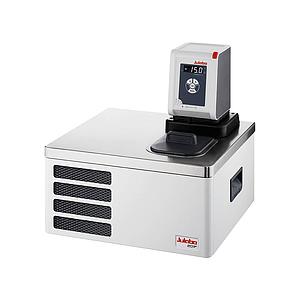

Refrigerated Circulators from the CORIO CP range are suitable for applications with a temperature range from -50°C to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
• Models for internal and external applications
• Bright, white, easy-to-read display
• Very quiet
• Easy change-over from internal to external circulation and vice versa
• External pump connections (M16×1) pump capacity, infinitely adjustable
• USB interface
• R232 interface
• Space-saving cooling coil design provides more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• System for low liquid level
• Class III (FL) according to DIN 12876-1
To adapt the CORIO Refrigerated / Heating Circulator to your individual application, we offer a comprehensive range of accessories (bath fluid, tubing, adapter and more)

Refrigerated / Heating Circulators of the CORIO series distinguish themselves with a great price-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.
• Models for internal and external applications
• Bright, white, easy-to-read display
• Very quiet
• Easy change-over from internal to external circulation and vice versa
• External pump connections (M16×1)
• USB interface
• Space-saving cooling coil design provides more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
To adapt the CORIO Refrigerated / Heating Circulator to your individual application, we offer a comprehensive range of accessories (bath fluid, tubing, adapter and more).

Liebherr offers refrigerators and freezers with a spark-free interior specifically for storing explosive and highly flammable substances in laboratories and in the chemical industry. The inner liners meet the safety requirements of EU Directive 2014/34/EU (ATEX) and have been tested according to the EN 1127-1, IEC 60079-0 and IEC 60079-15 standards by electro-suisse – SEV (Swiss association for electrical and power engineering and information technology), an approved ATEX conformity evaluation organisation.

Product features

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing

• ±5 °C temperature stability
Sensitive substances cannot be subjected to large deviations from the set storage temperature. Liebherr freezers guarantee a temperature fluctuation of no more than ±5 °C, so that the valuable goods you store in them are optimally protected and their quality is preserved.

• Power failure info
Mains failure alarm after a power failure.

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners.

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.

• Mechanical lock
Liebherr professional appliances are equipped with a mechanical lock and two keys. This ensures that unauthorized persons cannot access your valuable and sensitive stored goods.

• SmartMonitoring (optional)
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur

• Retrofittable WiFi/LAN interface
The retrofittable WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Antimicrobial handle with opening mechanism
The smooth-turning handle contains special antimicrobial substances that make it particularly hygienic. Regular and time-consuming disinfection is not necessary

• Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

• Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety.

• SmartFrost
Where there’s no ice, there’s no need to defrost: SmartFrost greatly reduces the frost build-up in the interior and on stored products. Defrosting is required less often – and when it is necessary, it is made much easier by the smooth, easy-to-clean interior walls. The evaporator is embedded in foam insulation, ensuring high energy efficiency and uniform cooling.

Laboratory washer with glass door, with liquid dispensing, DryPlus, conductivity monitoring and monitoring package
• Construction type: Freestanding, can be builtunder, wide, with stainless steel lid, glass door
• Number of wash levels: 2
• Salt container in base of wash cabinet
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H14, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: 99,99
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• 1 dispenser pump for neutralising agent
• Convenient suction lance DC5
• Additional integrated dispensing pump 5–10 l (optional)
• Suction lance for media canisters 10–20 l (optional)
• Spray pressure and spray arm monitoring
• EcoDry - Convenient drying support
• Setting options for process chemicals (3 x 5 l / 2 x 10 l)
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory washer with liquid dispensing, DryPlus, conductivity monitoring, monitoring package & oil seals.
• Construction type: Freestanding, can be builtunder, wide, with lid
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H14, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: 99,99
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• 1 dispenser pump for neutralising agent
• Convenient suction lance DC5
• Additional integrated dispensing pump 5–10 l (optional)
• Suction lance for media canisters 10–20 l (optional)
• Spray pressure and spray arm monitoring
• EcoDry - Convenient drying support
• Setting options for process chemicals (3 x 5 l / 2 x 10 l)
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

The new BSC with Centurion Touchscreen controller is NSF-certified with standby height that easily activates standby mode, an ergonomic work zone that is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest.
The Airstream® NS (E-series) G4 incorporates greener features, ensuring a more sustainable and environmentally friendly operation. With its compact size and advanced features, this biosafety cabinet offers an unparalleled level of convenience and safety, making it the ideal choice for laboratories and research facilities.

Features

• Centurion Touchscreen Controller
Intuitive, comprehensive, and easy-to-understand
Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
Defined details of alarm types with clear instructions for proper intervention
Centered and angled down for easy reach & viewing
Selectable Quickstart mode for fast operation

• Dimmable LED
Adjustable work zone brightness
Ideal light intensity of 1200 lux
Saves energy and optimizes work comfort

• Ergonomic Features
8” (203 mm) sash opening
Frameless, shatterproof, and UV-absorbing tempered glass

• USB Port and Remote Modbus
USB port to access cabinet data log and BMS connectivity
Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

• Cabinet Construction
E-Series:
Tempered Glass Side walls - increases visibility and prevents the operator from experiencing a "boxed-in" feeling
Multi-piece work tray, autoclavable

• Green Product
Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
Extremely low energy consumption with 184 watts (4 ft unit)
Standby mode allows reduced power consumption

• ULPA Filter
10x filtration efficiency compared to the HEPA filter
Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
Same 10 years filter life and replacement cost as HEPA filters
*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

The new BSC with Centurion Touchscreen controller is NSF-certified with standby height that easily activates standby mode, an ergonomic work zone that is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest. It also comes with wider model options offering stainless steel (S-series) and glass (E-series) side wall variants.
The Airstream® NS (S-series) G4 incorporates greener features, ensuring a more sustainable and environmentally friendly operation. With its compact size and advanced features, this biosafety cabinet offers an unparalleled level of convenience and safety, making it the ideal choice for laboratories and research facilities.

Features

• Centurion Touchscreen Controller
Intuitive, comprehensive, and easy-to-understand
Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
Defined details of alarm types with clear instructions for proper intervention
Centered and angled down for easy reach & viewing
Selectable Quickstart mode for fast operation

• Dimmable LED
Adjustable work zone brightness
Ideal light intensity of 1200 lux
Saves energy and optimizes work comfort

• Ergonomic Features
8” (203 mm) sash opening
Frameless, shatterproof, and UV-absorbing tempered glass

• Tray support beams and holder
Support beams for less vibration and holder for easy drain pan cleaning

• USB Port and Remote Modbus
USB port to access cabinet data log and BMS connectivity
Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

• Cabinet Construction
S-Series:
Stainless steel side walls with side capture zones and negative pressure to optimize containment
Single-piece work tray, spill retaining and easy to clean

• Green Product
Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
Extremely low energy consumption with 184 watts (4 ft unit)
Standby mode allows reduced power consumption

• ULPA Filter
10x filtration efficiency compared to the HEPA filter
Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
Same 10 years filter life and replacement cost as HEPA filters
*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

The Binder KBF 470 climate chamber, with its extended temperature and humidity range, combined with the Binder LED light module, can be easily adapted for plant growth applications. The system provides precise control throughout all growth stages, featuring three independent light channels and real-time programming options to perfectly meet the unique needs of plants.

Package contents

Binder KBF 470 standard climate chamber with extended temperature and humidity range

• Temperature range: +20°C to +50°C
• Humidity range: 20% to 50% relative humidity (RH)
• Proven APT.line™ preheating chamber technology
• Up to 40% lower energy consumption compared to the previous model
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with environmentally friendly R-600a refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity control with capacitive humidity sensor and rapid steam humidification
• Housing design with HIT technology
• Stainless steel interior
• Interior doors made of safety glass with metal oxide coating
• Two stainless steel shelves
• Large access port with silicone plug
• Floor-standing design with sturdy twin casters and front brakes
• Stackable desktop models, up to 130 liters in capacity
• Intuitive touch-screen controller with time-segmented and real-time programming
• Internal data logger, measured values can be read in open format via USB
• Independent Class 3.3 temperature safety device (DIN 12880) with visual and acoustic alarms
• Device self-test with comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic version

Binder light module for plant growth

• 16 LED light strips with mounting clips
• Lighting control unit with program controller, power supply, and fresh air pump
• Mounting rails and screws for securing the lighting control unit
• Special silicone foam plugs for sealing the access port
• Cabling

Control unit functions
• Three light channels, individually adjustable from 10% to 100%
• Real-time programming
• Twilight function
• Ventilation function

Includes:

• Magnetic stirrer Hei-PLATE Mix'n'Heat Expert (145 mm diameter)
• Temperature sensor Pt1000
• 1 L Heat-On Blocks
• Findenser™

The Hei-PLATE Mix'n'Heat Expert (145 mm diameter) magnetic stirrer provides fast and precise heating, while the Pt1000 temperature sensor enables accurate temperature regulation. The 1-liter Heat-On unit ensures optimal heat transfer without the need for water or oil. The Findenser™ complements the system as a high-performance condenser that operates without the use of water. Its performance is optimal for solvent volumes up to 1 liter.

High-performance ultrasonic cleaner for versatile applications

The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.

A user-friendly rotary handle control is used for easy adjustment of the cleaning time. Matching baskets, lids and cleaning and disinfection concentrates are available as accessories for optimally coordinated ultrasonic cleaning.

The SONOREX TECHNIK range currently consists of 4 series with common characteristics:

• welded stainless steel cleaning tank, 2 mm
• overflow gutter: combined with an oil separator and or a filtering system to continuously remove dirt, oils and grease floating on the surface of the tank
• cleaning fluid filling level mark, facilitates dosing
• welded drain with three-way ball valve for emptying or filling the tank and connecting a filtration system
• additional drain for connecting an oil separator and draining the overflow gutter
• heating: all models are available with (UH) or without (U) heating: on / off with control indicator, thermostatic, adjustable from 30 to 80 ° C
• case protected against drops of water in stainless steel
• for baskets, possibility of having a motorized lift with agitation function
• possibility of making sets of 2 to 5 stations with ultrasonic bath, rinsing bath, drying tank with a motorized translator / elevator / agitator
• inclined tank bottom for better cleaning results by optimal sound propagation. This facilitates the emptying of the tank and makes it possible to avoid as much as possible the accumulation of dirt and residual liquids at the bottom of the tank
• ultrasound: on / off with control indicator, timer 1 to 15 min. or continuous operation
• 40 kHz frequency generator (built-in)

Hei‐PLATE Mix'n'Heat Core+ and Pt 1000 (V4A) + Pt 1000 clamping system

Includes: Magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ (135 mm diameter) - Fast and precise heating - Without overshoot - For sample-friendly work, Pt1000 temperature sensor for precise temperature regulation, Pt1000 holder with cable device for securely attaching the temperature sensor and silicone protective cover for a longer lasting protection of your magnetic stirrer.
The magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ offers you a digital display for setting your desired temperature to the degree. This precise temperature without overshooting is controlled by two selectable heating modes (FAST/PRECISE) and the optional external temperature sensor Pt1000.

It convinces with its robust design and its sophisticated functionalities, such as its key and knob illumination, which provides information about active functions at any time. The dynamic rotary knobs respond to turning speed - slow for precise adjustments, or fast for bigger jumps. The locking function protects against accidental changing of the values. This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures > 50 °C, protect against burns. A carrying aid on the underside ensures safe transport.

• Circular scratch-resistant, chemical-resistant mixing plate with Kera-Disk coating
• Plate diameter ø: 135 mm
• Temperature range: 20 – 300 °C
• Heating power: 800 W
• Rotation speed range: 100… 1400 rpm
• Accuracy temperature setting: ± 1 K
• Speed accuracy: ± 2 %
• Max. stirring capacity (H₂O): 20 l
• The appliance has a residual heat indication
• Maximum load: 25 kg
• Protection class IEC 60529: IP 42
