BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe working thanks to ATEX-compliant safety concept
• Also option of modular complete system with vacuum pump and pump chamber
Important characteristics
• Temperature range: +9 °C above ambient temperature to +110 °C
• ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Intuitive touchscreen controller with graphical pressure and temperature display
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• Pressure control device for heating activated from < 100 mbar
• 2 aluminum expansion racks, can be custom-positioned
• Universal connection for ventilation with ambient air or inert gas
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window
• Computer interface: Ethernet
Optional equipment
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function

BINDER’s VD series vacuum drying chambers deliver impressive performance through their precise temperature control and gentle drying. The patented expansion rack technology from BINDER also optimizes heat transfer. The shelves can be repositioned for flexible placement and the interior of the chamber is easy to clean.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe work thanks to proven safety concept
• Also option of modular complete system with vacuum pump and pump chamber
• Important characteristics
• Temperature range: +9 °C above ambient temperature to +220 °C
• Controller with digital display of pressure and temperature
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• 1 aluminum expansion rack, can be custom-positioned
• Inert gas connection
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window with option of interior lighting
• Computer interface: Ethernet
• 2 relay outputs, 24 V DC (max. 0.4 A)
Optional equipment
• Touchscreen Controller - Graphical display of main process parameter
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function

BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Benefits
• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to 300 °C
Important characteristics
• Temperature range: +10 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with LCD display and enhanced time functions
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• Ethernet interface
• USB port for recording data

A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Benefits
• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to +300 °C
Important characteristics
• Temperature range: +10 °C above ambient temperature to +300 °C
• High temperature accuracy thanks to APT.line™ technology
• Forced convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 L are stackable
• Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
• Ergonomic handle design
• USB port for recording data

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Benefits
• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to +300 °C
Important characteristics
• Temperature range: +5 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

The KT series combines outstanding performance with impressive energy efficiency and environmental friendliness. The cooled incubators of the KT series are state-of-the-art in application and protect the samples.
Benefits
• Safe and reproducible incubation conditions even at high environmental conditions
• Disinfection routine at 100 °C
• Energy efficient, environmentally friendly and secure
Important characteristics
• Temperature range: +4 °C to +100 °C
• APT.line™ preheating chamber technology
• Adjustable fan speed
• Electric cooling with Peltier module
• Controller with time-segment and real-time programming
• Display via LCD monitor
• Input via pushbutton/rotary knob
• Inner door made of tempered safety glass
• 2 stainless steel racks
• Units up to 115 liters are stackable
• Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
• Computer interface: Ethernet
• Data recording and USB interface

The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.
Benefits
• Excellent temporal and spatial temperature accuracy
• High process reliability
• 100 °C disinfection routine
Important characteristics
• Temperature range (model 56 | 260): +7 °C above ambient temperature to +100 °C
• Temperature range (model 115): +8 °C above ambient temperature to +100 °C
• High temperature accuracy thanks to APT.line™ technology
• Forced convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome-plated racks
• Units up to 115 L are stackable
• 4 stable castors, two with brakes, from 720 liters
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

The BD Avantgarde.Line series is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media. The new design of the units and the homogeneous temperature distribution ensure the very best results.
Benefits
• Excellent temporal and spatial temperature accuracy
• High process reliability
• 100 °C disinfection routine
Important characteristics
• Temperature range: +5 °C above ambient temperature to +100 °C
• High temperature accuracy thanks to APT.line™ technology
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome-plated racks
• Units up to 115 L are stackable
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit

The BINDER MKFT series environmental simulation chamber for low temperature alternating climate profiles is the specialist for dynamic alternating climate change between -70 °C and 180 °C. Large performance reserves and rapid cooling make the MKFT environmental simulation chamber the high-end product for complex standards-based climate tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank
• 1 stainless steel rack
• Complete safety connection kit for water supply and drainage, up to 1 m in height
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit

Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit

Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• Access port with silicone plug, 50 mm, left
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit

BINDER’s new Multi Management Software provides management, logging, programming, and documentation options, and much more. With features ranging from GLP-compliant logging to convenient program creation and management of up to 100 units, the APT-COM™ 4 can be used in all industries and makes complex work processes much easier.

Important characteristics

APT-COM™ 4 BASIC edition
• Administration of up to five connected units
• Log management (creating, deleting, archiving)
• Documentation of measured values
• Central overview of all units in both diagram and table form
• Graphical presentation of measured values
• Graphical/numerical program editor
• Manual export of measured values (CSV/PDF file)
• Multilingual user interface (German, English, French, Spanish, Italian)
• Optional program execution via APT-COM™
• Timer function
• Import of data from APT-COM™ 3
APT-COM™ 4 PROFESSIONAL edition
All the same functions as the BASIC edition and:
• Administration of up to 100 connected units at the same time
• Central overview of all units in a room plan
• Email-based alarm system
• Web server for displaying results
• User administration for multiple users and authorizations
• Automatic, time-managed export of measured values
• Reports for further processing/archiving
• Automatic/manual backup and recovery
APT-COM™ 4 GLP edition
All the same functions as the PROFESSIONAL edition and:
• Can be validated according to 21 CFR Part 11 including validation documents
• Documentation of measured values in a tamper-proof file in accordance with GLP/GMP guidelines on audit trails
• Electronic signatures

JULABO immersion coolers are ideal for counter-cooling in combination with heating circulators and for rapid cooling of fluids down to low temperatures. These units represent a budget-priced alternative to customary cooling with tap water and as a substitute for dry ice.
• User-friendly operation and handling
• Compact design, small footprint
• FT402, FT902 and FT903 with integrated temperature control and display as well as external Pt100 sensor (200 × 6 mm Ø, stainless steel)
• Environmentally friendly alternative to precious tap water
• Dry ice substitution

Advanced control technology and a small bath fluid reservoir enable highly dynamic temperature control systems to achieve rapid heat-up and cool-down. This gives you the ability to handle difficult temperature challenges quickly.
The PRESTO® systems are designed for precise temperature control as well as rapid temperature changes, making them ideal for reactor vessels, material stress tests, or temperature simulations. These instruments cover a working temperature of -92 to +250 °C with high cooling and heating capacity.
• USB connection
• For highly precise, external temperature applications
• Rapid heating and cooling
• Wide working temperature ranges without changing fluids
• Highest performance with small footprint
• Space-saving design optimizes space utilization in your lab
• Ethernet interface
• SD-Card slot
• RS232 / RS485 (optional) / Profibus DP (optional)
• Connections for alarm-output, Pt100 external sensor and standby-input
• Removable ventilation grid
• Highly precise ICC cascade temperature control
• Electronic level indication
• Integrated programmer
• Unsurpassed power and efficiency
• Space optimized design creates more room directly next to the units
• External Pt100 sensor connection

Refrigerated Circulators from the CORIO CP range are suitable for applications with a temperature range from -50°C to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
• Models for internal and external applications
• Bright, white, easy-to-read display
• Very quiet
• Easy change-over from internal to external circulation and vice versa
• External pump connections (M16×1) pump capacity, infinitely adjustable
• USB interface
• R232 interface
• Space-saving cooling coil design provides more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• System for low liquid level
• Class III (FL) according to DIN 12876-1
To adapt the CORIO Refrigerated / Heating Circulator to your individual application, we offer a comprehensive range of accessories (bath fluid, tubing, adapter and more)

Refrigerated / Heating Circulators of the CORIO series distinguish themselves with a great price-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.
• Models for internal and external applications
• Bright, white, easy-to-read display
• Very quiet
• Easy change-over from internal to external circulation and vice versa
• External pump connections (M16×1)
• USB interface
• Space-saving cooling coil design provides more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
To adapt the CORIO Refrigerated / Heating Circulator to your individual application, we offer a comprehensive range of accessories (bath fluid, tubing, adapter and more).

Refrigerated / heating circulators of the CORIO series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.
Product features:
• Models for internal and external applications
• Bright, white, easy-to-read display
• Very quiet
• Easy change-over from internal to external circulation and vice versa
• Integrated pump connection (M16×1)
• USB connection
• Space-saving cooling coil design provides more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1

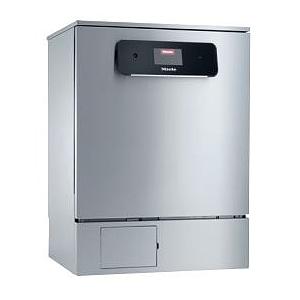

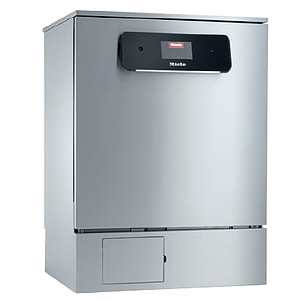

Laboratory dishwasher with liquid dispensing, DryPlus hot air drying and monitoring package
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H13, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: >99,95
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• Suction lance for media canisters 10–20 l (optional)
• DS5 Flex suction lance
• Spray pressure and spray arm monitoring
• DryPlus - Efficient hot air drying
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Refrigerated / heating circulators of the CORIO series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.
Product features:
• Models for internal and external applications
• Bright, white, easy-to-read display
• Very quiet
• Easy change-over from internal to external circulation and vice versa
• Integrated pump connection (M16×1)
• USB connection
• Space-saving cooling coil design provides more usable space in the bath tank
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
• Refrigerant R290
