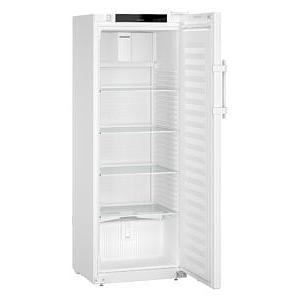

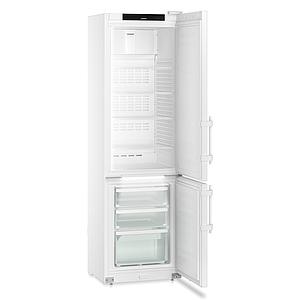

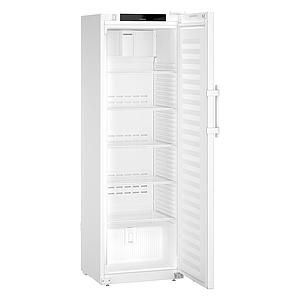

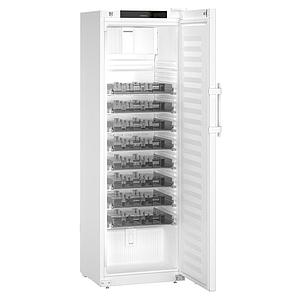

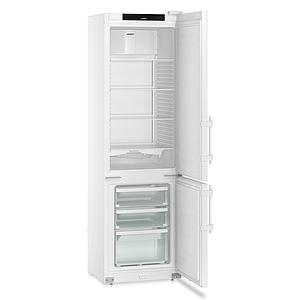

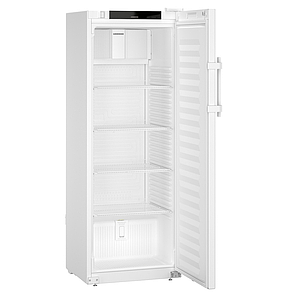

Liebherr offers refrigerators and freezers with a spark-free interior specifically for storing explosive and highly flammable substances in laboratories and in the chemical industry. The inner liners meet the safety requirements of EU Directive 2014/34/EU (ATEX) and have been tested according to the EN 1127-1, IEC 60079-0 and IEC 60079-15 standards by electro-suisse – SEV (Swiss association for electrical and power engineering and information technology), an approved ATEX conformity evaluation organisation.

Product features

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing

• ±5 °C temperature stability
Sensitive substances cannot be subjected to large deviations from the set storage temperature. Liebherr freezers guarantee a temperature fluctuation of no more than ±5 °C, so that the valuable goods you store in them are optimally protected and their quality is preserved.

• Power failure info
Mains failure alarm after a power failure.

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners.

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.

• Mechanical lock
Liebherr professional appliances are equipped with a mechanical lock and two keys. This ensures that unauthorized persons cannot access your valuable and sensitive stored goods.

• SmartMonitoring (optional)
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur

• Retrofittable WiFi/LAN interface
The retrofittable WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Antimicrobial handle with opening mechanism
The smooth-turning handle contains special antimicrobial substances that make it particularly hygienic. Regular and time-consuming disinfection is not necessary
•
Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

•Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety.

• SmartFrost
Where there’s no ice, there’s no need to defrost: SmartFrost greatly reduces the frost build-up in the interior and on stored products. Defrosting is required less often – and when it is necessary, it is made much easier by the smooth, easy-to-clean interior walls. The evaporator is embedded in foam insulation, ensuring high energy efficiency and uniform cooling.

Accurate dosing is particularly important in the pharmaceutical, cosmetic or food sector.
Comprehensible process conditions are a prerequisite for the safe conveyance of sensitive media. This is ensured by a control accuracy of ±0.5% and precise speed adjustment (5 — 120 rpm). In addition, an optional foot switch allows the pump to be operated in closed exhaust hoods. The parameters - speed, direction of rotation and on/off function - can be controlled externally either through the analog or digital interface. In this model, you can choose between a single-channel or multichannel pump head. Flow rates vary depending on the pump head: the single-channel head has a flow rate of 0.38 — 813 ml/min; for the multi-channel head 0.005 — 364 ml/min. Depending on the focus of the process, the following parameters can be set on the device: Speed, tubing diameter, flow rate display, metering volume, interval dosing and break times. The pump can be calibrated for optimum dosing results.
Other technical Data:
• Speed setting: digital
• Electronic speed control: digital
• Select direction of rotation: CW / CCW
• Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
• Safety feature: electronic current limiter and overheat protection

This peristaltic pump is ideal for the simple conveying of all media. The pump drive of this model makes it possible to switch between a single channel and multi-channel pump head. By simply flipping the switch, it can also be conveyed in an anti-clockwise direction. Depending on the adapted pump head, a flow rate of 0.83 - 861 ml/min for the single-channel and 0.005 - 364 ml/min for the multi-channel pump head is guaranteed. The Core 120 conveys with a control accuracy of ± 2% at a speed range of 10 - 120 rpm.
• Speed setting: scale
• Electronic speed control: digital
• Select direction of rotation: CW / CCW
• Safety feature: overheat protection

This model has a flow rate of 2.0 — 4,056 ml/min and is designed for operation with singlechannel pump heads. The analog interface makes it possible that all functions can be controlled externally. A control accuracy of ±0.5% and a conveyor speed of 24 to 600 rpm provide optimum process conditions. In addition, sensitive media can be protected from influence by using the optional foot switch. Like all Heidolph peristaltic pumps, the conveying direction of this model can be changed by a simple push of a button. Furthermore, the accelerated filling and emptying of the tubing is simplified, since here only the button for the maximum speed has to be pressed.
Other technical Data:
• Speed setting: scale
• Electronic speed control: digital
• Select direction of rotation: CW / CCW
• Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
• Safety feature: electronic current limiter and overheat protection

For reproducible results and liquid transfer
The pump drive of the model 120 of the Hei-FLOW Expert series can be operated with either single-channel or multi-channel pump heads. The flow rates with single-channel pump heads are in the range of 0.38 — 813 ml/min; with multi-channel pump eads from 0.005 — 329 ml/min. By integrating an analog interface, it is possible to control all functions externally. In addition, an optional foot switch can be adapted to enable dosing by foot pressure. Hands thus remain free to perform other work, for example, to hold the tubing and the vessel. A speed of 5 — 120 rpm with a control accuracy of ±0.5% guarantees optimum process results.
Other technical Data:
• Speed setting: scale
• Electronic speed control: digital
• Select direction of rotation: CW / CCW
• Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
• Safety feature: electronic current limiter and overheat protection

• The ability to switch between precise dosing and fast conveying make this pump model the perfect complement to a reactor system. With a flow rate of 2.0 - 4,056 ml / min, when operated with single-channel pump heads, flows from feed-batch and chemostat modes of operation can be conveyed precisely. Rapid filling and emptying of the reactor system is also possible.
• In addition to the selectable process parameters - speed, tubing diameter, flow quantity display, dosing volume, interval dosing and break times - the pump conveying characteristics are stored in the program. Thanks to the analogue and digital (RS 232) interfaces, processes can be automated.
• All media is conveyed with a control accuracy of ±0.5% at a speed of 24 — 600 rpm. An optional foot switch can be connected for dosing by foot pressure.

Work space in laboratories must be used efficiently. The Omnia xs system frees up space on the lab bench and makes work more efficient.

Despite the extremely compact design in xs format, the system works in a resource-saving and completely autonomous way. Accessories such as a leakage sensor, pressure reducer, and pre-treatment cartridges are already integrated in the compact housing. This saves space in the laboratory and also ensures exceptional operational and occupational safety.
OmniaTap xs basic is the ideal system when both pure water and ultrapure water are required, but in relatively small amounts. The ability to provide both types from a single system results from the combination of ultramodern purification technologies. These also make it possible to connect the system directly to tap water. A press on the dispenser button activates dispensing of ultrapure water type I via the digital dispenser control. The recirculation of the pure water held in the installed 7 litre tank keeps it permanently at type II quality. The pure water tank provides a second optional outlet for feeding downstream end users. A pure water storage tank is required to operate the OmniaTap devices, which can be ordered separately.

Features
• OptiFill basic dispenser is standard
• Spent filters are simply and quickly exchanged
• Leakage sensor is standard
• Ready-to-use, including filter cartridges

Pure and ultrapure water from the super slim Omnia xs compact system with intuitive basic dispenser.
Work space in laboratories must be used efficiently. The Omnia xs system frees up space on the lab bench and makes work more efficient.
Despite the extremely compact design in xs format, the system works in a resource-saving and completely autonomous way. Accessories such as a leakage sensor, pressure reducer, and pre-treatment cartridges are already integrated in the compact housing. This saves space in the laboratory and also ensures exceptional operational and occupational safety.

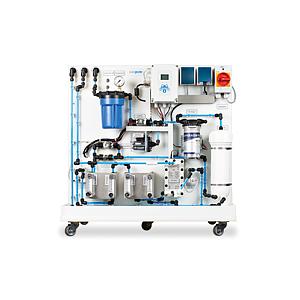

When your need is for highest quality pure water that fulfils the demands of analytical and life science laboratory requirements, then one of these OmniaPure systems will be the right choice for you. The incorporated pre-treatment constantly ensures the reliability of your experimental results and reduces running costs.
Features
• OptiFill basic dispenser is standard
• Spent filters are simply and quickly exchanged
• Leakage sensor is standard
• Integrated pressure reducer is standard
• Very space saving
• Ready-to-use, including filter cartridges

Shaking unit SS-X SMX1910
• Tray, size: F (800x420mm)
• Loading, maximum: 25kg
• Shaking motion: speed
* orbital, Ø 12.5mm 20...500 rpm
* orbital, Ø 25.0mm 20...400 rpm
* orbital, Ø 50.0mm 20...300 rpm
* can be changed
• Setting, digital: 1 rpm
• Accuracy, absolute: ± 0.5 rpm
• Timer: 1s ... 999h
• Acceleration: controlled
• Active brake: adjustable
• Stop on position: adjustable

Are you screening using large numbers of 50ml bioreactors (TPP, Falcon tubes etc.)? Then our new EPFL-table is the ideal solution. This table accepts tube holders, each with a capacity of 24 x 50ml tubes. Each tube holder has its own clamp handle allowing it to be easily taken out of the incubator shaker and put on a clean bench while the other tubes keep on shaking. It’s also possible to shake microtiter plates on the EPFL-table, using Duetz 4-place coverclamps. If you have a Kuhner F-size tray (800 x 420mm), you can also clamp that on the table instead of individual holders.

• Test tube holder RGH-16 (24 tubes)
• For test tubes with 16 - 17 mm diameter (15ml TPP/falcon)

• For 2x12 Microtiterplates or 1x12 Deepwell plates
• Tray size E (420x420mm)
• For MT-trays the shaking speed is limited tomax. 600 rpm at 3 mm shaking diameter

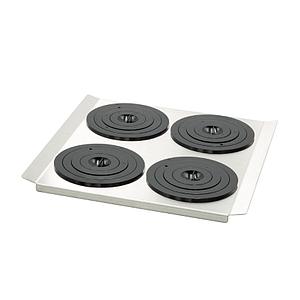

Universal tray EU compl. 420x420 mm with shaped M4 threads for mixed loading with clamps for different Erlenmeyer flasks or test tube holders

Tray with fixed clamps E-25 To load 81 Erlenmayer flasks with a volume of 25 ml

Kuhner Kelvin+ can be placed on, or under, any table or lab bench. The incubator has a flat front and a space-saving door mechanism. The large window provides a good view of cultivation vessels. For static experiments, a fixed shelf may be placed above the shaking tray inside the chamber. The 40 mm feedthrough port provides enough space for tubing and cables needed for the cultivation process. An exterior side-mounted document holder adds convenience to the Kuhner Kelvin+.
The stainless-steel chamber of the Kuhner Kelvin+ is easily cleaned.
Technical data Kuhner Kelvin+
• Temperature distribution: +/- 0.5°C (at 37°C, 100 rpm)
• Principle of sensor: Pt-100
• Air circulation: 190 m3/h
• Illumination: LED
• Ambient temperature: 10 up to 35°C
• Operating menu in: DE, FR, EN, IT, ES
• Interface standard: CAN-Bus
• Tray, size: E (420 x 420mm)
• Control accuracy, absolute: <+/- 0.3°C
• Material: inner chamber stainless steel, outer chamber PUR (insulation), door polycarbonate

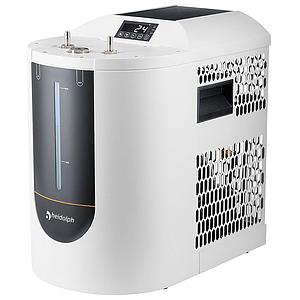

Recirculation cooler for high-performance rotary evaporators
• Filling opening at the top, drain tap at the rear
• Integrated programmer with 150 segments, can be divided into 5 programs
• Electronic level indicator and low-level alarm
• SmartCool system for digital, energy-saving cooling control, including automatic compressor control
• Clearly arranged control elements, large TFT display and membrane keypad
• USB interface and an alarm contact are integrated as standard features
• Temperature range: -20...+40 °C
• Cooling capacity at +20 °C (20 °C ambient temp.): 3000 W
• Pump pressure max.: 2 bar
• Pump flow max.: 20 l/min
• Thermal fluid fill volume: 20 – 33 l
• Dimensions (w/d/h): 550 x 650 x 970 mm

Three-stage chemical-resistant diaphragm vacuum pump
• Includes secondary condenser and air intake separation vessel
• This vacuum system can be applied in many different fields in order to evacuate, evaporate and pump out gases and vapors. Thanks to the emission condenser it is possible to achieve a chemical recovery of almost 100%
• Excellent compatibility with chemicals and condensate
• Very quiet and very low vibration

Chemically resistant membrane pump for Hei-VAP Expert Control and Hei-VAP Ultimate Control devices. The vacuum can be controlled by changing the speed of the pump, enabling constant distillation conditions and shorter operation times.
• Even if the gas ballast valve is open an excellent ultimate vacuum is reached when working with easily condensable vapors. This makes distilling high boiling point solvents such as DMF or DMSO possible at low bath temperatures.
• Condenser is not in scope of delivery

Chemically resistant membrane pump for all Hei-VAP models.
• Suction capacity for up to three rotary evaporators at the same time
• Vacuum can be controlled via valve operated or manual vacuum controllers
• Depending on your application you can switch on and off the vacuum pump via switchbox
• A Vacuum valve is necessary, if you want to combine this vacuum pump with the Hei-VAP Expert Control / Hei-VAP Ultimate Control rotary evaporators
• Condenser is not in scope of delivery

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KBF-S ECO climatic chamber is one of the most energy-efficient constant climate chambers on the market. The thermoelectric cooling technology means the KBF-S ECO series is also very quiet during operation.
Benefits
• Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
• Reliable thanks to failsafe operation without compromise.
• Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
• Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Main features
• Temperature range: 0 °C to +70 °C (max. 24 °C under ambient temperature)
• Unit self-test for comprehensive status analysis
• Inner chamber made completely of stainless steel
• Humidity range: 10% to 80% RH
• APT.line™ preheating chamber technology
• Independent water supply via tank
• LCD to display temperature and humidity along with additional information and alarms
• Internal data logger, measured values can be read out in open format via USB
