Storage tanks in grey PP for storing purified water from reverse osmosis systems. Closed and opaque design, round, including manhole for cleaning. The tank comes completely piped and is available with optional accessories.
• Input connection: R ¾''
• Drain connection: R 1¼''
• Volume (l): 100
• Dimensions (Ø x height, mm): 470 x 680
• Net weight (kg): 12

Completely automatic water softening unit with Mix Multi filter material, for softening of iron and manganic free drinking water and removal of organics, for bad water qualities and well water application that produces softened water with a residual hardness of 0.1° dH by means of the neutral exchange process with strong acid cation exchanger. Common salt is used for regeneration. Regeneration is carried out volume-dependently. Manual initiation of regeneration is also possible.
Scope of delivery:
• Fiberglass pressure tank and filling with cation exchanger
• Central control valve with 5 step regeneration program
• Container for dissolving salt
• Pre-assembled system ready for connection
Technical data:
• Capacity: (at 10°dH - tap water) 32 m³x°dH
• Flow rate: 0,32 m³/h
• Resin volume: 8 liter
• Capacity of salt container: 25 kg
• Salt consumption: 1,92 kg/reg.
• Water consumption: 0,08 m³/reg.
• Operating pressure: 2 to 6 bar
• Max. water temperature: 30°C
• Max. ambient temperature: 5 to 40°C
• Power supply: 220 V 50 Hz
• Dimensions: W 310 x D 430 x H 660 mm
• Piping connections: R1“

One way mixed bed ion exchange resin for polishing process water to achieve demineralized water quality.

Stakpure DS ion exchange cartridge - stainless-steel, pressure-resistant to 10 bar
For any situation requiring up to 300 litres of demineralised water an hour. A sophisticated flow system for incoming water ensures a fast and effective flow of water through the mixed-bed system with ion-exchange resins.
• Flow rate: 300 l/h
• Capacity for 10° total dissolved solids: 1500 l
• Pure water quality: 0,1 - 20 μS/cm
• Max. water temperature: 30 °C
• Material: stainless steel – AISI 316
• Dimensions mm (Ø x height): 240 x 410
• Connection: R ¾ "
• Weight, approx.: 14 kg

Heat-resistant gloves for protection of the operator when loading or removing hot materials

Fiberboard boxes have the dimension of 130 x 130 x 50 mm (5.25’’ x 5.25’’ x 2’’).
Dividers have to be ordered separately.

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Compatible adapters and other accessories:
• Adapter, D6mm, 0.2/0.4ml Tubes x6 (30130884); Adapter, D8mm, 0.5ml Tubes x6 (30130885)

Hei‐PLATE Mix'n'Heat Core+ and Pt 1000 (V4A)

Includes: Magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ (145 mm diameter) - Fast and precise heating - Without overshoot - For sample-friendly work and Pt1000 temperature sensor for precise temperature regulation. The magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ offers you a digital display for setting your desired temperature to the degree. This precise temperature without overshooting is controlled by two selectable heating modes (FAST/PRECISE) and the optional external temperature sensor Pt1000.

It convinces with its robust design and its sophisticated functionalities, such as its key and knob illumination, which provides information about active functions at any time. The dynamic rotary knobs respond to turning speed - slow for precise adjustments, or fast for bigger jumps. The locking function protects against accidental changing of the values. This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures > 50 °C, protect against burns. A carrying aid on the underside ensures safe transport.

• Circular scratch-resistant, chemical-resistant mixing plate with Kera-Disk coating
• Plate diameter ø: 145 mm
• Temperature range: 20 – 300 °C
• Heating power: 800 W
• Rotation speed range: 100… 1400 rpm
• Accuracy temperature setting: ± 1 K
• Speed accuracy: ± 2 %
• Max. stirring capacity (H₂O): 20 l
• The appliance has a residual heat indication
• Maximum load: 25 kg
• Protection class IEC 60529: IP 42
• Also available with 135 mm plate on request

The speed and temperature are set using a scale. This magnetic stirrer is very easy to use and is equipped with the most important safety features. The large safety distance between the heating plate and the control elements, as well as the optical residual heat indicator at temperatures > 50 °C, protect against burns. A carrying aid on the underside ensures safe transport. The heating function can be activated separately and is indicated by the LED button lighting up.
• Circular scratch-resistant, chemical-resistant mixing plate with Kera-Disk coating
• Plate diameter ø: 145 mm
• Temperature range: 20 – 300 °C
• Heating power: 800 W
• Rotation speed range: 100… 1400 rpm
• Speed accuracy: ± 2 %
• Max. stirring capacity (H₂O): 20 l
• The appliance has a residual heat indication
• Maximum load: 25 kg
• Protection class IEC 60529: IP 42

Base, rollable 1.150 mm wide ready, with bottom tray, floor drain. established connection without.
• Can be used for 1-door appliances with a width of 1.150 mm
• Running wheels for pulling the equipment forward, in case of servicing
• Can only be used for appliances with a drain valve
• Easy access for servicing

Machine affiliation: Can be used for PLW 8617 devices.

Mobile unit for optimum loading of laboratory glassware on upper levels.
• Area of application: reprocessing laboratory glassware
• Equipped with 1 integrated spray arm
• For holding inserts
• Clearance: 484 x 525 mm

Machine affiliation: Can be used for PLW 6111 devices.

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KB ECO cooling incubator is one of the most energy-ecient cooling incubator on the market. The thermoelectric cooling technology means the KB ECO series is also very quiet during operation.
Benefits
• Safe: Unique condensate and dry-out protection for all operating conditions
• Reliable: Fail-safe operation due to intelligent thermoelectric tempering
• Smart: Temperatures programmable for intermitted incubation and refrigeration
• Economical: Minimum energy consumption thanks to optimized thermoelectric cooling
Main features
• Temperature range: 0 °C through +70 °C (max. 28 °C below the ambient temperature)
• APT.line™ preheating chamber technology
• Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
• Inner door made of tempered safety glass
• Inner chamber made completely of stainless steel
• 2 rack, stainless steel
• Access port with silicone plug Ø 30 mm
• LCD to display temperature along with additional information and alarms
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis

The BioChem-VacuuCenter BVC basic is designed for connection to an existing external vacuum source like a diaphragm pump or a vacuum network (e.g., VACUU•LAN®) and does not require electric power. The chemical-resistant mechanical vacuum controller always ensures an optimal operating vacuum. The controller opens only when needed thus limiting the gas load on the vacuum source. The evaporation of collected liquid is minimized. The inlet tubing integrated in the bottle head reduces aerosol and foam formation and ensures a long service life of the hydrophobic protection filter. The aspiration system is available either as BVC basic with 4l PP bottle or as BVC basic G with 2l coated borosilicate glass bottle.
Performance features
• mechanical vacuum regulator and integrated check valve to provide optimum working vacuum and minimize the vapor load on the vacuum network
• stable base and electricity-free operation for convenience
• autoclavable collection bottle designed to reduce aero­sol and foam formation; autoclavable quick-couplings available as accessory
• aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube - no contamination of handle by aspirated media
• hydrophobic 0.2 µm sterilizable filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle

While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.
The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment
Applications:
• Microbiology (non-pathogenic)
• Forensics
• Sterile product compounding
Features
• High-Quality Construction
Stainless steel worktop
Spill-retaining design will ensure containment of accidental liquid spills
• Quiet Operation
Comfortable low noise at 52 dBA
Reduce fatigue and improve work concentration
• ULPA Filter
10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
• Energy-efficient
Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors
70% Energy savings compared to AC motor
Stable airflow, despite building voltage fluctuations & filter loading
• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

Airstream® Gen 3 Vertical Laminar Flow Cabinet
While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.
The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment
Applications:
• Microbiology (non-pathogenic)
• Forensics
• Sterile product compounding
Features
• High-Quality Construction
Stainless steel worktop
Spill-retaining design will ensure containment of accidental liquid spills
• Quiet Operation
Comfortable low noise at 52 dBA
Reduce fatigue and improve work concentration
• ULPA Filter
10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
• Energy-efficient
Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors
70% Energy savings compared to AC motor
Stable airflow, despite building voltage fluctuations & filter loading
• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

A compact sized shaker-incubator with an excellent temperature distribution
The Lab-Shaker LS-Z and the incubator Kuhner Kelvin+ combine approved Kuhner quality in a new modular system to provide maximum flexibility to our customers. The LS-Z, just like its predecessor LS-X, is a sturdy benchtop shaker designed for continuous and maintenance-free ope­ration. Our new Kuhner Kelvin+ is a compact sized incubator with an excellent temperature distribution.
Performance characteristics
• Compact footprint
• Hygienic design: easy cleaning
• Fast regeneration time due to stainless steel chamber
• Very good temperature distribution
• Large feedthrough port
• Kuhner TOM online measurement tool upgradable
Technical data - Lab-Shaker LS-Z
• Power consumption typical: approx. 25W
• Weight shaker: 46 kg
• Weight Power Cube: 6.5 kg
• Weight Controller: 0.6 kg
• Ambient temperature: -20 up to 80°C
• Ambient relative humitidy: up to 90 % (shaking unit)
• Operating menu in: DE, FR, EN, IT, ES
• Interface standard: CAN-Bus
• Tray, size
E (420 x 420mm)
EX (500 x 420mm)
F (800 x 420mm)
• Loading maximum: up to 25 kg
• Setting, digital: 1 rpm
• Control accuracy, absolute: +/- 0.5 rpm
• Timer: 1 s – 999 h
• Acceleration: controlled
• Active break: adjustable
• Stop on position: adjustable
• Shaking motion
orbital, Ø 12.5 mm* 20...500 rpm
orbital, Ø 25.0 mm* 20...400 rpm
orbital, Ø 50.0 mm* 20...300 rpm
• Material: Stainless steel cover
Options & Accessories
Interface, optional: USB, Ethernet, digital, analogue
IQ/OQ-Documentation: available
Dual table: available

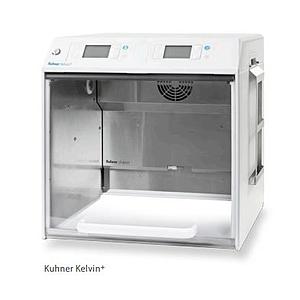

Technical data Kuhner Kelvin+
• Temperature minimum: ambient + 3°C
• Temperature maximum: 60°C
• Temperature distribution: +/- 0.5°C (at 37°C, 100 rpm)
• Principle of sensor: Pt-100
• Power of heating: 400W
• Air circulation: 190 m3/h
• Power consumption typical: approx. 130W
• Gas volume: 130 L
• Weight shaker: 28 kg
• Illumination: LED
• Ambient temperature: 10 up to 35°C
• Operating menu in: DE, FR, EN, IT, ES
• Interface standard: CAN-Bus
• Tray, size: E (420 x 420mm)
• Setting, digital: 0.1°C
• Control accuracy, absolute: <+/- 0.3°C
• Timer: 1 s – 999 h (shaker only)
• Material: inner chamber stainless steel, outer chamber PUR (insulation), door polycarbonate
Options & Accessories
• Light shading plate
• Shelf
• Interface, optional
• Stacking adapter
• IQ/OQ-Documentation
• Dual table

ISF1-Z incubator shaker - the perfect solution for shaken cultivation processes
The ISF1-Z incubator shaker is suitable for applications in laboratories, research centers and production facilities. The ISF1-Z complies with GMP (good manufacturing practice) requirements and regulations. It offers a large shaking capacity with a small footprint and many features allowing straightforward, safe handling of any culture or product. The incubator shaker is applicable for microbial, plant, human and animal cell cultures.
Performance characteristics of ISF1-Z models
• Large shaking capacity with small footprint
• Hygienic design according to DIN EN ISO 14159
• Improved direct drive: stronger, higher shaking frequencies, very long lasting
• Up to three machines can be stacked without additional components: incubators ISF1-X/W and new ISF1-Z mixable in stack
• Flexible and retrofittable: all options and accessories applicable
• Fast, direct information through parallel and clear display of all process parameters
ISF1-Z Models
• The ISF1-Z incubator shaker is available in three different models: ISF1-Z, ISF1-Z EcoDew and ISF1-Z Peltier. Each model provides distinct features and is additionally available with CO2 control for cell culture processes.
• The ISF1-Z is the basic version of Kuhners stackable incubator shaker with temperature control (heating).
100% stainless steel for easy cleaning
• The ISF1-Z is available in a 100% stainless steel finish. It can either be painted white or have a processed stainless steel look. Take a look at the video to see the advantages of having stainless steel inside and outside the shaker.
Quality
• The improved maintenance-free direct drive of the ISF1-Z is stronger, offers higher shaking frequencies and has a longer lifespan than ever. It guarantees accurate control and low energy consumption/heat dissipation even at high speeds. Kuhner’s direct drive system and the newly designed shaking table allows the shaking diameter to be changed at any time – quickly and easily. Different fixed shaking diameters (3, 6, 9, 12.5, 19, 25, 50, 70 mm) are adjustable. And even a stepless adjustment is available as an option.
• All ISF1-Z components are designed for durability and reliability. A Kuhner shaker is a cost effective investment in quality backed with a five year warranty.
Hygienic design
• The ISF1-Z is made of stainless steel inside and outside for easy and fast cleaning. The hygienic design complies with GMP requirements. The interior was designed according to DIN EN ISO 14159. It has rounded corners and a drain at the back for quick removal of any unwanted liquids. The direct drive system is completely covered and therefore protected from spills. The incubator chamber can be cleaned with chemicals or sterilized using optional UV lighting.
A system that grows with your needs
• Up to three ISF1-Z incubators can be stacked providing more shaking capacity without taking up more floor space in the lab. Stacking is a simple procedure without the need for special tools or stacking kits. Each machine operates independently. The ISF1-Z incubator shakers are mixable in stack with ISF1-X/W incubators.
Options, accessories, and more
• Numerous options and accessories are available for the ISF1-Z incubator shaker to fulfill any need of our customers regarding cultivations in shaken bioreactors. Moreover, all accessories are interchangeable between the new ISF1-Z incubators and its predecessors ISF1-X/W. The ISF1-Z offers even more interior space than its predecessor ISF1-X, e.g. to accommodate particularly big shake flasks. The ISF1-Z has clearly arranged displays on the front side (e.g. for shaking speed) with color change and an acoustic signal when an error/alarm occurs.
• Additionally, a fix or a tilting touchscreen version with our Kuhner Insight software is available. Serial interfaces (e.g. CAN) are arranged on the front side and the sensors in the inside are also easily accessible for a fast and comfortable work flow. The interior LED light is a color neutral light with low energy dissipation.
Detailed technical data can be found in the product catalog.

Space saving stackable incubator shaker
The Kuhner LT-X (Lab-Therm) incubator shaker has the same capabilities as the larger ISF1-X and ISF4-X models. The incubator shaker was specially developed to address the shaking needs of the biotechnology and pharmaceutical industries. The practical size of the LT-X means it will fit in any laboratory.
Performance characteristics
• Fits into any laboratory
• Used in biotech and pharmaceutical industries
• Accepts flasks up to 6 litres
• Two units can be stacked without the need for special kits or tools
• Humidity, CO2 and O2 control available
• Extra space
Exceptional chamber height means flasks up to 6 litres capacity can be accommodated. If using smaller flasks, there is sufficient head height to fit one or two stationary trays above the shaking table. It is also possible to stack two LT-X together without the need for special kits or tools.
• Functionality through direct drive
The maintenance-free direct drive guarantees long and economical performance from the LT-X. The shaking diameter can be changed at any time thanks to Kuhner’s unique direct drive system. The integrated drive is protected from spills and the all stainless steel interior has a drain at the back for any unwanted liquids. The chamber can be cleaned using chemicals or sterilized with optional UV lighting.
• Safety and quality
A door switch ensures the motor stops as soon as the door is opened. After closing the door properly, the motor restarts. The safety, reliability and quality of our shakers are of personal concern to everyone at Kuhner which is why all our machines are supplied with a 5 year warranty.
• Configuration
The LT-X can be equipped with options for CO2, O2,controlled humidity, LED photosynthesis, UV lighting and much more. It is now also possible to integrate measuring data from Kuhner shakers with your company’s own network using Kuhner Insight software together with the NET-60 interface.
Detailed technical data can be found in the product catalog.

Large incubator shaker with a minimal footprint and up to five independent shaker units
The Kuhner ISF4-X incubator shaker offers large shaking capacity with temperature, humidity and CO2 control all available. The shaker cabinet can incorporate four or even five independent shaking units which are height adjustable. The shaking diameter and speed of each unit can be individually selected. Standard diameters are 12.5, 25 and 50 mm. Other shaking diameters are possible.
Performance characteristics
• All stainless steel interior
• Large shaking capacity
• Easy access to contents
• Each shaking unit has its own direct drive
• Door heating, with controlled humidity
• Guaranteed quality
When designing the ISF4-X special emphasis was placed on reliability and durability. The high quality of Kuhner shaking machines is backed with a five year warranty.
• Safety and convenience
The large door opening of the ISF4-X allows easy access to the shake flasks inside. The doors are fitted with a safety switch to ensure shaking stops when the doors are opened.
The large windows allow a clear view of incubator’s contents. The entire ISF4-X chamber is made of stainless steel making sterilisation with chemicals possible.
• Energy saving operation
The highly efficient direct drive system means economic low power consumption and the cooling system also operates with energy efficiency.
• Electrical protection
Automatic supervision of the mains voltage protects the shaker and in the event of a voltage spike the unit disconnects from the mains. The machine resumes operation at the set values once power is restored.

Orbital shaken benchtop bioreactor for single-use bags
The SB10-X is an orbital shaken benchtop bioreactor system for the cultivation of human, mammalian and plant cells in a single-use bag. It consists of six modules (excluding the bag) and has a working volume from 4 litres up to 12 litres. The SB10-X can be used in research, process development or as a pilot scale bioreactor.

Performance characteristics

• Cultivation of human, mammalian and plant cells

• Fast, simple set up

• Easy scale-up

• Online measurement and control of pH and DO

• Three different types of single-use bags available
Single-use bag for a fast and simple set up
The cylindrical vessel accepts a single-use 3D bag. This bag requires no additional mixing device, enables quick set up times and eliminates elaborate cleaning and sterilising procedures. Various ports are incorporated to allow feeding, inoculation, harvesting and sampling. The standard bag has built-in optical sensors for pH/DO allowing online measurement and control of pH and DO in the medium. Two other bag types are available: a basic single-use bag with no optical sensors and a perfusion bag for ATF and TFF perfusion.

• Orbital motion
The orbital motion of the SB10-X ensures efficient liquid mixing. It facilitates high oxygen transfer rates with low shear forces. Mechanical stress on the cells is reduced thanks to bubble-free surface gassing with almost no frothing. This motion is particularly suitable for microcarrier cultivation. The SB10-X uses the unique Kuhner direct drive which is very robust and provides accurate control of the orbital speed.

• Trouble free scale-up
The SB10-X fills a gap in the scale-up chain from commonly used single-use flasks all the way up to 50 L and 200 L bioreactors. The consistent hydrodynamics of shaken bioreactors provide reproducible cultivation conditions throughout the volume range. The culture from the SB10-X can serve as a preculture for the SB50-X and SB200-X. The SB10-X can also be used as a pilot scale bioreactor.

• Heating and online pH & DO measurement
The tray module, which is fixed onto the ES-X shaker module, contains integrated heating and the connections for online pH and DO measurement.

•Vessel module
Special emphasis has been placed on developing a user-friendly vessel module. The vessel together with its bag can be easily detached by the user and carried to the clean bench.

• Filter heater
A filter heater for one exhaust filter is placed above the vessel module. The magnetic mounting makes handling the filter heater very simple and allows its location in various places. The filter heater combats water vapour condensation in the outlet air preventing blockages in the membrane.

• Control unit and software
The compact and functional design of the control unit provides easy handling and monitoring of the bioprocess parameters. The control unit has an integrated and adjustable 12” touch screen with USB and Ethernet connections. The Kuhner Insight application software for data recording, calibration, programming and controlling is user-friendly and 21 CFR Part 11 compliant. Control of pH/DO, medium temperature, shaking frequency and gas flow rate and mixture is possible.

• Pumping system
The control unit incorporates three peristaltic pumps which allow aseptic fluid management. This enables simple regulation of the pH-value, feeding and the transfer of the culture media (scale-up or processing).

• Gas mixing (FlowCon)
The SB10-X control unit has an integrated gas mixing device (FlowCon).
Whether stabilizing the pH with CO2, or preventing low dissolved oxygen concentrations, the gas mixer meets all user needs. Four mass flow controllers (N2, O2, CO2 and air or gas mixture) ensure highly accurate and reproducible gas mixing. An integrated pressure sensor prevents over pressure in the bioreactor. Step limits can be freely programmed by the user. Integrated air filters and back pressure valves ensure interference free and long operating times for the FlowCon.

Detailed technical data can be found in the product catalog.
