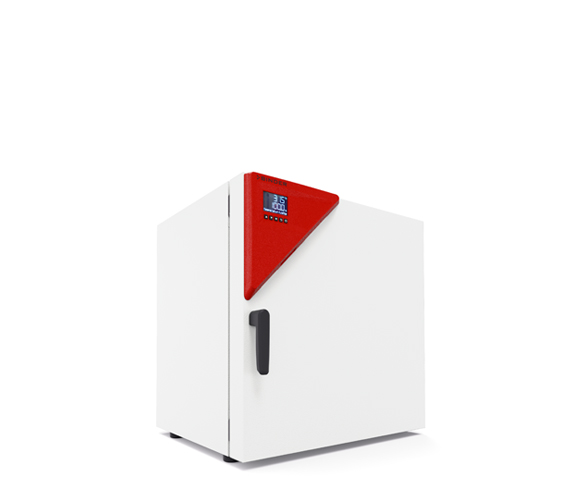

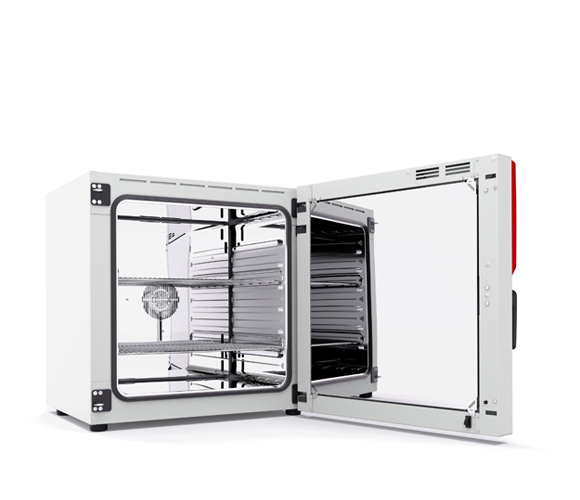

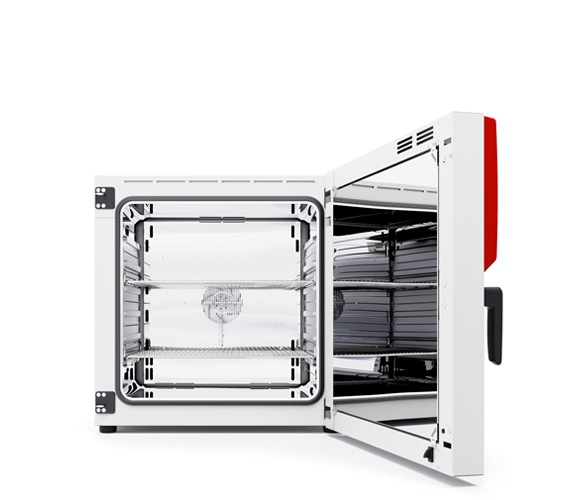

Binder FP 115 drying and heating chamber with forced convection and program functions
Product benefits
• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
• Advanced programming options
Main features
• Temperature range: +10 °C…300 °C
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with interval and real-time programming
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
• Ergonomic handle design
• Computer interface: Ethernet
• Internal data logger, measured values can be read out in open format via USB
A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.
Product benefits
• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
• Advanced programming options
Main features
• Temperature range: +10 °C above ambient temperature up to +300 °C
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with interval and real-time programming
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
• Ergonomic handle design
• Computer interface: Ethernet
• Internal data logger, measured values can be read out in open format via USB
Specifications for Binder FP 115 drying and heating chamber with forced convection and program functions
| Interior volume (liter) | 116 |
| Internal dimension W x H x D (mm) | 550x550x383 |
| Number of shelves (std./max.) | 2/5 |
| Rated voltage (V) | 230 or 120 |
