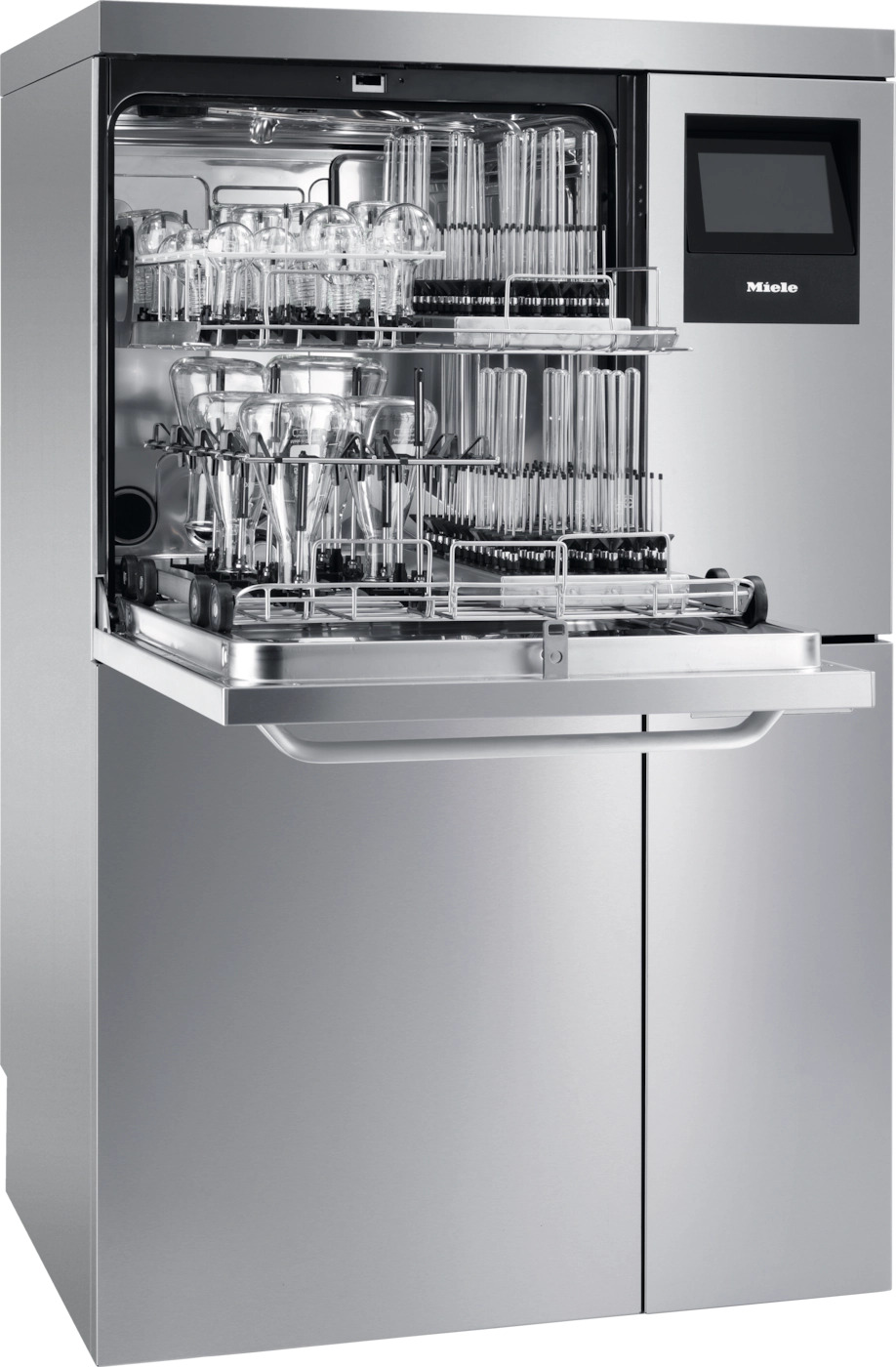

1. Miele PLW 8636 [LAB] SST laboratory washer
Public pricelist HUF

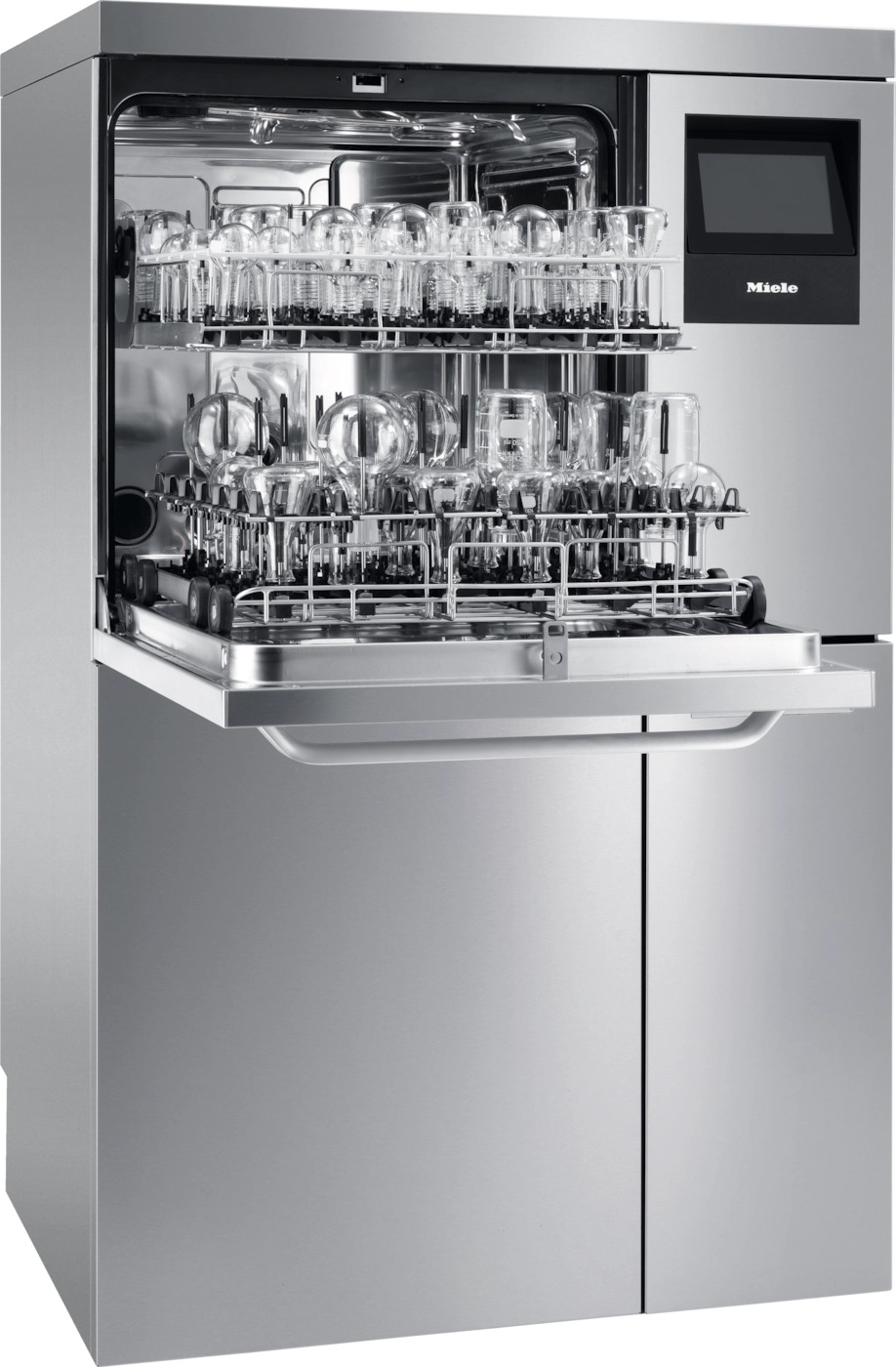

Miele PLW 8636 [LAB] SST laboratory washer

  • Capacity
  • Product type
  • Brand
  • Chamber volume (liter)
  • Device width (cm)
  • Drying method
  • Oil and grease-resistant seals
  • Number of programs
  • Number of free program positions
  • Drying unit
  • Heating
  • DI-water connention
  • Steam condenser
  • Drain pump

This combination does not exist.

Enquiry

Laboratory washer w. liquid dispensing, DryPlus and oil-resistant door seals
• Construction type: Freestanding, wide
• Casing: Stainless Steel
• Number of wash levels: 2
• Salt container in the wash cabinet ceiling
• Electric door lock

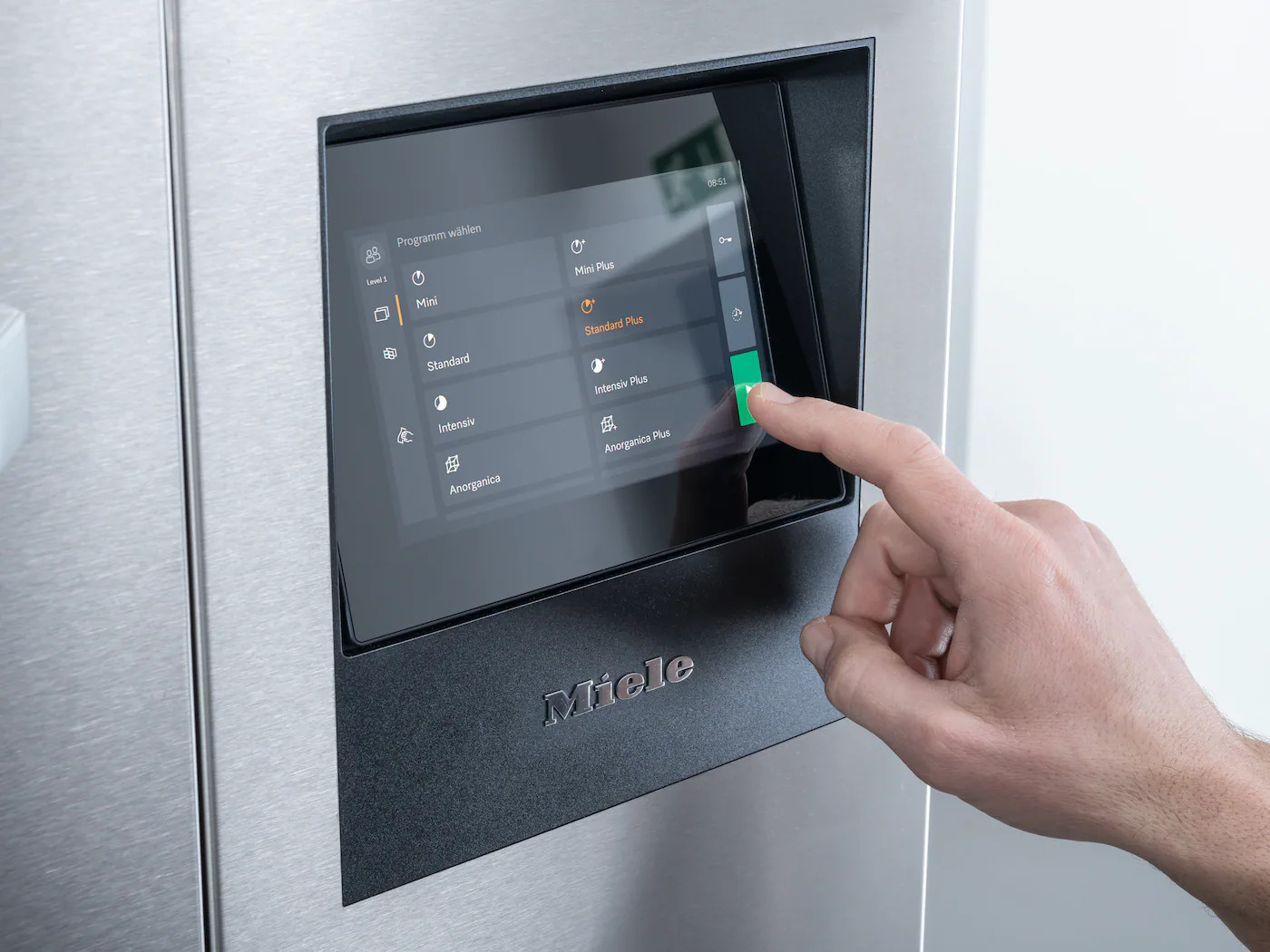

Control system
• Control type: SPS
• Programmable
• Selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,2

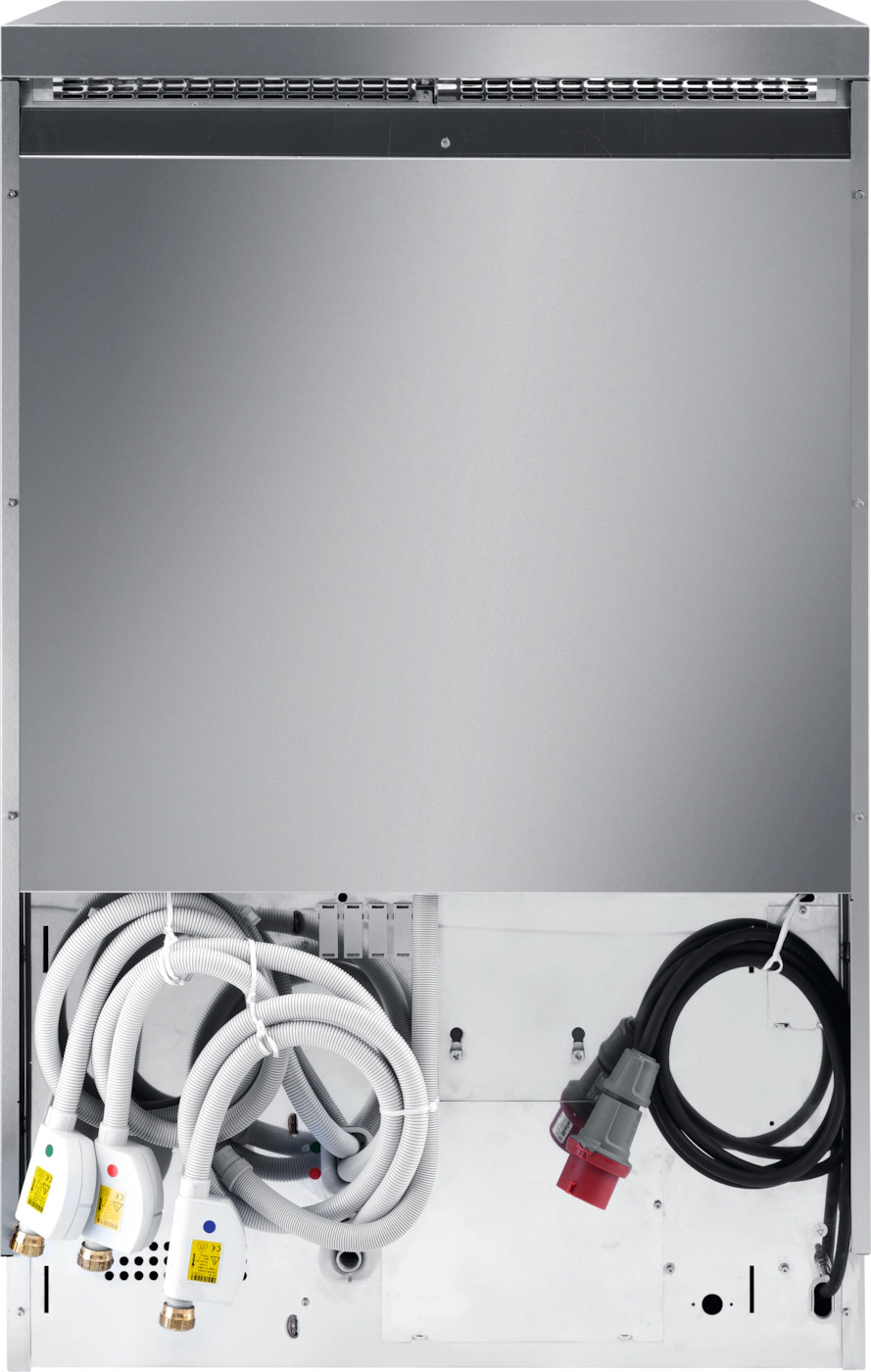

Water connection/drainage
• Cold water [number]: 1
• Cold water for steam condenser: 2
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 66
• HEPA filter class H14, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: 99,99,
• Heat dissipation into the room in MJ/h: 4,32
Features

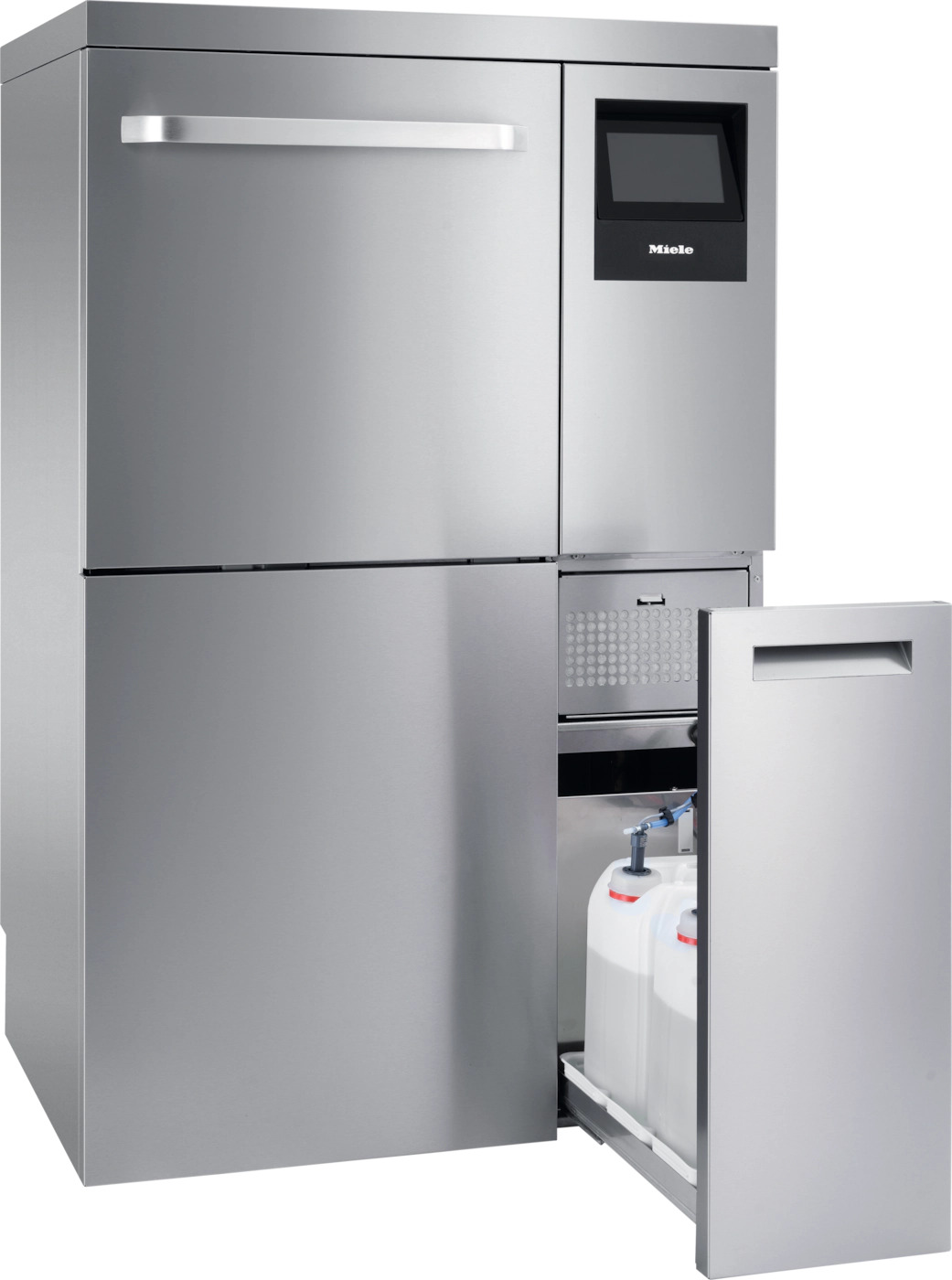

• 2 integrated dispenser pumps and containers for liquid media
• Additional integrated dispensing pump 5–10 l (optional)
• Suction lance for media canisters 10–20 l (optional)
• Automatic empty level detection
• Additional integrated dispenser pumps (optional)
• Dispensing monitoring with oval-wheel counter (optional)
• Connection for external recycling tank (option)
• Spray pressure monitoring, redundant temperature monitoring
• Triple water filter system
• Interface for process documentation
• Pump with high circulation rate
• Load carrier – direct coupling
• USB Customer Service interface
• Setting options for process chemicals (3 x 5 l / 2 x 10 l)
• Wash cabinet seamlessly welded using laser technology
• Heater elements outside wash cabinet
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• Ethernet interface

Laboratory washer w. liquid dispensing, DryPlus and oil-resistant door seals
• Construction type: Freestanding, wide
• Casing: Stainless Steel
• Number of wash levels: 2
• Salt container in the wash cabinet ceiling
• Electric door lock
Control system
• Control type: SPS
• Programmable
• Selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,2
Water connection/drainage
• Cold water [number]: 1
• Cold water for steam condenser: 2
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 66
• HEPA filter class H14, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: 99,99,
• Heat dissipation into the room in MJ/h: 4,32
Features
• 2 integrated dispenser pumps and containers for liquid media
• Additional integrated dispensing pump 5–10 l (optional)
• Suction lance for media canisters 10–20 l (optional)
• Automatic empty level detection
• Additional integrated dispenser pumps (optional)
• Dispensing monitoring with oval-wheel counter (optional)
• Connection for external recycling tank (option)
• Spray pressure monitoring, redundant temperature monitoring
• Triple water filter system
• Interface for process documentation
• Pump with high circulation rate
• Load carrier – direct coupling
• USB Customer Service interface
• Setting options for process chemicals (3 x 5 l / 2 x 10 l)
• Wash cabinet seamlessly welded using laser technology
• Heater elements outside wash cabinet
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• Ethernet interface

Specifications for Miele PLW 8636 [LAB] SST laboratory washer

Capacity 128 laboratory glassware
Chamber volume (liter) 146
Device width (cm) 90
Oil and grease-resistant seals yes
Number of programs 24
Number of free program positions 50
Drying unit yes
Heating electrically
DI-water connention yes
Steam condenser yes
Drain pump yes
