Düperthal Type 90 BATTERY XL safety storage cabinet

Safety storage cabinet for storing batteries with 90 minutes fire resistance.

%
DÜPERTHAL TYPE 90 BATTERY line XL safety storage cabinet
Safety storage cabinet for charging and storage of lithium-ion-batteries
The BATTERY line type safety storage cabinets are equipped with a varied range of additional functionalities to increase safety and working convenience. In addition, all safety-related components are not subjected to day-to-day dynamic loads and are thus free of attrition and mechanical wear.
• Width: 1194 mm
• Depth: 612 mm
• Height: 2045 mm
• Weight: 520 kg
• Classical door technology (door handle)
• For the storage of lithium-ion batteries
• Type-tested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, and DIN 31000 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
Construction and colour:
• Outer carcass sheet steel, RAL 7035
• Doors sheet steel, PANTONE 389 C
• Inner carcass decor panels, RAL 7035
Fittings and features:
• Doors remain open in any position
• Doors close automatically in case of fire
• Cylinder locks for access security
• Backdraftlock after inside fire
• bottom tray sheet steel, RAL 7035
• 4 storage levels sheet steel, RAL 7035
• 1 storage area per storage level
• exhaust air connection on the cabinet roof
• visual inspection of the ventilation opening
• earthing connection on the cabinet roof
• interior fittings grounded to carcass
• adjustable feet for level adjustment
%

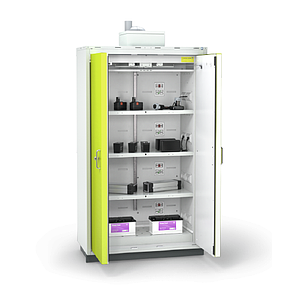

DÜPERTHAL BATTERY station XL
Classical door technology (door handle) For the storage and charging of lithium-ion batteries Typetested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, DIN 31000, and IEC 61439 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
Construction and colour
• Outer carcass sheet steel, RAL 7035
• Doors sheet steel, PANTONE 389 C
• Inner carcass decor panels, RAL 7035
• Load adapter (tested), RAL 7035
Fittings and features
• Doors remain open in any position
• Doors close automatically in case of fire
• Cylinder locks for access security
• Backdraftlock after inside fire
• Bottom tray sheet steel, RAL 7035
• 4 storage levels sheet steel, RAL 7035
• 1 storage area per storage level
• 4 sockets per storage area
• Exhaust air connection on the cabinet roof
• Visual inspection of the ventilation opening
• Earthing connection on the cabinet roof
• Interior fittings grounded to carcass
• Adjustable feet for level adjustment
• Set-back base, RAL 7015
• Plug ready connection to a power supply
• Connectiontype: CEE L+N+PE 6h
%

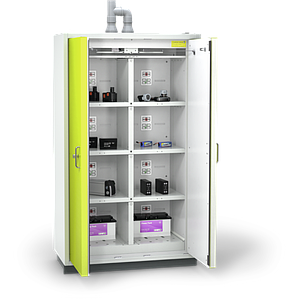

DÜPERTHAL TYPE 90 BATTERY line Standard XL safety storage cabinet - lithium ion batteries
For the storage of lithium-ion batteries
• Type-tested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, and DIN 31000 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
• Outer WxDxH: 1194x612x2045 mm
• Supply voltage: no charging system
• Outer carcass sheet steel, RAL 7035
• Doors sheet steel, PANTONE 389 C
• Inner carcass decor panels, RAL 7035

Fittings and features:
• Doors remain open in any position
• Doors close automatically in case of fire
• Cylinder locks for access security
• Backdraftlock after inside fire
• Bottom tray sheet steel, RAL 7035
• 4 storage levels sheet steel, RAL 7035
• 2 storage area per storage level
• Exhaust air connection on the cabinet roof
• Visual inspection of the ventilation opening
• Monitoring (mechanical) at the backdraft lock, prepared for DÜPERTHAL connect
• Switch contact (potential-free)
• Earthing connection on the cabinet roof
• interior fittings grounded to carcass
• Adjustable feet for level adjustment
• Set-back base, RAL 7015
