Injector modules

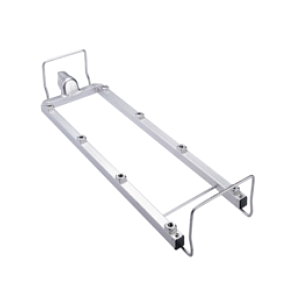

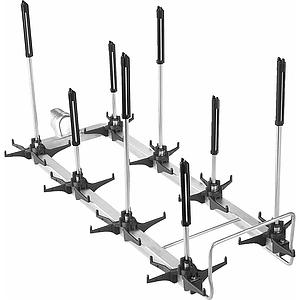

% Miele A 300/2 module For optimum loading of laboratory glassware – can be equipped with 8 nozzles. • Area of application: reprocessing laboratory glassware • Suitable for lab. glassware incl. Erlenmeyer and round flasks. • Module w/o injector nozzles – equipped based on individual needs • For up to 8 injector nozzles . Particularly suitable for nozzle diameters of 6 mm, e.g. A 840 or A 841, other diameters are possible depending on the application. • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. • Nozzle spacing 118 mm across the width, 118 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 8604 PLW 8683 PLW 8683 CD PLW 8693 PLW 7111	% Miele A 300/3 module For optimum loading of laboratory glassware – can be equipped with 8 nozzles. • Area of application: reprocessing laboratory glassware • Suitable for lab. glassware incl. Erlenmeyer and round flasks. • Equipped with 4 A 840 nozzles and 4 A 841 nozzles Size of A 840 injector nozzle: Ø 6 mm, height 130 mm Size of A 841 injector nozzle: Ø 6 mm, height 210 mm • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. • Nozzle spacing 118 mm across the width, 118 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 8604 PLW 8683 PLW 8683 CD PLW 8693 PLW 7111	% Miele A 301/4 module For optimum loading of laboratory glassware – can be equipped with 18 nozzles. • Area of application: reprocessing laboratory glassware • Suitable for lab. glassware incl. Erlenmeyer and round flasks. • Module w/o injector nozzles – equipped based on individual needs • For up to 18 injector nozzles. (Particularly suitable for nozzle diameters of 4 mm, e.g. A 842 or A 843; other diameters are possible depending on the application.) • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. • Nozzle spacing 78 mm across the width, 78 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 8604 PLW 8683 PLW 8683 CD PLW 8693 PLW 7111	% Miele A 301/5 module For optimum loading of laboratory glassware – can be equipped with 18 nozzles. • Area of application: reprocessing laboratory glassware • Suitable for lab. glassware incl. Erlenmeyer and round flasks. • Equipped with 9 A 842 nozzles and 9 A 843 nozzles Size of A 842 injector nozzle: Ø 4 mm, height 90 mm Size of A 843 injector nozzle: Ø 4 mm, height 185 mm • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. • Nozzle spacing 78 mm across the width, 157 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 8604 PLW 8683 PLW 8683 CD PLW 8693 PLW 7111

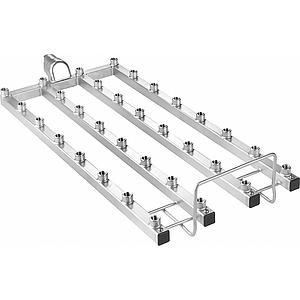

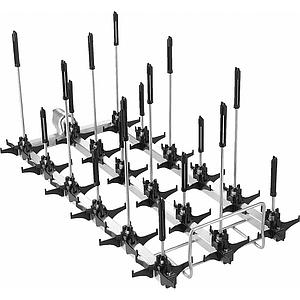

% Miele A 302/2 injector modul For optimum loading of laboratory glassware – can be equipped with 32 nozzles. • Area of application: reprocessing laboratory glassware • Suitable for lab. glassware incl. Erlenmeyer and round flasks. • Module w/o injector nozzles – equipped based on individual needs • For up to 32 injector nozzles (Particularly suitable for nozzle diameters of 2.5 mm, e.g. A 844 or A 845; other diameters are possible depending on the application.) • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. • Nozzle spacing 60 mm across the width, 57 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 8604 PLW 8683 PLW 8683 CD PLW 8693 PLW 7111	% Miele A 302/3 module For optimum loading of laboratory glassware – can be equipped with 32 nozzles. • Area of application: reprocessing laboratory glassware • Suitable for lab. glassware incl. Erlenmeyer and round flasks. • Equipped with 16 A 844 nozzles and 16 A 845 nozzles Size of A 844 injector nozzle:– Ø 2.5 mm, height 80 mm Size of A 845 injector nozzle:– Ø 2.5 mm, height 125 mm • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. • Nozzle spacing 60 mm across the width, 57 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 7111	% Miele A 303 module For the optimum loading of up to 98 pipettes. • Area of application: reprocessing pipettes/vials • Suitable for 98 measuring and full pipettes, for example • Height of holding frame 150 mm • 1 unit can be inserted into each of the baskets A 150 and APLW 106 • Vertical clearance without upper basket: 450 mm (with A 150 lower basket) Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8583 PG 8583 CD PG 8593 PLW 7111	% Miele A 304 module For the optimum loading of up to 98 vials. • Area of application: reprocessing pipettes/vials • Suitable for 98 centrifuge tubes, phials, test tubes, for example • The loading heights differ depending on the positioning Loading height: Loading height in lower basket without upper basket 428 mm, in lower basket with upper basket 172 mm, in upper basket 172 mm. • 1 unit can be inserted into each of the baskets A 100, A 150 and APLW 106

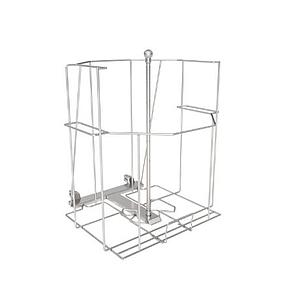

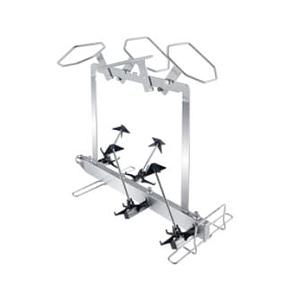

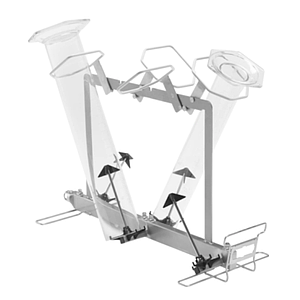

% Miele A 306/1 module Module for the optimum loading of large-volume laboratory glassware. • Suitable for 4 1–2 litre measuring cylinders, high shape • Suitable for 2 1–2 litre measuring cyl., low shape & 2 high shape • Plastic-coated contact surfaces • Measuring cylinders even removable when module is in machine • Maximum length of measuring cylinders: 500 mm • Up to 2 modules can be inserted in the baskets A 150 and APLW 106 ( it is not possible to use an upper basket at the same time). Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8583 PG 8583 CD PG 8593 PLW 7111	% Miele A 312 module Module For reprocessing viscometers. • Suitable for up to 8 viscometers • Equipped with 8 x A 867 special nozzles • Nozzle spacing 118 mm across the width, 118 mm across the depth Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8583 PG 8583 CD PG 8593 PLW 7111	% Miele A 313 module For reprocessing large-volume laboratory glassware. • Area of application: reprocessing laboratory glassware • Laboratory flasks, up to 10 l • Round flasks, up to 6 l • Erlenmeyer flasks, up to 5 l • Measuring flasks, up to 5 l • Can be equipped with nozzles & holders based on individual needs. (The maximum diameter of the load depends on the number of nozzles used. Depending on the load, the following nozzles are required: A 846, A 847, A 848) • Equipped with 5 injector positions for 2 or 3 load items Machine affiliation: PLW 8636 [LAB / LAB MON] PG 8504 PG 8583 PG 8583 CD PG 8593 PLW 7111	% Miele A 605 module Module for optimum reprocessing of vials and test tubes, etc. • Equipped with 98 injector nozzles • Max. H 160 mm, max. Ø 20 mm • For use in A 503 mobile unit Machine affiliation: PLW 8615 PLW 8616 PLW 8617

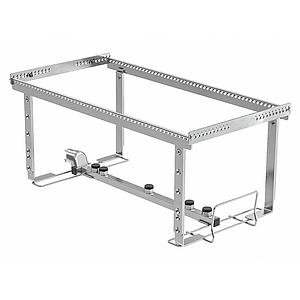

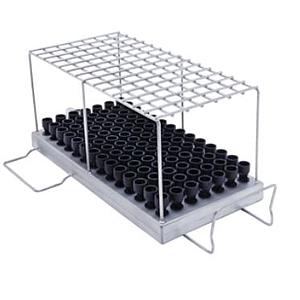

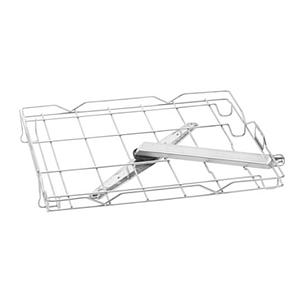

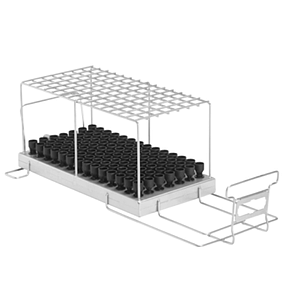

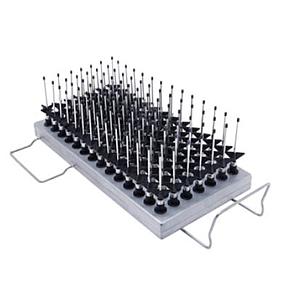

% Miele A 606 module Module for the use of e.g. lab glassware inserts on the top level of A 503 mobile units. • Area of application: reprocessing laboratory glassware • With spray arm Machine affiliation: PLW 8615 PLW 8616 PLW 8617	% Miele A 612 module Module for the optimum reprocessing of large-volume laboratory glassware. • Can be equipped with injector nozzles based on individual needs The maximum diameter of the load items depends on the number of nozzles used. Nozzles required depending on items: A 846, A 847 and/or A 848. • Suitable for 2–10 l laboratory flasks, 2–6 l round flasks The maximum diameter of the wash items depends on the number of nozzles used. Nozzles required depending on items: A 846, A 847, and/or A 848. • Suitable for 2–5 l Erlenmeyer flasks, 2–5 l measuring flasks The maximum diameter of the wash items depends on the number of nozzles used. Nozzles required depending on items: A 846, A 847, and/or A 848. • For use in A 503 mobile unit Machine affiliation: PLW 8615 PLW 8616 PLW 8617	% Miele A 613 module Module for the optimum reprocessing of volumetric and measuring pipettes. • Equipped with 98 injector nozzles • Suitable for measuring pipettes with a volume of 1–50 ml. • Suitable for volumetric pipettes with a volume of 1–100 ml. • For use in A 503 mobile unit *(Capacity depends on the maximum diameter of the pipettes.) Machine affiliation: PLW 8615 PLW 8616 PLW 8617	% Miele A 620 module Injector module for the optimum reprocessing of laboratory glassware, 10 injector positions. • Can be equipped with up to 10 nozzles based on individual needs Particularly suitable for nozzle diameters of 6 mm, e.g. A 840 or A 841; other diameters are possible depending on the application. • For use in A 503 mobile unit • Part of the EasyLoad system EasyLoad The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. Machine affiliation: PLW 8615 PLW 8616 PLW 8617
% Miele A 621 module Module for the optimum reprocessing of laboratory glassware, 20 injector positions. • Can be equipped with up to 20 nozzles based on individual needs Particularly suitable for nozzle diameters of 4 mm, e.g. A 842 or A 843; other diameters are possible depending on the application. • Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. Machine affiliation: PLW 8615 PLW 8616 PLW 8617	% Miele A 622 module Injector module for the optimum reprocessing of laboratory glassware, 36 injector positions. • Can be equipped with up to 36 nozzles Particularly suitable for nozzle diameters of 2.5 mm, e.g. A 844 or A 845; other diameters are possible depending on the application. • For use in A 503 mobile unit • Part of the EasyLoad system EasyLoad The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy. Machine affiliation: PLW 8615 PLW 8616 PLW 8617	% Miele A 623 module Module for the optimum loading of measuring cylinders. • Equipped with 4 nozzles • For measuring cylinders with 1–2 l capacity • Pivoting supports for ease of use Machine affiliation: PLW 8615 PLW 8616 PLW 8617	% Miele APLW 215 modul Injector module for the optimum loading of large-volume plastic bottles up to 50 l. • For use on level 1 • Equipped with a special injector nozzle (High cleaning performance: The nozzle has been designed specifically for optimum cleaning of the inside of bottles.) • Equipped with a holding frame • Max. bottle diameter: 380 mm • Bottle height: 560 to 620 mm • Bottle neck diameter: min. 30 mm internal, max. 80 mm external Machine affiliation: PLW 7111
