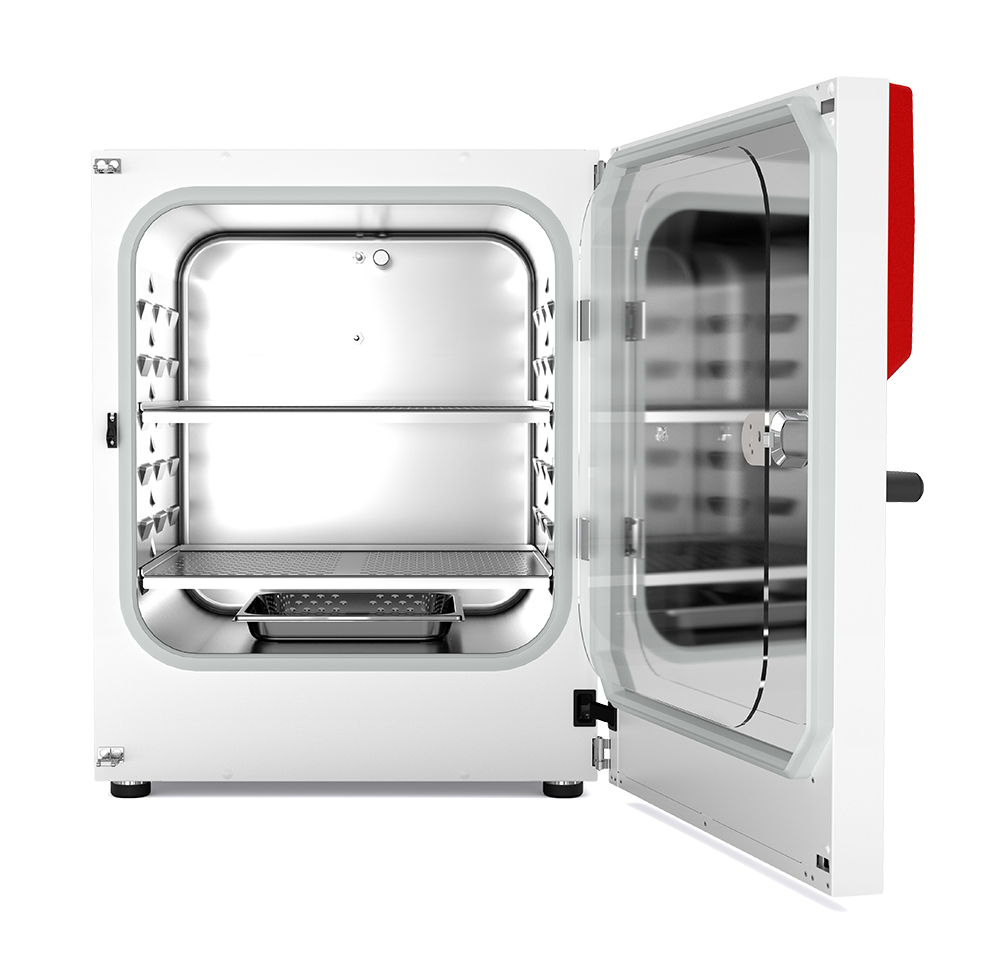

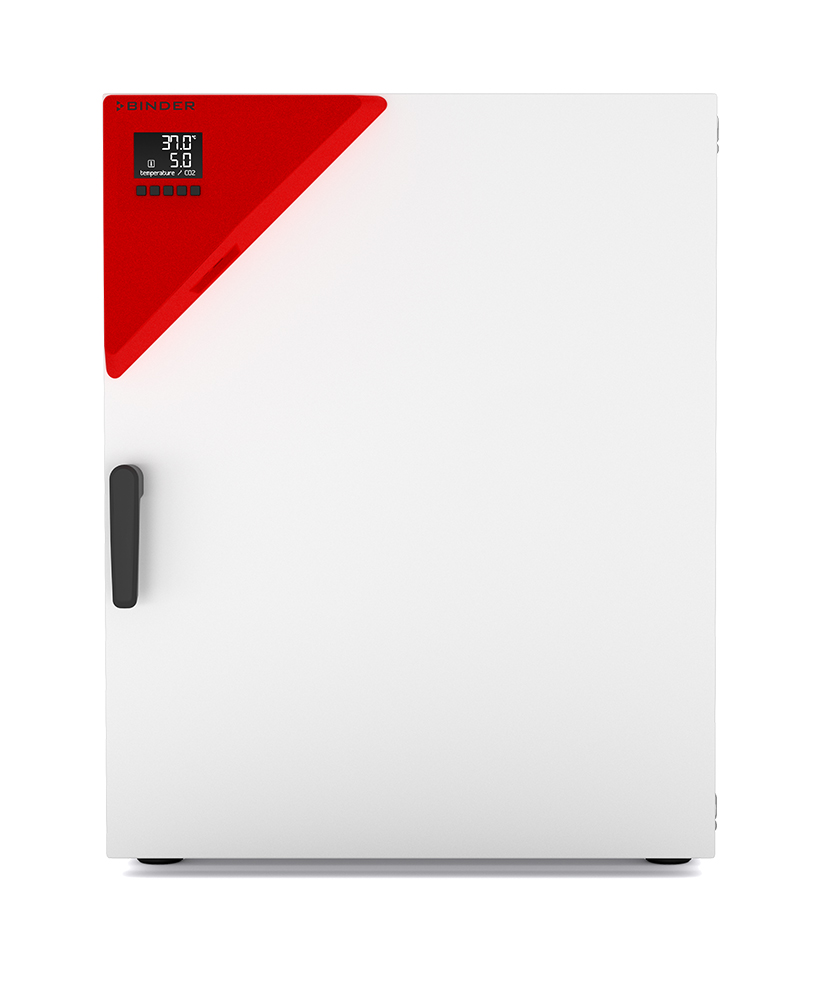

Binder CB-S 170 CO₂ incubator
Product features
• Durable and cost-effective CO₂ incubator for routine cell cultivation applications
• Specifically designed for academic and educational environments
• Reliable pH stability through real-time, drift-free infrared CO₂ measurement
• 180 °C hot-air sterilization for effective contamination protection
• Stable temperature range from +6 °C above ambient temperature up to +50 °C
• 90–95% relative humidity for optimal cell culture conditions
• Venturi-effect CO₂ gas mixing for uniform atmosphere distribution
• Stainless steel inner chamber with safety glass inner door
• LCD display for clear overview of key parameters
• Integrated data logging with data export via USB
• Visual and acoustic alarm system
• Interfaces: Ethernet, USB, and zero-voltage alarm contact
• Stackable design, compatible with CB and CBF models of the same size
The durable and affordable CB-S series incubators are suitable for routine cell cultivation applications in the field of cell production, particularly in academic settings. They are contamination-proof due to 180°C hot air sterilization and reliably pH-stable thanks to the drift-free infrared CO₂ measurements conducted in real time.
BENEFITS
• Safe – cell cultures receive maximum protection against contamination
• Reliable – constant well-being conditions for the cells
• Smart – simple routine cleaning and convenient operation
• Economical – efficient operation without consumables
PRODUCT FEATURES
• Temperature range: +6°C above ambient temperature to +50°C
• Humidity range: 90 to 95% RH
• CO₂ control range: 0 to 20 vol.% CO₂
• Tried-and-tested anti-contamination concept with 180°C hot air sterilization
• Humidification system with condensation protection
• CO2 gas mixing jet with Venturi effect
• CO2 sensor with infrared technology
• LCD to display temperature and CO2 along with additional information and alarms
• Internal data logger, measured values can be read out in open format via USB
• Tightly fitted inner door made of safety glass
• Seamless stainless steel inner chamber
• Perforated shelves, stainless steel
• Troubleshooting system with visual and acoustic alarms
• Interfaces: Ethernet, USB, zero-voltage alarm contact
• Units can be stacked with stacking adapters; the CB-S is suitable for stacking with CB and CBF models of the same size
Specifications for Binder CB-S 170 CO₂ incubator
| Interior volume (liter) | 170 |
| Internal dimension W x H x D (mm) | 600x765x355 |
| Number of shelves (std./max.) | 2/6 |
| Housing dimensions W x H x D (mm) | 680x870x715 |
