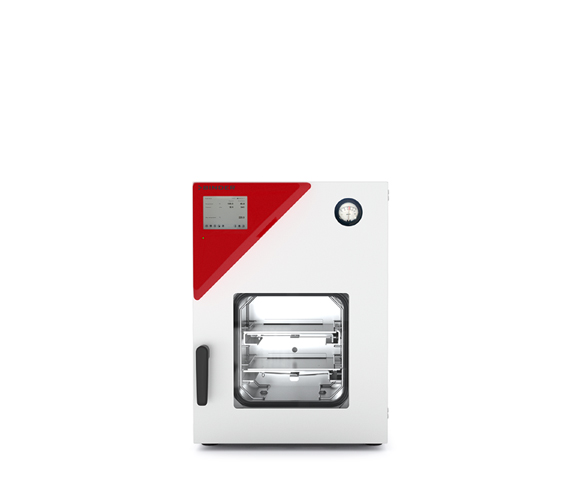

Binder VDL 23 vacuum drying chambers for flammable solvents
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe working thanks to ATEX-compliant safety concept
• Also option of modular complete system with vacuum pump and pump chamber
• Temperature range: +9 °C above ambient temperature to +110 °C
• ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Intuitive touchscreen controller with graphical pressure and temperature display
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• Pressure control device for heating activated from < 100 mbar
• 2 aluminum expansion racks, can be custom-positioned
• Universal connection for ventilation with ambient air or inert gas
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window
• Computer interface: Ethernet
BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe working thanks to ATEX-compliant safety concept

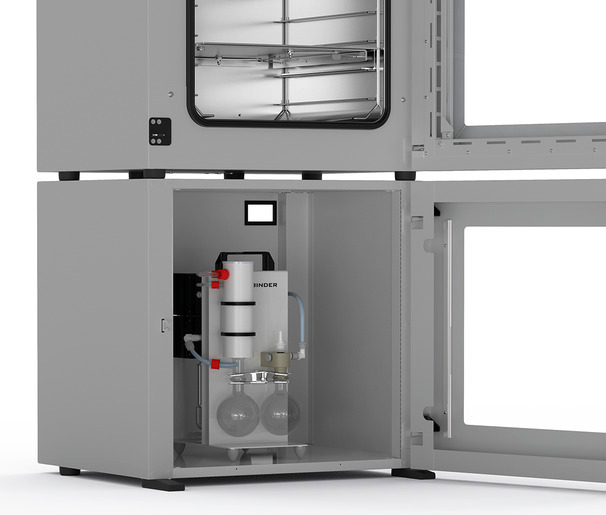

• Also option of modular complete system with vacuum pump and pump chamber
Important characteristics
• Temperature range: +9 °C above ambient temperature to +110 °C
• ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Intuitive touchscreen controller with graphical pressure and temperature display
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• Pressure control device for heating activated from < 100 mbar

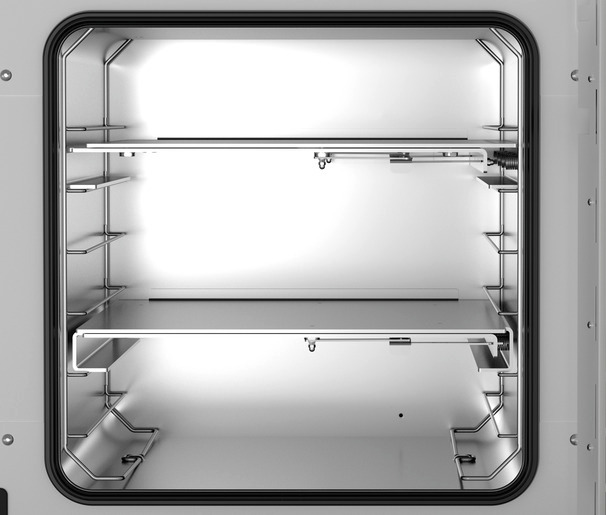

• 2 aluminum expansion racks, can be custom-positioned
• Universal connection for ventilation with ambient air or inert gas
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window
• Computer interface: Ethernet
Optional equipment
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function
Specifications for Binder VDL 23 vacuum drying chambers for flammable solvents
| Interior volume (liter) | 24 |
| Internal dimension W x H x D (mm) | 285x285x295 |
| Number of shelves (std./max.) | 2/4 |
| Housing dimensions W x H x D (mm) | 523x698x413 |
