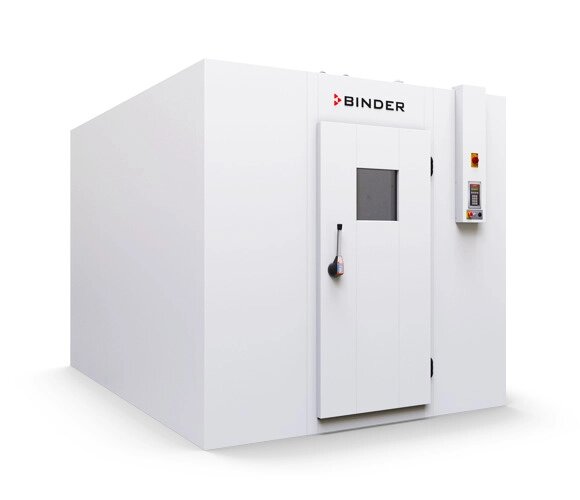

Binder WIC 1 Walk-in-Chamber
In Pharma, the Binder Walk-in Chambers cover long-term and accelerated stability test conditions as specified in the ICH Q1A (R2) for new drug substances and drug products.
The walk-in chambers are designed and produced in Germany, and the temperature and environmental conditioners are made by Parameter Generation and Control in Black Mountain, NC USA. The chambers offer a wide range of features and benefits to perfectly meet requirements in stability testing.
• Long-term and accelerated stability tests according to the guidelines of ICH Q1R (R2)
• Temperature accuracy: ± 1.5°C
• Humidity range (% rH): 20...90
• Humidity accuracy: ± 2.5% RH
• High-efficiency insulation panels with a U-value of 0.21 W/m2K
• Motion sensor LED lighting
• Entire inner chamber made of stainless steel
• External service access to the conditioning unit
• Safety lockable door, which can always be opened from the inside
• Environmentally friendly refrigerant R450A
• Power supply: 230V / 50Hz, 11.5A
• Available accessories: shelving system, ramp
The Binder Environmental Walk-in Chambers with either 6 m², 9 m² or 12 m² internal dimensions and 2,3 m height are an excellent choice for stability testing in Pharma, Food & Beverage, Cosmetics, Material Testing and many other fields of application.
In Pharma, the Binder Walk-in Chambers cover long-term and accelerated stability test conditions as specified in the ICH Q1A (R2) for new drug substances and drug products.
The walk-in chambers are designed and produced in Germany, and the temperature and environmental conditioners are made by Parameter Generation and Control in Black Mountain, NC USA. The chambers offer a wide range of features and benefits to perfectly meet requirements in stability testing.
Product features
• Long-term and accelerated stability tests according to the guidelines of ICH Q1R (R2)
• Temperature accuracy: ± 1.5°C
• Humidity range (% rH): 20...90
• Humidity accuracy: ± 2.5% RH
• High-efficiency insulation panels with a U-value of 0.21 W/m2K
• Motion sensor LED lighting
• Entire inner chamber made of stainless steel
• External service access to the conditioning unit
• Safety lockable door, which can always be opened from the inside
• Environmentally friendly refrigerant R450A
• Power supply: 230V / 50Hz, 11.5A
• Available accessories: shelving system, ramp
Specifications for Binder WIC 1 Walk-in-Chamber
| Working temperature range (°C) | +10...+50 |
| Interior volume (liter) | 5295 |
| Overall dimensions (w x d x h in mm) | 2600x2500x2470 |
| Interior dimensions: (w x d x h in mm) | 2400 x 2300 x 2270 |
| Usable space incl. manufacturer shelf system (l) | 5295 |
| Total interioir volume (m³) | 12,4 |
| Door position | on long side |
