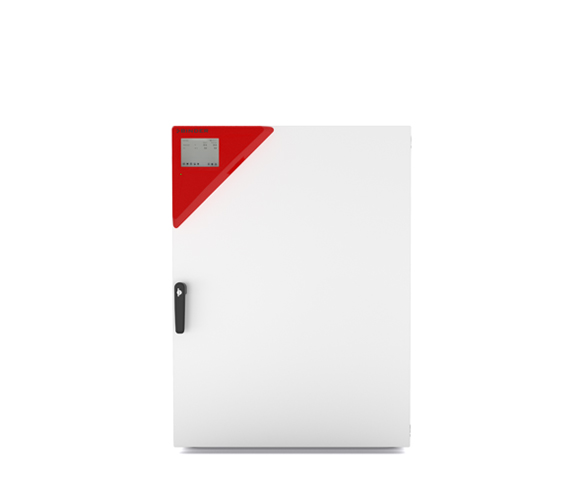

Binder CB 260 CO₂ incubator
The BINDER CB series CO₂ incubator is suitable for all sensitive incubation applications and ensures optimal cell growth.
• Fanless, easy-to-clean hygienic interior without fixtures
• Stable pH values thanks to drift-free CO₂ IR sensor technology
• Low evaporation of the medium due to high levels of humidity and quick recovery time
• Temperature range: +4 °C above ambient temperature to +60 °C
• Humidity range: 90 to 95% RH
• CO₂ control range: 0 to 20 vol.% CO₂
• Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
• Optimized double-pan humidification system with condensation protection
• CO₂ gas-mixing jet with Venturi effect
• Hot-air sterilizable CO₂ sensor with single-beam infrared technology
• Intuitive touchscreen controller
• Internal data recording
• Fail-safe CO₂ system for protecting the pH of cell cultures
• DuoDoor™ system: Unit door and glass door can be opened with one handle
• Tightly fitted inner door made of safety glass
• Troubleshooting system with visual and acoustic alarms
• Interfaces: Ethernet, USB, zero-voltage alarm contact
• Units can be stacked with stacking adapters
The BINDER CB series CO₂ incubator is the premium class among the CO₂ incubators. It is suitable for all sensitive incubation applications and ensures optimal cell growth. A BINDER CB series CO₂ incubator can perform complex cultivation experiments as well as specific enviromental conditions.
Benefits
• Maximum usable space with minimal footprint and excellent ease of use
• Minimum risk of contamination thanks to uncompromising hot-air sterilization
• Fanless, easy-to-clean hygienic interior without fixtures
• Stable pH values thanks to drift-free CO₂ IR sensor technology
• Low evaporation of the medium due to high levels of humidity and quick recovery time
Important characteristics
• Temperature range: +4 °C above ambient temperature to +60 °C
• Humidity range: 90 to 95% RH
• CO₂ control range: 0 to 20 vol.% CO₂
• Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
• Optimized double-pan humidification system with condensation protection
• CO₂ gas-mixing jet with Venturi effect
• Hot-air sterilizable CO₂ sensor with single-beam infrared technology
• Intuitive touchscreen controller
• Internal data recording, can be read out in open format via USB interface
• Fail-safe CO₂ system for protecting the pH of cell cultures
• DuoDoor™ system: Unit door and glass door can be opened with one handle
• Tightly fitted inner door made of safety glass
• Lockable door handle
• Seamless inner chamber made of stainless steel with flanges as shelf support system
• Perforated shelves, stainless steel
• Troubleshooting system with visual and acoustic alarms
• Interfaces: Ethernet, USB, zero-voltage alarm contact
• Units can be stacked with stacking adapters; the CB is suitable for stacking with CBF and CB-S models of the same size
Specifications for Binder CB 260 CO₂ incubator
| Interior volume (liter) | 267 |
| Internal dimension W x H x D (mm) | 620x750x575 |
| Number of shelves (std./max.) | 3/8 |
| Housing dimensions W x H x D (mm) | 748x1024x861 |
| Option model | O₂ control or standard |
