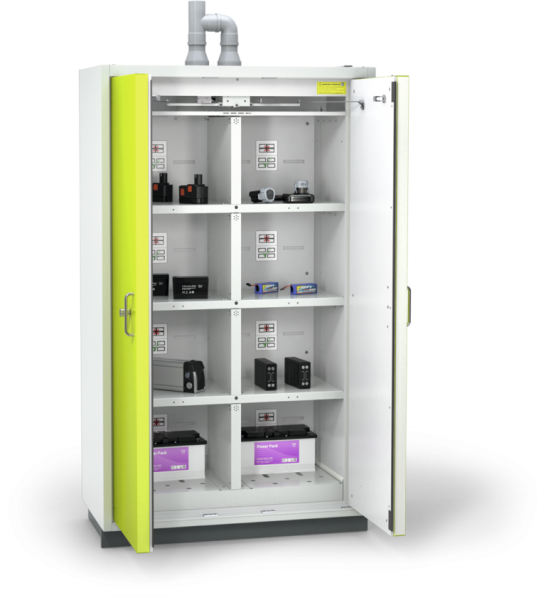

DÜPERTHAL TYPE 90 BATTERY line Standard XL safety storage cabinet - lithium ion batteries
• Type-tested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, and DIN 31000 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
• Outer WxDxH: 1194x612x2045 mm
• Supply voltage: no charging system
• Outer carcass sheet steel, Doors sheet steel, Inner carcass decor panels
• Doors remain open in any position
• Doors close automatically in case of fire
• Cylinder locks for access security
• Backdraftlock after inside fire
• Bottom tray sheet steel
• 4 storage levels sheet steel, 2 storage area per storage level
• Exhaust air connection on the cabinet roof
• Visual inspection of the ventilation opening
• Monitoring (mechanical) at the backdraft lock, prepared for DÜPERTHAL connect
• Switch contact (potential-free)
• Adjustable feet for level adjustment
For the storage of lithium-ion batteries
• Type-tested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, and DIN 31000 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
• Outer WxDxH: 1194x612x2045 mm
• Supply voltage: no charging system
• Outer carcass sheet steel, RAL 7035
• Doors sheet steel, PANTONE 389 C
• Inner carcass decor panels, RAL 7035
Fittings and features:
• Doors remain open in any position
• Doors close automatically in case of fire
• Cylinder locks for access security
• Backdraftlock after inside fire
• Bottom tray sheet steel, RAL 7035
• 4 storage levels sheet steel, RAL 7035
• 2 storage area per storage level
• Exhaust air connection on the cabinet roof
• Visual inspection of the ventilation opening
• Monitoring (mechanical) at the backdraft lock, prepared for DÜPERTHAL connect
• Switch contact (potential-free)
• Earthing connection on the cabinet roof
• interior fittings grounded to carcass
• Adjustable feet for level adjustment
• Set-back base, RAL 7015
Specifications for DÜPERTHAL TYPE 90 BATTERY line Standard XL safety storage cabinet - lithium ion batteries
| Net weight (kg) | 530 |
| Number of shelves | 4 |
| Door technology | classic |
