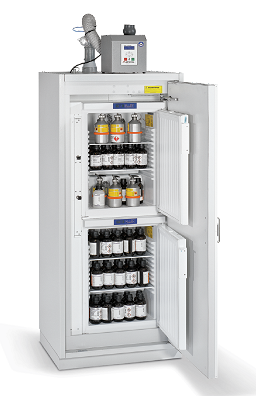

DÜPERTHAL COOL LINE Type 90 XL Dual Safety cabinet with integrated refrigerator
• Refrigerator interiors explosion-proof Ex II 3G, Ex nA II T6, SEV 08 ATEX 0149 X
• 2 refrigerators with temperature range from +3 to +16 degrees Celsius.
• Equipment package: with exhaust air monitoring unit and ventilator
• Refrigerant: R 600a
• Voltage 230 V/ 50Hz
• Outer dimensions: 895 x 745 x 2080 (WxDxH) mm
• Inner dimensions: 455 x 435 x 669 (WxDxH) mm per refrigerator
• Description: Outer carcass of powdercoated sheet steel in RAL 7035 light grey, doors in RAL 9016, traffic white, refrigerator doors white
• Cabinet door with arrest system, thermocouple and lock zylinder, self-closing in case of fire. Door hung right. Refrigerator doors to be opened and closed separately.
• Type testing by MPA/TÜV Süd according to DIN EN 14470-1, GS / CE-mark
• With exhaust air monitor with ventilator 2.00.320C,
• ATEX -conform
• Interior fittings per refrigerator: 3 shelves made of shatterpoof glass 1 bottom tray and 1 perforated sheet insert made of powder-coated sheet steel.
• Please note: In case of a failure of the ventilation system, the refrigerators will be switched off automatically.
Safety cabinet with integrated refrigerators
• 2 refrigerators with temperature range from +3 to +16 degrees Celsius
• Efficient cooling: The cooling compartment has its own door for efficient and economical cooling.
• Refrigerator door is opened/closed separately
• Refrigerant: R 600a
• Maximum fire protection: Maximum safety with Type 90 technology and cooled interior.
• Refrigerator interiors explosion-proof Ex II 3G, Ex nA II T6, SEV 08 ATEX 0149 X
• Self-closing in the event of fire: In case of fire, a thermocouple automatically initiates the uninterrupted closing of the doors. The closure control system ensures that the refrigerator is also self-closing.
• Continuous temperature control: the temperature can be adjusted continuously from +3 degrees °C to +16 degrees °C
• Constant temperatures: The integrated fan ensures stable temperatures.
• Heat energy: Heat energy is extracted via the ventilation openings and the exhaust air (connection) sockets. The air flow is monitored and if the ventilation fails, the refrigerator is automatically switched off. This is done using an ex- haust air monitoring unit for emitting warning signals, which is also available with a ventilator.
• Outer dimensions: 895 x 745 x 2080 (WxDxH) mm
• Inner dimensions per refrigerator: 455 x 435 x 669 (WxDxH) mm
• Voltage: 230 V / 50 Hz
Inner fittings per refrigerator:
• 3 shelves made from shatterpoof glass
• 1 bottom tray: The easily removable bottom tray can be cleaned and discharged without effort.
• 1 perforated sheet insert made of powder-coated sheet steel.
Specifications for DÜPERTHAL COOL LINE Type 90 XL Dual Safety cabinet with integrated refrigerator
| Net weight (kg) | 499 |
| Number of shelves | 8 |
| Door technology | classic |
| Product dimensions (WxDxH) (mm) | 895x745x2080 |
