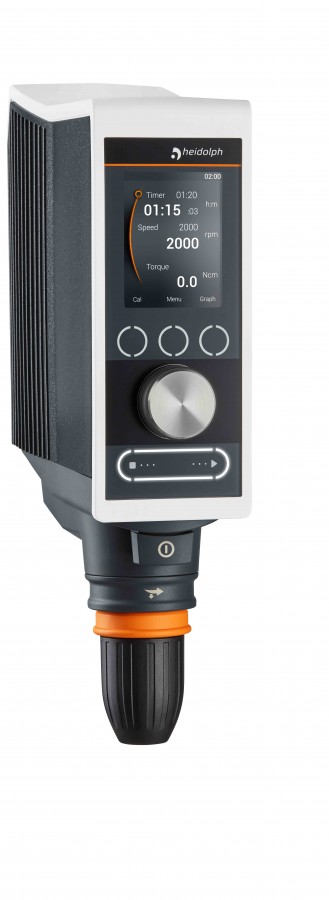

Heidolph Hei-TORQUE Ultimate 100
• The devices of the Hei-TORQUE Precision line are Heidolph high performance overhead stirrers.
• The Hei-TORQUE Value 100 is a overhead stirrer with a wide speed range (10 - 2,000 rpm) and a maximum torque of 100 Ncm. It can powerfully stir viscosities up to 60,000 mPas or volumes up to 50 liters (H2O).
• In addition, the Hei-TORQUE Precision 100 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
• The overhead stirrer Hei-TORQUE Precision 100 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
• Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Precision 100 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
• Technical Data
• Number of speed gears: 1
• Rotation speed range: 10 – 2,000 rpm
• Rotation speed indicator: digital
• color 3.2"
• Speed control: electronic
• Max. torque: 100 Ncm
• Torque indicator: precise value
• Overheat protection: automatic cut-out
• Viscosity max.: 60,000 mPa s
• Stirring cap. (H2O), max.: 50 l
• Throught-shaft design: ✔
• Shaft diameter, max.: 10.5 mm
• Counter/ Timer: ✔
• Analog / digital interface: USB and RS 232
• Power rating motor input: 90 W
• Protection class DIN EN 60529: IP 54
