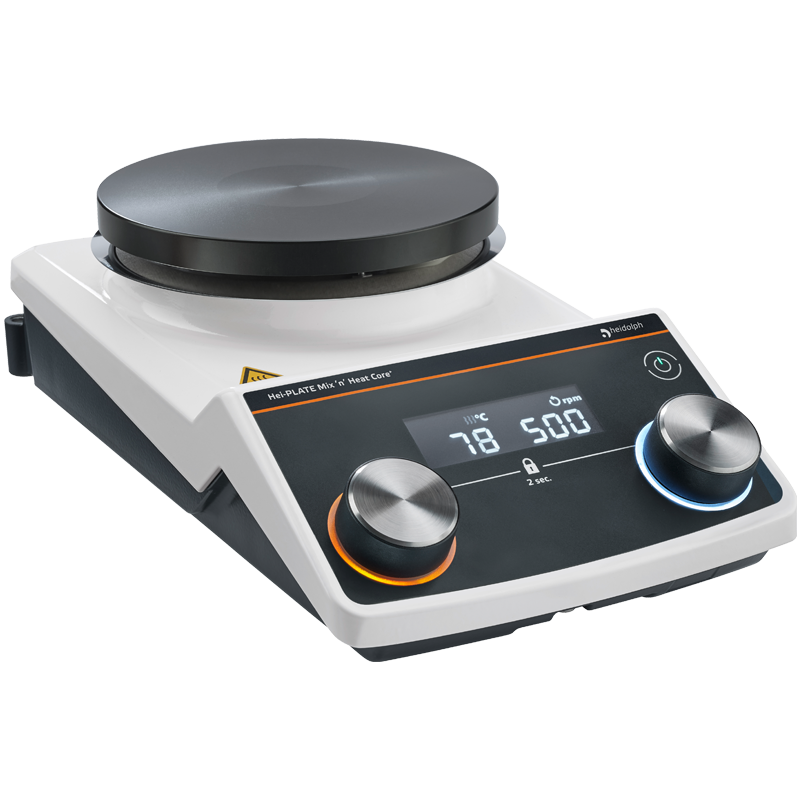

Heidolph Hei-PLATE Mix'n'Heat Core+ magnetic stirrer with heating + RS232

Stirring and Heating with a Pt1000* - Simple and Precise - with an RS232 interface!
The Hei-PLATE Mix 'n' Heat Core+ offers a digital display for precisely setting your desired temperature. The accurate temperature control, without overshooting, is managed by two selectable heating modules (FAST/PRECISE) and the *optional external temperature sensor Pt1000.
• Dimensions (W × H × D): 168 × 101 × 299 mm
• Usable surface heating plate: ∅ 145 mm
• LCD display; illuminated, dynamic rotary knobs; locking function; residual heat indicator
• Round, scratch-resistant, and chemical-resistant stirring plate with Kera-Disk coating
• Maximum permissible load: 25 kg
• Drive: EC motor, left-turning
• Speed range: 100 – 1,400 rpm
• Heating power: 800 W
• Heating temperature range: 20 – 300 °C
• Heating control: PID
• Temperature measurement accuracy_ ±0.2 K
• Temperature measurement resolution: 1 K
• Protection class (EN 60529): IP42

Stirring and Heating with a Pt1000* - Simple and Precise - with an RS232 interface!

The Hei-PLATE Mix 'n' Heat Core+ is a classic among magnetic stirrers, allowing users to gently stir at speeds up to 1,400 rpm and heat with high precision up to 300°C. It stands out with its robust design and advanced features, such as illuminated keys and knobs that indicate active functions at all times. The dynamic rotary knobs adjust to turning speed, allowing for slow, precise changes or fast, larger adjustments. The locking function prevents accidental changes to the settings. This is what "Research Made Easy!" truly means.

Equipped with essential safety features, this magnetic stirrer features an optimized design and a visual residual heat indicator for temperatures about 50°C to prevent burns.

The patented Kera-Disk® plate, made of anodized aluminum, is chemical-resistant, scratch-resistant, and has a diameter of 145 mm. This unique size makes it compatible with many accessories and samples while maintaining a compact footprint. The material also enables rapid heating times.

The Hei-PLATE Mix 'n' Heat Core+ offers a digital display for precisely setting your desired temperature. The accurate temperature control, without overshooting, is managed by two selectable heating modules (FAST/PRECISE) and the *optional external temperature sensor Pt1000.

Technical data

• Dimensions (W × H × D): 168 × 101 × 299 mm
• Usable surface heating plate: ∅ 145 mm
• Maximum permissible load: 25 kg
• Drive: EC motor, left-turning
• Speed range: 100 – 1,400 rpm
• Heating power: 800 W
• Heating temperature range: 20 – 300 °C
• Heating control: PID
• Temperature measurement accuracy_ ±0.2 K
• Temperature measurement resolution: 1 K
• Display: LCD display
• Protection class (EN 60529): IP42
