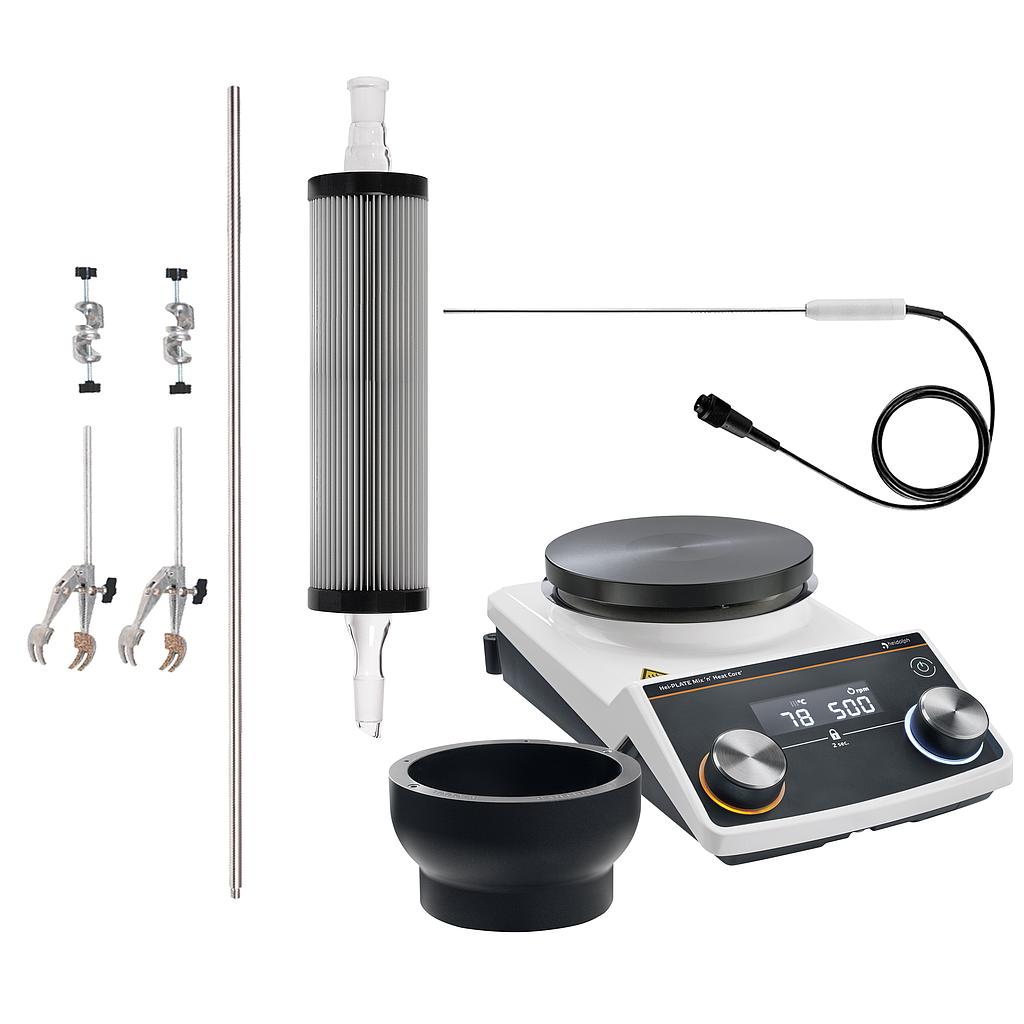

Heidolph Hei‐PLATE Reflux Package Core+

Hei‐PLATE Mix'n'Heat Core+ + Pt 1000 (V4A) + Heat‐On 1 L Block + Findenser 29/24 + Findenser™ attachment kit
Includes: Magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ (145 mm diameter). Fast and precise heating - Without overshoot - Gentle to the sample, Pt1000 - enables precise temperature regulation, 1 L Heat-On Blocks - ensures optimal heat transfer without the use of water or oil. Findenser™ - completes the system as a high-performance condenser that is used without the use of water. The performance is optimal for solvent volumes up to 1 L.
The magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ offers you a digital display for setting your desired temperature to the degree. This precise temperature without overshooting is controlled by two selectable heating modes (FAST/PRECISE) and the optional external temperature sensor Pt1000.
It convinces with its robust design and its sophisticated functionalities, such as its key and knob illumination, which provides information about active functions at any time. The dynamic rotary knobs respond to turning speed - slow for precise adjustments, or fast for bigger jumps. The locking function protects against accidental changing of the values. This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures > 50 °C, protect against burns. A carrying aid on the underside ensures safe transport.
• Circular scratch-resistant, chemical-resistant mixing plate with Kera-Disk coating
• Plate diameter ø: 145 mm
• Temperature range: 20 – 300 °C
• Heating power: 800 W
• Rotation speed range: 100… 1400 rpm
• Accuracy temperature setting: ± 1 K
• Speed accuracy: ± 2 %
• Max. stirring capacity (H₂O): 20 l
• The appliance has a residual heat indication
• Maximum load: 25 kg
• Protection class IEC 60529: IP 42
• The high performance Findenser™ as standard size (400 mm) is for syntheses under reflux with solvent voluments up to 1 liter. It can be secured with standard laboratory clamps or with the Findenser™ attachment kit (sold separately). Save water, space and costs with Findenser™!
