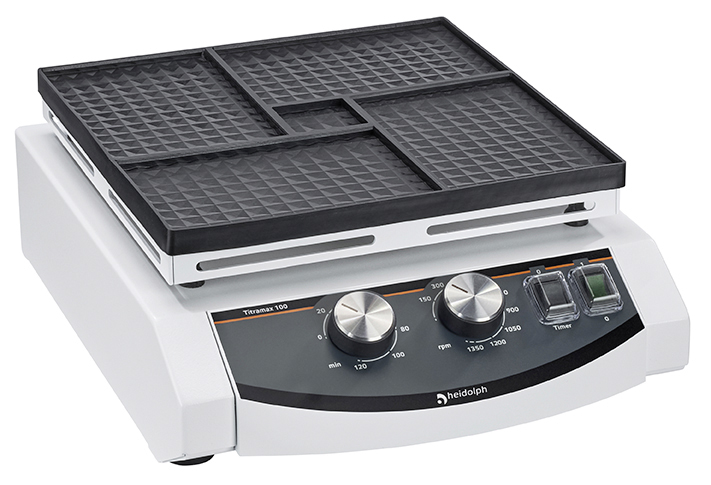

Heidolph Titramax 100 platform shaker
• The gentle with a 1.5 mm shaking orbit
• This shaker is particularly suitable for processes in which cell cultures must be kept in gentle motion.
• The nutrients are excellently distributed. This is guaranteed by the 1.5 mm shaker orbit and a speed range of 150-1,350 rpm.
• The integrated timer can be set for up to 120 minutes; an acoustic signal sounds when the interval has expired.
• Technical Data
• Motion: vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 1.5 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 220 x 220 mm
• Max. Load: 2 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 30
• The gentle with a 1.5 mm shaking orbit
• This shaker is particularly suitable for processes in which cell cultures must be kept in gentle motion.
• The nutrients are excellently distributed. This is guaranteed by the 1.5 mm shaker orbit and a speed range of 150-1,350 rpm.
• The integrated timer can be set for up to 120 minutes; an acoustic signal sounds when the interval has expired.
• Technical Data
• Motion: vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 1.5 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 220 x 220 mm
• Max. Load: 2 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 30
Specifications for Heidolph Titramax 100 platform shaker
| Rotation speed range (rmp) | 150...1350 |
| Shaking orbit | 1.5 |
| Number of multi-well plates max. | 4 |
| Platform size (mm) | 220x220 |
