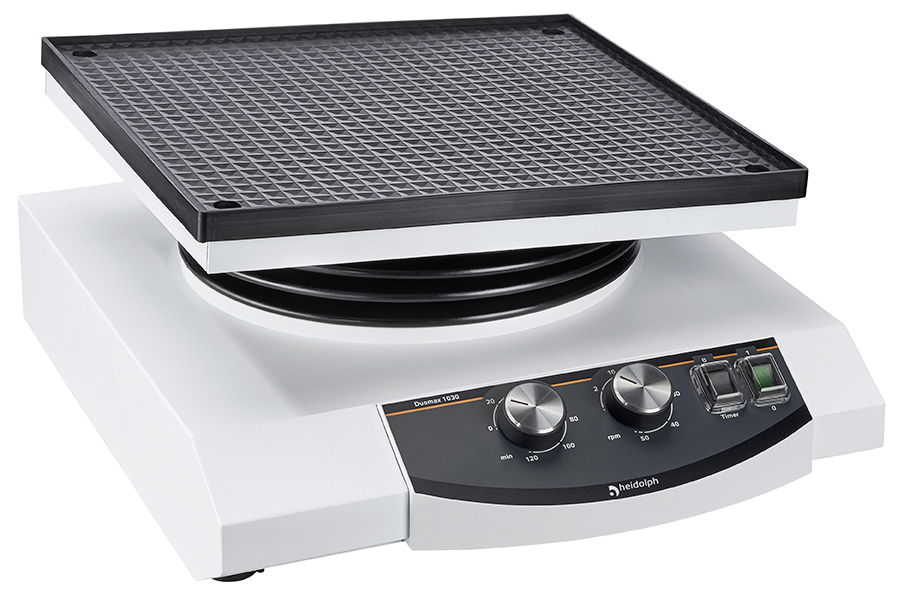

Heidolph Duomax 1030 platform shaker
• Containers are safely fixed on the anti-slip rubber mat even at high speeds. The speed is variably adjustable between 2 and 50 rpm. The shaker can be operated in continuous operation or with a timer (max. 120 minutes).
• A tilt angle of 5° is recommended for applications for which a gentle movement amplitude is suitable. If the application requires stronger shaking, the model can also be obtained with an angle of 10°.
• Additionally, the Duomax 1030 can be integrated into the modular incubator model.
• Technical Data
• Motion: rocking
• Rotation speed range: 2 - 50 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: -
• Timer: Yes
• Power input: 115 W
• Platform size: 290 x 258 mm
• Max. Load: 5 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 20
• Containers are safely fixed on the anti-slip rubber mat even at high speeds. The speed is variably adjustable between 2 and 50 rpm. The shaker can be operated in continuous operation or with a timer (max. 120 minutes).
• A tilt angle of 5° is recommended for applications for which a gentle movement amplitude is suitable. If the application requires stronger shaking, the model can also be obtained with an angle of 10°.
• Additionally, the Duomax 1030 can be integrated into the modular incubator model.
• Technical Data
• Motion: rocking
• Rotation speed range: 2 - 50 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: -
• Timer: Yes
• Power input: 115 W
• Platform size: 290 x 258 mm
• Max. Load: 5 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 20
Specifications for Heidolph Duomax 1030 platform shaker
| Loading maximum (kg) | 5 |
| Rotation speed range (rmp) | 2...50 |
| Tilt angle (°) | 5 or 10 |
| Platform size (mm) | 290x258 |
