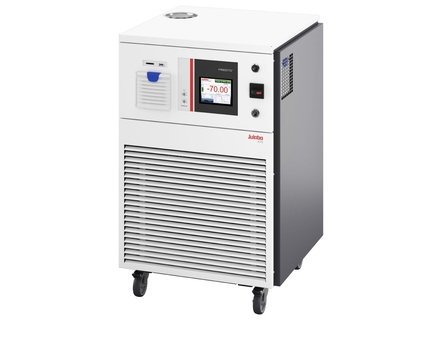

Julabo PRESTO A70 Highly dynamic temperature control system

  • Working temperature range (°C)
  • Temperature stability (°C)
  • Cooling capacity at 20°C (kW)
  • Heating capacity (kW)
  • Pump capacity flow rate (l/min)

This combination does not exist.

Enquiry

The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.
• Analog connections, RS485, Profibus DP (accessory)
• External Pt100 sensor connection
• Built-in 5.7’’ industrial color touchscreen
• Second external Pt100 sensor connection (accessory)
• Alarm output
• Pump pressure up to 1.7 bar
• Removable ventilation grid

The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.
• Analog connections, RS485, Profibus DP (accessory)
• External Pt100 sensor connection
• Built-in 5.7’’ industrial color touchscreen
• Second external Pt100 sensor connection (accessory)
• Alarm output
• Pump pressure up to 1.7 bar
• Removable ventilation grid


Specifications for Julabo PRESTO A70 Highly dynamic temperature control system

Working temperature range (°C) -75…+250
Temperature stability (°C) ±0.01...±0.05
Cooling capacity at 20°C (kW) 1.12
Heating capacity (kW) 1.8
Pump capacity flow rate (l/min) 0...40
