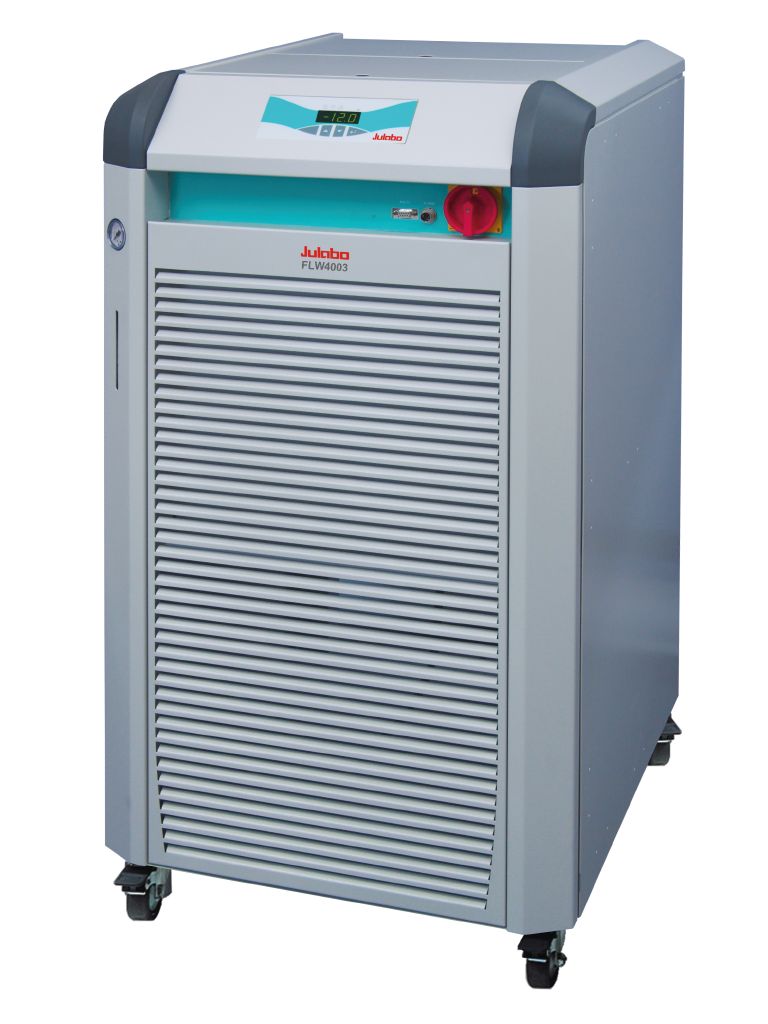

Julabo FLW4003 Recirculating cooler
JULABO FL RECIRCULATING COOLERS
compact models with up to 1.7 kW of cooling capacity
for installation below a lab bench
The compact FL models are suited for a wide variety of cooling tasks. Installation under a lab bench saves valuable space. 2 variants: Air-cooled (FL) and water-cooled (FLW).
• Easy filling from above
• Feed pressure indicator (FL1201 and above) and level indicator (all models)
• Large compensation volume
• Circulating pumps designed for continuous operation
• Permissible return temperature up to +80 °C
• Low liquid level protection with visual and acoustic signals
• May be used with water, water-glycol, Thermal bath fluid
• Overload protection for pump motor and cooling machine
JULABO FL RECIRCULATING COOLERS
compact models with up to 1.7 kW of cooling capacity
for installation below a lab bench
The compact FL models are suited for a wide variety of cooling tasks. Installation under a lab bench saves valuable space. 2 variants: Air-cooled (FL) and water-cooled (FLW).
• Easy filling from above
• Feed pressure indicator (FL1201 and above) and level indicator (all models)
• Large compensation volume
• Circulating pumps designed for continuous operation
• Permissible return temperature up to +80 °C
• Low liquid level protection with visual and acoustic signals
• May be used with water, water-glycol, Thermal bath fluid
• Overload protection for pump motor and cooling machine
Specifications for Julabo FLW4003 Recirculating cooler
| Working temperature range (°C) | -20...+40 |
| Temperature stability (°C) | ±0.5 |
| Cooling capacity at 20°C (kW) | 4.3 |
| Bath volume (liter) | 30 |
| Usable bath opening (W x L/D) (cm) | - |
| Pump capacity flow rate (l/min) | 40 |
