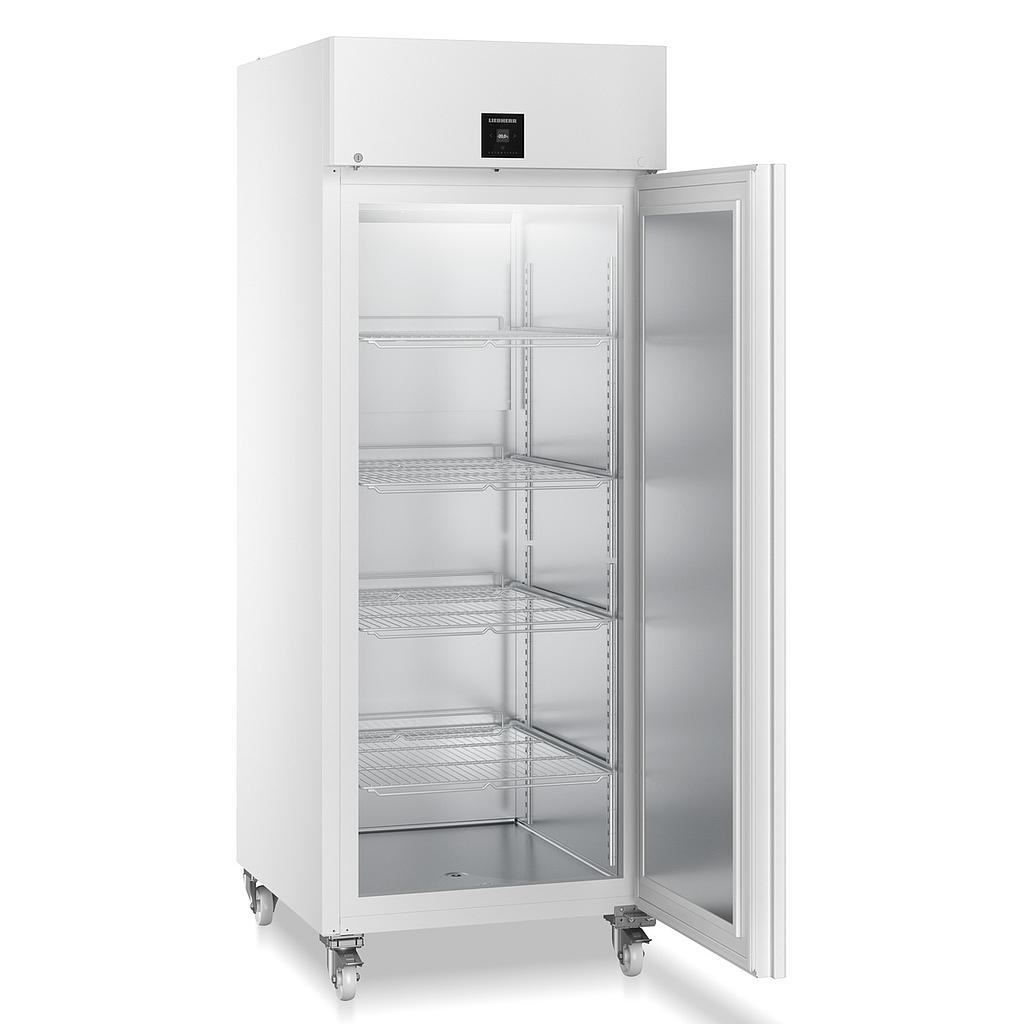

Liebherr SFPvg 8401 laboratory freezer

• Temperature range: -9°C to -30°C
• Gross/net volume: 871/702 L
• External dimensions (W/D/H) mm: 787/1017/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• Energy consumption/year: 870 kWh
• Ambient temperature: +10°C to +35°C
• Heat emission: 1110 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency/voltage: 50 Hz / 220-240 V~
• Fan-assisted cooling system
• Automatic defrost
• External casing/color: steel / white
• Door/lid material: steel
• Interior lining: chrome-nickel steel (1.4301 / AISI 304)
• Monochrome display with touch buttons
• Warning signal in case of malfunction: optical and acoustic
• Network connectivity via SmartModule
• Retrofittable network connection solution
• WLAN/LAN connection: optional
• Internal lighting: LED top lighting
• Adjustable shelves: 4
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638
• Shelf load capacity: 60 kg
• Castor type: Castors with arrestor at the front, fixed castors at the rear
• Recessed handle
• Probe access: 1 x Ø 12 mm
• Mechanical lock
• Door opening direction: right, reversible
• Gross/net weight: 166/149 kg

Laboratory refrigerators and freezers are expected to offer the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation combine to deliver outstanding energy efficiency, keeping operating costs low while protecting the environment. The advanced components and precise regulation ensure optimal storage conditions for materials over the long term.

Product Features

Simple Operation
User-friendly solutions for daily use

• Built-in handle spanning the full height of the door
• Monochrome, 3-button electronic control interface
• Easy-to-clean stainless steel interior
• The door stays open at an angle greater than 90°
• Flush-mounted internal ceiling LED lighting

Compliance and Documentation
Built-in safety features to protect sensitive materials

• Temperature setting (calibration)
• Recording of minimum/maximum temperature values
The set minimum and maximum internal temperatures are saved by the device and can be easily viewed on the display
• Connectivity via retrofit (LAN or WiFi for BMS or SmartMonitoring system)
• Standard compliance: IEC 60068-3, IEC 61010-2-011

Safety and Reliability
Reliable storage due to consistent cooling performance, even under extreme environmental temperature conditions

• Temperature stability: up to ±3 °C for Refrigerator / ±5 °C for Freezer
• Alarm relay
Alarm signals are transmitted to the monitoring system, ensuring no deviations go unnoticed
• The door automatically closes when opened less than 90°
• Probe access port: 10 mm diameter
• Mechanical door lock
• Long lifespan

Technical Data

• Gross/net capacity: 871/702 liters
• External dimensions (W/D/H): 787/1017/2135 mm
• Internal dimensions (W/D/H): 489/638/1470 mm
• Energy consumption per year: 870 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 1110 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency / voltage: 50 Hz / 220-240 V~
• Ventilated cooling system
• Automatic defrost
• Temperature range: -9°C to -30°C
• External casing/color: steel / white
• Interior casing: Chrome-nickel steel (1.4301 / AISI 304)
• Door/Cover material: steel
• Network connectivity option: SmartModule / retrofittable
• WLAN/LAN connectivity: optional
• Number of adjustable shelves: 4
• Shelves material: steel with plastic coating
• Usable shelf size (W/D): 480 / 638 mm
• Shelf load capacity: 60 kg
• Castors with arrestor at the front, fixed castors at the rear
• Probe access port: 1 x Ø 12 mm
• Door opening direction: right, reversible
• Gross/net weight: 166/149 kg
