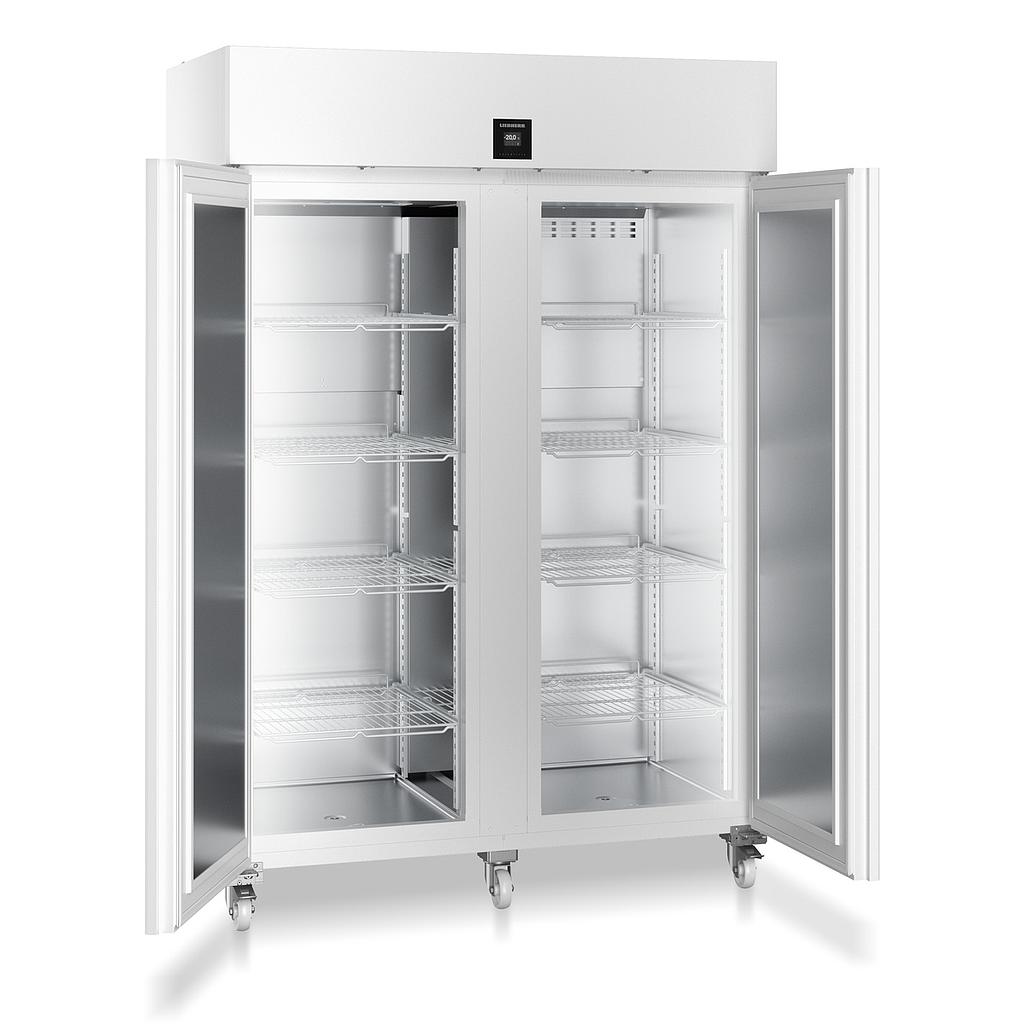

Liebherr SFPvh 1402 laboratory freezer

Temperature range: -9 °C to -35 °C
Temperature stability up to: ±5 °C
Fan-assisted cooling system
Cooling technology: NoFrost
Built-in handle along the full height of the door
2.4” color electronic control panel with touch & swipe function
Stainless steel interior lining
Vertical, full-height side LED lighting
VCC variable speed compressor
Warning signal in case of malfunction: optical and acoustic
SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
PT1000 product temperature sensor
Built-in data logger
Electronic locking system
SmartLock: automatic door locking in case of temperature alarm
Compliance: DIN 13277, IEC 61010-2-011, IEC 60068-3, IEC 61010-2-011
Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring system)
Gross/net volume: 1391/1091 L
External dimensions (W/D/H) mm: 1427/867/2135
Internal dimensions (W/D/H) mm: 1210/638/1470
White, stainless steel exterior casing
Door/casing material: steel
Adjustable shelves: 8 pcs
Plastic-coated wire racks
Usable shelf size (W/D) mm: 570 / 788
Shelf load capacity: 60 kg
Door opening: fixed right / fixed left
Gross/net weight: 235/210 kg
Noise level: 60 dB(A)
Frequency/voltage: 50/60 Hz / 220-240 V~

Laboratory refrigerators and freezers are expected to provide the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation ensure exceptional energy efficiency, leading to low operating costs while safeguarding the environment. The advanced components and precise regulation ensure the optimal storage of materials over the long term.

Product Features

Easy Operation
User-friendly solutions for daily use

• Full-height integrated handle
• 2.4” color electronic interface with touch & swipe functionality
• Easy-to-clean stainless steel interior
• Flush-mounted, full-height internal side LED lighting

Safety and Reliability

• Ventilated cooling system
• NoFrost cooling technology
• Temperature range: -9 °C to -35 °C
• Temperature stability: ±5 °C maximum
• VCC variable speed compressor
The variable speed compressors ensure the right performance is always available. This results in reduced energy consumption and improved temperature stability.
• Optical and acoustic alarms in case of failure
• SafetyDevice: prevents the temperature from dropping below +2 °C, avoiding freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, another temperature sensor is available to measure simulated product temperature. The value measured by the product temperature sensor can also be displayed on the screen. The value can be calibrated, and the device’s alarm thresholds will then be based on this value, ensuring safer storage based on real product temperature values.
• Power failure alarm
In case of a power outage, the built-in battery maintains power for at least twelve hours, activating an immediate audible and visible alarm. Additional indication of the start of the power outage and the maximum temperature reached is also provided.
• LightAlarm
If the internal temperature rises unchecked, the door is left open, or other issues occur, the internal lighting will begin to flash.
• Alarm history: Simple quality control
The last 10 alarms, including key data like date and maximum temperature, are logged for final quality assessment of stored goods.
• Built-in data logger: traceable for years
Complete traceability independent of monitoring systems through logging of the temperature profile, alarm history, and service information for up to 5 years. Stored data can be read via USB port.
• Door automatically closes if opened less than 90°
• Probe access port: 1 x Ø 12 mm
• Electronic locking system: protection against unauthorized access with PIN or remote lock/unlock capability
• SmartLock: automatic door locking in case of temperature alarm, which can only be unlocked by authorized personnel
• Long lifespan

Compliance and Documentation

• Complies with DIN 13277 and IEC 61010-2-011
Liebherr laboratory and pharmaceutical refrigeration units meet all the characteristics and performance criteria necessary for full compliance with the DIN 13277 standard. DIN 13277 specifies requirements and test procedures for refrigeration and freezer equipment used in laboratories and for storing pharmaceuticals.
• IEC 60068-3 standard for temperature distribution and consistency
• IEC 61010-2-011 standard for safety
• Temperature adjustment (calibration)
• Recording of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring system)

Technical Specifications

• Gross/net volume: 1391/1091 l
• External dimensions (W/D/H): 1427/867/2135 mm
• Internal dimensions (W/D/H): 1210/638/1470 mm
• White, stainless steel external casing
• Door/Cover material: steel
• Adjustable shelves: 8
• Shelves: plastic-coated grates
• Usable shelf size, mm (W/D): 570 / 788
• Shelf load capacity: 60 kg
• Door opening: right fixed / left fixed
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 235/210 kg
• Energy consumption/year: 1162 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 1485 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency / voltage: 50/60 Hz / 220-240 V~a
