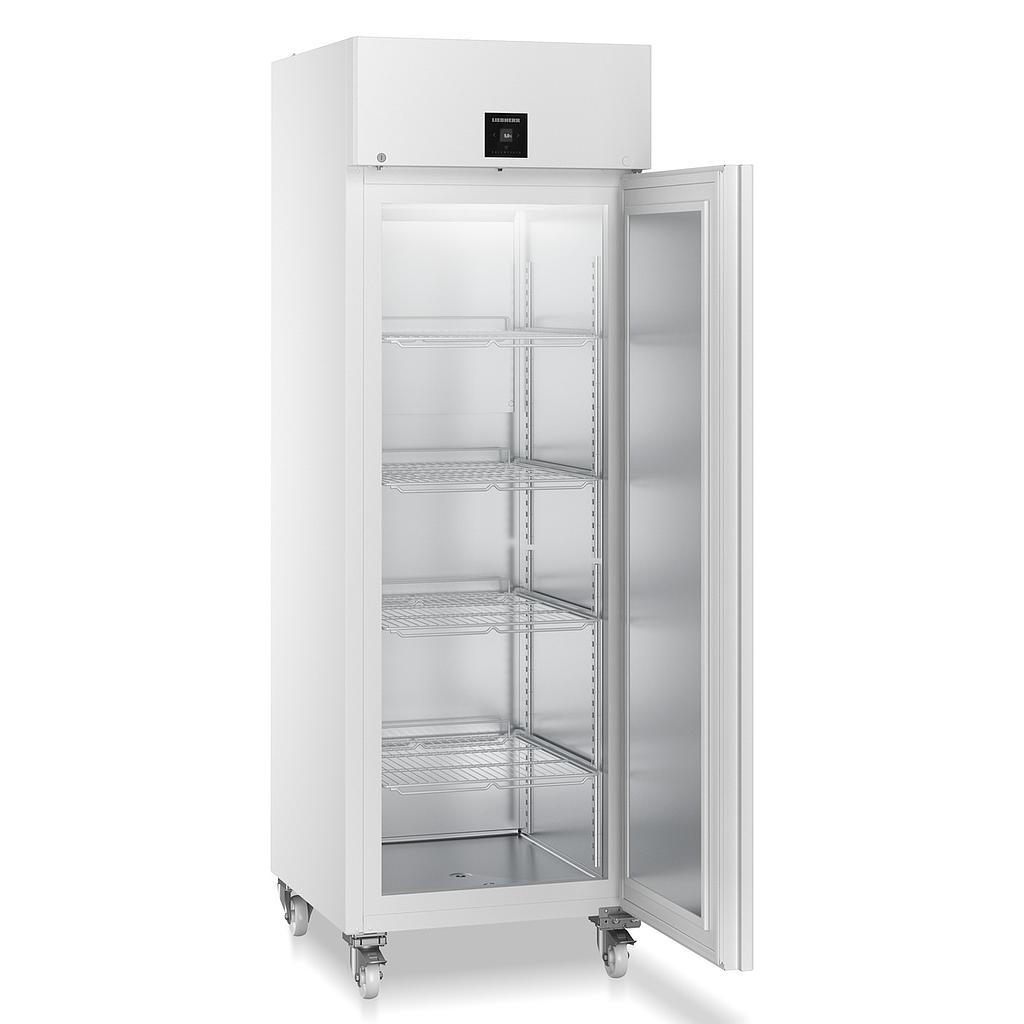

Liebherr SRPvg 6501 heavy-duty fridge

• Temperature range: -2 °C to +16 °C
• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 489/638/1470
• Internal dimensions (W/D/H) mm: 489/638/1470
• Energy consumption/year: 178 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency/voltage: 50 Hz / 220-240 V~
• Fan-assisted cooling system
• Automatic defrost
• External casing/color: steel / white
• Door/Cover material: steel
• Interior lining: Chrome-nickel steel (1.4301 / AISI 304)
• Monochrome display with touch buttons
• Warning signal in case of malfunction: optical and acoustic
• Network connectivity via SmartModule
• Retrofittable network connection solution
• WLAN/LAN connection: optional
• Internal lighting: LED top lighting
• Adjustable shelves: 4
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480/638
• Shelf load capacity: 60 kg
• Wheels: steering rollers with locking brakes at the front, castors at the back
• Recessed handle
• Probe access: 1 x Ø 12 mm
• Mechanical lock
• Door opening direction: right, reversible
• Gross/net weight: 148/130 kg

Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation ensure optimal storage of materials.


Product Features

Easy Operation
User-friendly solutions for daily use

• Built-in handle along the full height of the door
• Monochrome electronic control panel with 3 touch buttons
• Easy-to-clean stainless steel interior lining
• The door stays open at angles greater than 90°
• Flush-mounted interior ceiling LED lighting

Compliance and Documentation
Built-in safety features to protect sensitive materials

• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
The recorded minimum and maximum internal temperatures are saved and can be easily read from the display.
• Connectivity available as an upgrade (LAN or WiFi for BMS or SmartMonitoring systems)
• Standard compliance: IEC 60068-3, IEC 61010-2-011

Safety and Reliability
Reliable storage thanks to consistent cooling performance, even in extreme ambient temperature conditions

• Temperature stability up to: ±3 °C (refrigerator) / ±5 °C (freezer)
• Alarm relay
Alarm transmission to the monitoring system ensures no deviations go unnoticed.
• The door automatically closes if opened at less than a 90° angle.
• Probe access opening: 10 mm in diameter
• Mechanical door lock
• Long lifespan

Technical Data

• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• Energy consumption/year: 178 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency/voltage: 50 Hz / 220-240 V~
• Fan-assisted cooling system
• Automatic defrost
• Temperature range: -2 °C to +16 °C
• External casing/color: steel / white
• Interior lining: chrome-nickel steel (1.4301 / AISI 304)
• Door/Cover material: steel
• Network connectivity via SmartModule, available as an upgrade
• WLAN/LAN connection: optional
• Adjustable shelves: 4
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638 mm
• Shelf load capacity: 60 kg
• Castors with arrestor at the front, fixed castors at the rear
• Probe access: 1 x Ø 12 mm
• Door opening direction: right, reversible
• Gross/net weight: 148/130 kg
