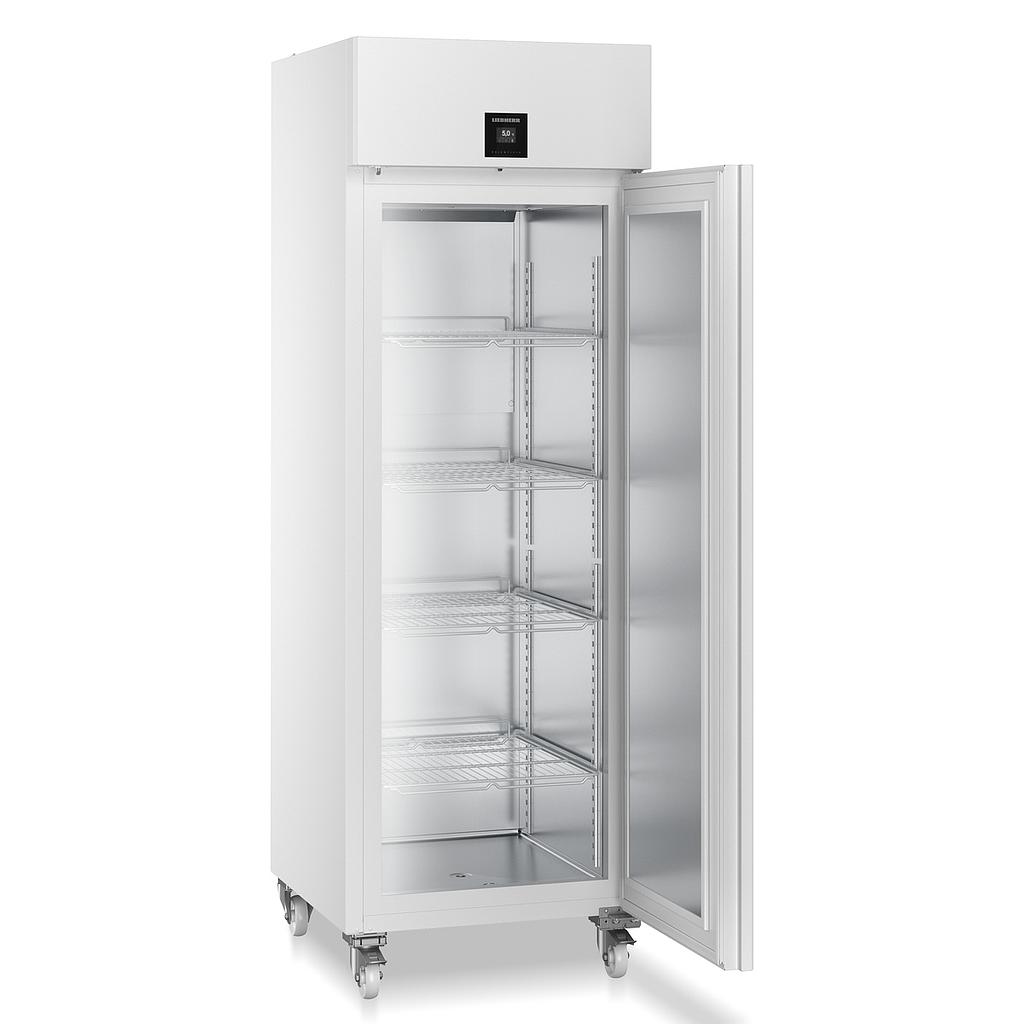

Liebherr SRPvh 6501 heavy-duty fridge

• Temperature range: -2 °C to +16 °C
• Temperature stability up to: ±3 °C
• Fan-assisted cooling system
• Automatic defrost
• Built-in handle along the full height of the door
• 2.4” color electronic control panel with touch & swipe function
• Stainless steel interior lining
• Vertical, full-height side LED lighting
• VCC variable speed compressor
• Warning signal in case of malfunction: optical and acoustic
• SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
• PT1000 product temperature sensor
• Built-in data logger
• Electronic locking system
• SmartLock: automatic door locking in case of temperature alarm
• Compliance: DIN 13277, IEC 61010-2-011, IEC 60068-3, IEC 61010-2-011
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring system)
• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• White, stainless steel exterior casing
• Door/casing material: steel
• Adjustable shelves: 4 pcs
• Shelves material: steel with plastic coating
• Usable shelf dimensions (W/D) mm: 480/638
• Shelf load capacity: 60 kg
• Door opening direction: right, reversible
• Gross/net weight: 148/130 kg
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~

Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation work together to ensure optimal storage of materials.

Product Features

• Fan-assisted cooling system
• Automatic defrost
• Temperature range: -2 °C to +16 °C

Easy Operation

• Built-in handle along the full height of the door
• 2.4” color electronic control panel with touch & swipe function
• Easy-to-clean stainless steel interior lining
• Integrated, flush-mounted interior lighting (vertical, full-height side LED lighting)

Safety and Reliability

• Temperature stability up to: ±3 °C
• VCC variable speed compressor
The variable-speed compressors always provide the appropriate performance. This results in reduced energy consumption and increased temperature stability.
• Warning signal in case of malfunction: optical and acoustic
• SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, another temperature sensor is available for measuring the simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen, calibrated, and used as the reference for the device's alarm function. This ensures safer storage based on real product temperature values.
• Power failure alarm
In case of a power outage, the built-in battery maintains power for at least twelve hours and immediately activates an audible and visual alarm. Additional indication of when the power outage started and the maximum temperature reached.
• LightAlarm
In case of uncontrolled temperature rise, a door left open, or another issue, the internal lighting of the device starts to flash.
• Alarm history: Easy quality control
Logging important data from the last 10 alarms (e.g., date or maximum temperature) for the final quality assessment of stored goods.
• Built-in data logger: Trackable for years
Complete traceability independent of monitoring systems with up to 5 years of logging for temperature profiles, alarm history, and service information. Stored data can be retrieved via the USB port.
• The door automatically closes if opened at less than a 90° angle.
• Probe access: 1 x Ø 12 mm
• Electronic locking system: Protects against unauthorized access with locking/unlocking via PIN code or remote control.
• SmartLock: Automatic door locking in case of temperature alarm, only accessible by authorized personnel.
• Long lifespan

Compliance and Documentation

• DIN 13277 and IEC 61010-2-011 compliance
Liebherr laboratory and pharmaceutical refrigeration units meet all the features and performance criteria necessary for full compliance with DIN 13277. This standard defines requirements and test procedures for cooling and freezing equipment used in laboratories and for drug storage.
• Temperature distribution and consistency according to IEC 60068-3
• Safety according to IEC 61010-2-011
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring systems)

Technical Data

• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• White, stainless steel exterior casing
• Door/Cover material: steel
• Adjustable shelves: 4 pcs
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638
• Shelf load capacity: 60 kg
• Door opening direction: right, reversible
• Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation work together to ensure optimal storage of materials.
• Product Features
• Fan-assisted cooling system
• Automatic defrost
• Temperature range: -2 °C to +16 °C
• Easy Operation
• Built-in handle along the full height of the door
• 2.4” color electronic control panel with touch & swipe function
• Easy-to-clean stainless steel interior lining
• Integrated, flush-mounted interior lighting (vertical, full-height side LED lighting)
• Safety and Reliability
• Temperature stability up to: ±3 °C
• VCC variable speed compressor
• The variable-speed compressors always provide the appropriate performance. This results in reduced energy consumption and increased temperature stability.
• Warning signal in case of malfunction: optical and acoustic
• SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
• PT1000 product temperature sensor
• In addition to the built-in control sensor, another temperature sensor is available for measuring the simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen, calibrated, and used as the reference for the device's alarm function. This ensures safer storage based on real product temperature values.
• Power failure alarm
• In case of a power outage, the built-in battery maintains power for at least twelve hours and immediately activates an audible and visual alarm. Additional indication of when the power outage started and the maximum temperature reached.
• LightAlarm
• In case of uncontrolled temperature rise, a door left open, or another issue, the internal lighting of the device starts to flash.
• Alarm history: Easy quality control
• Logging important data from the last 10 alarms (e.g., date or maximum temperature) for the final quality assessment of stored goods.
• Built-in data logger: Trackable for years
• Complete traceability independent of monitoring systems with up to 5 years of logging for temperature profiles, alarm history, and service information. Stored data can be retrieved via the USB port.
• The door automatically closes if opened at less than a 90° angle.
• Probe access: 1 x Ø 12 mm
• Electronic locking system: Protects against unauthorized access with locking/unlocking via PIN code or remote control.
• SmartLock: Automatic door locking in case of temperature alarm, only accessible by authorized personnel.
• Long lifespan
• Compliance and Documentation
• DIN 13277 and IEC 61010-2-011 compliance
• Liebherr laboratory and pharmaceutical refrigeration units meet all the features and performance criteria necessary for full compliance with DIN 13277. This standard defines requirements and test procedures for cooling and freezing equipment used in laboratories and for drug storage.
• Temperature distribution and consistency according to IEC 60068-3
• Safety according to IEC 61010-2-011
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring systems)
• Technical Data
• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• White, stainless steel exterior casing
• Door/casing material: steel
• Adjustable shelves: 4 pcs
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638
• Shelf load capacity: 60 kg
• Door opening direction: right, reversible
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 148/130 kg
• Annual energy consumption: 172 kWh
• Ambient temperature: +10 °C - +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 600a
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~
• Gross/net weight: 148/130 kg
• Annual energy consumption: 172 kWh
• Ambient temperature: +10 °C - +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 600a
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~
