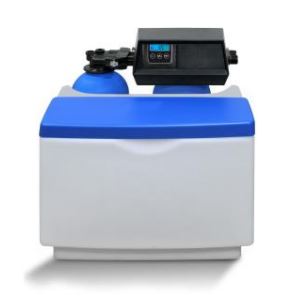

Stakpure WEA 20 Duo 1 cabinet water softener

Double system, volume-controlled in compact design, for softening ironand manganese-free drinking water, in accordance with the Drinking Water Ordinance, fully automatic 5-stage central control valve type 9100 SE with intelligent control electronics made of gunmetal with adapter for the second pressure vessel. 2 pressure tanks made of corrosion-resistant GRP, including a high-quality cation exchanger. 1 cabinet brine tank with a sieve floor and a float valve (safety valve).
• Maximum flow rate: 1.9 m³/h at 1.6 bar pressure loss
• Resin quantity: 2 x 5 litres
• Salt consumption: approx. 1.2 kg/reg.
• Operating pressure: 3 to 6 bar
• Max. water temperature: 40°C
• Max. ambient temperature: 5 to 40°C
• Dimensions of housing: approx. W 585 x D 555 x H 622 mm
• Electrical connection: 230 V 50 Hz
• Water connection: R 1’
• Waste water connection R ½’

Double system, volume-controlled in compact design, for softening ironand manganese-free drinking water, in accordance with the Drinking Water Ordinance, fully automatic 5-stage central control valve type 9100 SE with intelligent control electronics made of gunmetal with adapter for the second pressure vessel. 2 pressure tanks made of corrosion-resistant GRP, including a high-quality cation exchanger. 1 cabinet brine tank with a sieve floor and a float valve (safety valve).

Technical data

• Maximum flow rate: 1.9 m³/h at 1.6 bar pressure loss
• Resin quantity: 2 x 5 litres
• Salt consumption: approx. 1.2 kg/reg.
• Operating pressure: 3 to 6 bar
• Max. water temperature: 40°C
• Max. ambient temperature: 5 to 40°C
• Dimensions of housing: approx. W 585 x D 555 x H 622 mm
• Electrical connection: 230 V 50 Hz
• Water connection: R 1’
• waste water connection R ½’
