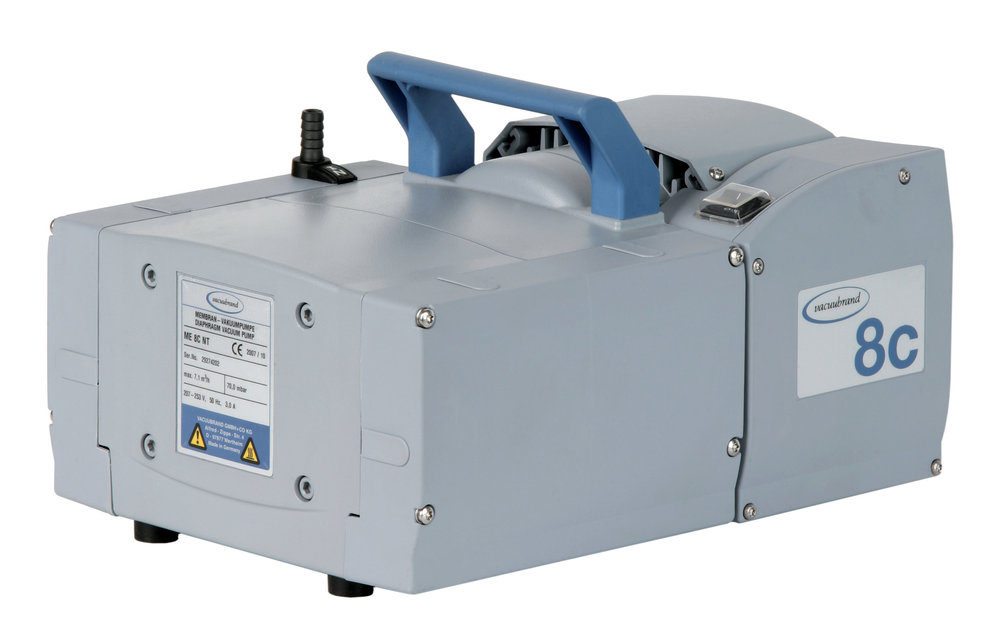

Vacuubrand acuubrand chemistry diaphragm pump ME 8C NT

  • Ultimate vacuum (mbar)
  • Max. pumping speed (m3/h)

This combination does not exist.

Enquiry

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance.
Performance features
• outstanding chemical resistance and superior vapor tolerance
• exceptionally high performance even at low vacuum
• compact design
• whisper quiet and very low vibration
• long diaphragm life, maintenance-free drive system

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance.
Performance features
• outstanding chemical resistance and superior vapor tolerance
• exceptionally high performance even at low vacuum
• compact design
• whisper quiet and very low vibration
• long diaphragm life, maintenance-free drive system


Specifications for Vacuubrand acuubrand chemistry diaphragm pump ME 8C NT

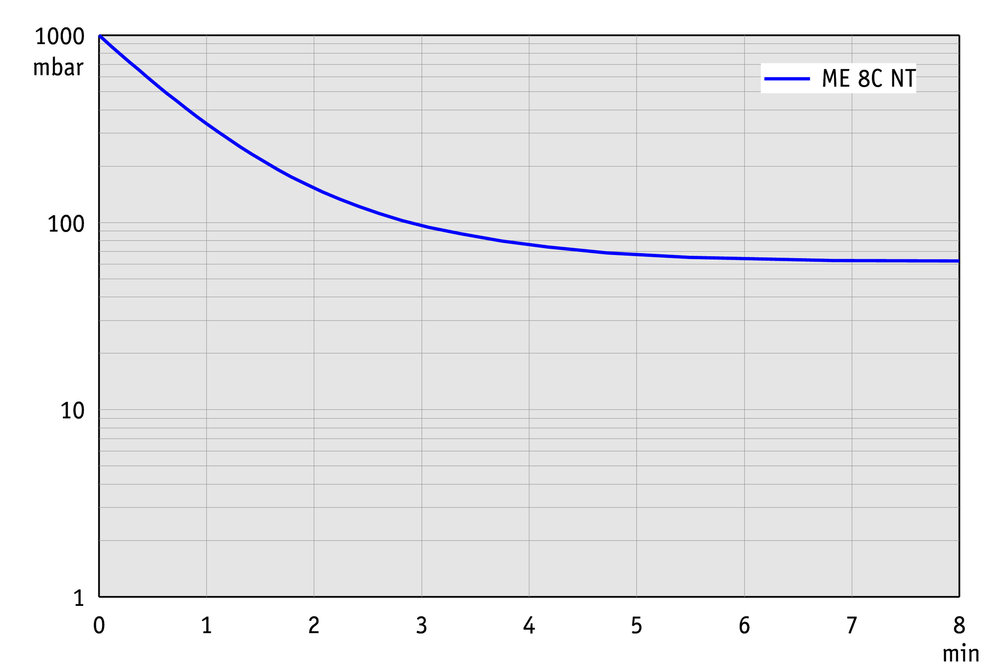

Ultimate vacuum (mbar) 70

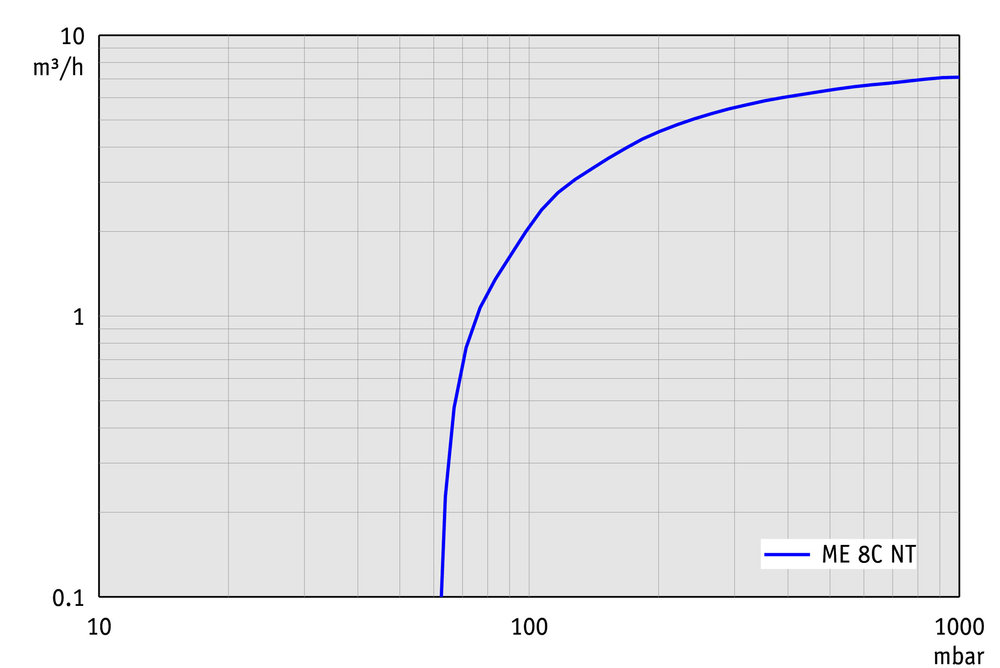

Max. pumping speed (m3/h) 7.1
