All products

For fixing delicate wash items.
• Area of application: reprocessing laboratory glassware
• Lid in stainless steel
• 1 mm wire, 8 mm mesh size, 4 mm frames

To raise the machine.
• 60 cm deep, 60 cm wide.
• Suitable for all machines with a width and depth of 60 cm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8593 devices.

For the optimum loading of half petri dishes.
• Suitable for 38 half petri dishes with Ø 100 mm
• Equipped with 38 holders, height 70 mm, distance approx. 26 mm
• For use in upper basket

• Area of application: reprocessing laboratory glassware and measuring cylinders
• Equipped with 10 spring hooks x 175 mm height & 16 x 105 mm height
• The distance between the spring hooks is approx. 60 mm

For optimum loading of laboratory glassware – can be equipped with 8 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Module w/o injector nozzles – equipped based on individual needs
• For up to 8 injector nozzles . Particularly suitable for nozzle diameters of 6 mm, e.g. A 840 or A 841, other diameters are possible depending on the application.
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 118 mm across the width, 118 mm across the depth

For the optimum loading of 38 pipettes.
• Area of application: reprocessing pipettes/vials
• for 10 100 ml pipettes in row 1, distance 20 mm
• for 14 25 ml pipettes in a 2nd row, distance 26 mm
• for 14 10 ml pipettes in a 3rd row, distance 26 mm

Machine affiliation: Can be used in PG 8583, PG 8583 CD, PG 8593 devices.

For the optimum loading of inserts.
• Area of application: reprocessing laboratory glassware, mesh trays and different utensils
• Vertical clearance: 95 mm, width 505 mm, depth 472 mm
• Particularly suitable for the reprocessing of DIN mesh trays
• Also suitable for further applications with low height items
• With integrated spray arm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KB ECO cooling incubator is one of the most energy-ecient cooling incubator on the market. The thermoelectric cooling technology means the KB ECO series is also very quiet during operation.
Benefits
• Safe: Unique condensate and dry-out protection for all operating conditions
• Reliable: Fail-safe operation due to intelligent thermoelectric tempering
• Smart: Temperatures programmable for intermitted incubation and refrigeration
• Economical: Minimum energy consumption thanks to optimized thermoelectric cooling
Main features
• Temperature range: 0 °C through +70 °C (max. 28 °C below the ambient temperature)
• APT.line™ preheating chamber technology
• Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
• Inner door made of tempered safety glass
• Inner chamber made completely of stainless steel
• 2 rack, stainless steel
• Access port with silicone plug Ø 30 mm
• LCD to display temperature along with additional information and alarms
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis

A compact sized shaker-incubator with an excellent temperature distribution
The Lab-Shaker LS-Z and the incubator Kuhner Kelvin+ combine approved Kuhner quality in a new modular system to provide maximum flexibility to our customers. The LS-Z, just like its predecessor LS-X, is a sturdy benchtop shaker designed for continuous and maintenance-free ope­ration. Our new Kuhner Kelvin+ is a compact sized incubator with an excellent temperature distribution.
Performance characteristics
• Compact footprint
• Hygienic design: easy cleaning
• Fast regeneration time due to stainless steel chamber
• Very good temperature distribution
• Large feedthrough port
• Kuhner TOM online measurement tool upgradable
Technical data - Lab-Shaker LS-Z
• Power consumption typical: approx. 25W
• Weight shaker: 46 kg
• Weight Power Cube: 6.5 kg
• Weight Controller: 0.6 kg
• Ambient temperature: -20 up to 80°C
• Ambient relative humitidy: up to 90 % (shaking unit)
• Operating menu in: DE, FR, EN, IT, ES
• Interface standard: CAN-Bus
• Tray, size
E (420 x 420mm)
EX (500 x 420mm)
F (800 x 420mm)
• Loading maximum: up to 25 kg
• Setting, digital: 1 rpm
• Control accuracy, absolute: +/- 0.5 rpm
• Timer: 1 s – 999 h
• Acceleration: controlled
• Active break: adjustable
• Stop on position: adjustable
• Shaking motion
orbital, Ø 12.5 mm* 20...500 rpm
orbital, Ø 25.0 mm* 20...400 rpm
orbital, Ø 50.0 mm* 20...300 rpm
• Material: Stainless steel cover
Options & Accessories
Interface, optional: USB, Ethernet, digital, analogue
IQ/OQ-Documentation: available
Dual table: available
Technical data Kuhner Kelvin+
• Temperature minimum: ambient + 3°C
• Temperature maximum: 60°C
• Temperature distribution: +/- 0.5°C (at 37°C, 100 rpm)
• Principle of sensor: Pt-100
• Power of heating: 400W
• Air circulation: 190 m3/h
• Power consumption typical: approx. 130W
• Gas volume: 130 L
• Weight shaker: 28 kg
• Illumination: LED
• Ambient temperature: 10 up to 35°C
• Operating menu in: DE, FR, EN, IT, ES
• Interface standard: CAN-Bus
• Tray, size: E (420 x 420mm)
• Setting, digital: 0.1°C
• Control accuracy, absolute: <+/- 0.3°C
• Timer: 1 s – 999 h (shaker only)
• Material: inner chamber stainless steel, outer chamber PUR (insulation), door polycarbonate
Options & Accessories
• Light shading plate
• Shelf
• Interface, optional
• Stacking adapter
• IQ/OQ-Documentation
• Dual table

ISF1-Z incubator shaker - the perfect solution for shaken cultivation processes
The ISF1-Z incubator shaker is suitable for applications in laboratories, research centers and production facilities. The ISF1-Z complies with GMP (good manufacturing practice) requirements and regulations. It offers a large shaking capacity with a small footprint and many features allowing straightforward, safe handling of any culture or product. The incubator shaker is applicable for microbial, plant, human and animal cell cultures.
Performance characteristics of ISF1-Z models
• Large shaking capacity with small footprint
• Hygienic design according to DIN EN ISO 14159
• Improved direct drive: stronger, higher shaking frequencies, very long lasting
• Up to three machines can be stacked without additional components: incubators ISF1-X/W and new ISF1-Z mixable in stack
• Flexible and retrofittable: all options and accessories applicable
• Fast, direct information through parallel and clear display of all process parameters
ISF1-Z Models
• The ISF1-Z incubator shaker is available in three different models: ISF1-Z, ISF1-Z EcoDew and ISF1-Z Peltier. Each model provides distinct features and is additionally available with CO2 control for cell culture processes.
• The ISF1-Z is the basic version of Kuhners stackable incubator shaker with temperature control (heating).
100% stainless steel for easy cleaning
• The ISF1-Z is available in a 100% stainless steel finish. It can either be painted white or have a processed stainless steel look. Take a look at the video to see the advantages of having stainless steel inside and outside the shaker.
Quality
• The improved maintenance-free direct drive of the ISF1-Z is stronger, offers higher shaking frequencies and has a longer lifespan than ever. It guarantees accurate control and low energy consumption/heat dissipation even at high speeds. Kuhner’s direct drive system and the newly designed shaking table allows the shaking diameter to be changed at any time – quickly and easily. Different fixed shaking diameters (3, 6, 9, 12.5, 19, 25, 50, 70 mm) are adjustable. And even a stepless adjustment is available as an option.
• All ISF1-Z components are designed for durability and reliability. A Kuhner shaker is a cost effective investment in quality backed with a five year warranty.
Hygienic design
• The ISF1-Z is made of stainless steel inside and outside for easy and fast cleaning. The hygienic design complies with GMP requirements. The interior was designed according to DIN EN ISO 14159. It has rounded corners and a drain at the back for quick removal of any unwanted liquids. The direct drive system is completely covered and therefore protected from spills. The incubator chamber can be cleaned with chemicals or sterilized using optional UV lighting.
A system that grows with your needs
• Up to three ISF1-Z incubators can be stacked providing more shaking capacity without taking up more floor space in the lab. Stacking is a simple procedure without the need for special tools or stacking kits. Each machine operates independently. The ISF1-Z incubator shakers are mixable in stack with ISF1-X/W incubators.
Options, accessories, and more
• Numerous options and accessories are available for the ISF1-Z incubator shaker to fulfill any need of our customers regarding cultivations in shaken bioreactors. Moreover, all accessories are interchangeable between the new ISF1-Z incubators and its predecessors ISF1-X/W. The ISF1-Z offers even more interior space than its predecessor ISF1-X, e.g. to accommodate particularly big shake flasks. The ISF1-Z has clearly arranged displays on the front side (e.g. for shaking speed) with color change and an acoustic signal when an error/alarm occurs.
• Additionally, a fix or a tilting touchscreen version with our Kuhner Insight software is available. Serial interfaces (e.g. CAN) are arranged on the front side and the sensors in the inside are also easily accessible for a fast and comfortable work flow. The interior LED light is a color neutral light with low energy dissipation.
Detailed technical data can be found in the product catalog.

Space saving stackable incubator shaker
The Kuhner LT-X (Lab-Therm) incubator shaker has the same capabilities as the larger ISF1-X and ISF4-X models. The incubator shaker was specially developed to address the shaking needs of the biotechnology and pharmaceutical industries. The practical size of the LT-X means it will fit in any laboratory.
Performance characteristics
• Fits into any laboratory
• Used in biotech and pharmaceutical industries
• Accepts flasks up to 6 litres
• Two units can be stacked without the need for special kits or tools
• Humidity, CO2 and O2 control available
• Extra space
Exceptional chamber height means flasks up to 6 litres capacity can be accommodated. If using smaller flasks, there is sufficient head height to fit one or two stationary trays above the shaking table. It is also possible to stack two LT-X together without the need for special kits or tools.
• Functionality through direct drive
The maintenance-free direct drive guarantees long and economical performance from the LT-X. The shaking diameter can be changed at any time thanks to Kuhner’s unique direct drive system. The integrated drive is protected from spills and the all stainless steel interior has a drain at the back for any unwanted liquids. The chamber can be cleaned using chemicals or sterilized with optional UV lighting.
• Safety and quality
A door switch ensures the motor stops as soon as the door is opened. After closing the door properly, the motor restarts. The safety, reliability and quality of our shakers are of personal concern to everyone at Kuhner which is why all our machines are supplied with a 5 year warranty.
• Configuration
The LT-X can be equipped with options for CO2, O2,controlled humidity, LED photosynthesis, UV lighting and much more. It is now also possible to integrate measuring data from Kuhner shakers with your company’s own network using Kuhner Insight software together with the NET-60 interface.
Detailed technical data can be found in the product catalog.

Large incubator shaker with a minimal footprint and up to five independent shaker units
The Kuhner ISF4-X incubator shaker offers large shaking capacity with temperature, humidity and CO2 control all available. The shaker cabinet can incorporate four or even five independent shaking units which are height adjustable. The shaking diameter and speed of each unit can be individually selected. Standard diameters are 12.5, 25 and 50 mm. Other shaking diameters are possible.
Performance characteristics
• All stainless steel interior
• Large shaking capacity
• Easy access to contents
• Each shaking unit has its own direct drive
• Door heating, with controlled humidity
• Guaranteed quality
When designing the ISF4-X special emphasis was placed on reliability and durability. The high quality of Kuhner shaking machines is backed with a five year warranty.
• Safety and convenience
The large door opening of the ISF4-X allows easy access to the shake flasks inside. The doors are fitted with a safety switch to ensure shaking stops when the doors are opened.
The large windows allow a clear view of incubator’s contents. The entire ISF4-X chamber is made of stainless steel making sterilisation with chemicals possible.
• Energy saving operation
The highly efficient direct drive system means economic low power consumption and the cooling system also operates with energy efficiency.
• Electrical protection
Automatic supervision of the mains voltage protects the shaker and in the event of a voltage spike the unit disconnects from the mains. The machine resumes operation at the set values once power is restored.

FGW – LAB GLASSWARE WASHER
THE COST-EFFECTIVE CHOICE.
LAB GLASSWARE WASHER.
Applications: Food, Bio-Pharmaceutical, Cosmetics, Microbiology
Loads: Tools, Glassware
Processes: Washing
Fedegari Lab Division latest innovation is a Lab Glassware Washer that capitalizes the experience done with FOWS-series of washers in the pharmaceutical industry.
The power of steam: a cost-effective cleaning
The new FGW Lab Glassware Washer uses a steam generator to improve washing performances. Steam has an optimized emollient effect on greasy and sticky dirt. In addition, steam is able to access hard-to-reach areas and therefore clean thoroughly. Moreover the use of steam can significantly reduces operating costs: this really eco-friendly solution allows to minimize the need of detergents as well as water consumption, lowering the running costs per cycle.
A conductivity meter placed on the FGW drain is capable to detect the water purity, helping to terminate the process as soon as the desired set-point is reached thus further reducing water and other utilities consumption of the washer.
The cleaning process is constantly supervised: dedicated probes monitoring the temperature of the air/water and of the steam in chamber. Fedegari Glassware Washer has an internal LED lamp that remains operative during the whole cycle: in case of alarm evident signals are displayed by color change.
DESIGN AND TECHNICAL FEAUTURES
The piping, as any other equipment manufactured by Fedegari, has a rigorous sanitary finishing. The FGW glassware washer is equipped with custom-made and modular internal trays, connected to the hydraulic system. The external trolleys are fully compatible with those of the FOB5 autoclave.
KEY BENEFITS
• Steam improves washing performances.
• Thema4Lab.
• Steam as Eco-friendly solution.
• Energy saving function.
• Customizable internal rack.
• Trolleys and trays fully compatible with FOB5 series.
• Sanitary components and CIP to ensure a perfect washing.
• GLP compliance.
COMPLIANCE TO
• PED Directive 2014/68/UE – Pressure equipment**
• Machine Directive Macchine 2006/42/EC
• EMC Directive 2014/35/UE
• LVD Directive 2006/95/UE

Safety storage cabinet for charging and storage of lithium-ion-batteries
The BATTERY line type safety storage cabinets are equipped with a varied range of additional functionalities to increase safety and working convenience. In addition, all safety-related components are not subjected to day-to-day dynamic loads and are thus free of attrition and mechanical wear.
• Width: 1194 mm
• Depth: 612 mm
• Height: 2045 mm
• Weight: 520 kg
• Classical door technology (door handle)
• For the storage of lithium-ion batteries
• Type-tested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, and DIN 31000 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
Construction and colour:
• Outer carcass sheet steel, RAL 7035
• Doors sheet steel, PANTONE 389 C
• Inner carcass decor panels, RAL 7035
Fittings and features:
• Doors remain open in any position
• Doors close automatically in case of fire
• Cylinder locks for access security
• Backdraftlock after inside fire
• bottom tray sheet steel, RAL 7035
• 4 storage levels sheet steel, RAL 7035
• 1 storage area per storage level
• exhaust air connection on the cabinet roof
• visual inspection of the ventilation opening
• earthing connection on the cabinet roof
• interior fittings grounded to carcass
• adjustable feet for level adjustment

FRONTIER™5000 SERIES Multi-Pro Centrifuges
Powerful and Versatile Universal Centrifuges for Virtually Every Lab
Application
Frontier 5000 Multi-Pro Centrifuges are designed for universal use in virtually every application in research, industrial & clinical laboratories. Combine with our range of rotors & accessories for customized use in specific applications. Available in 9 models with capacities from 0.2 ml to 4 × 750 ml - and feature high speed performance at maximum volume, automatic rotor identification and safety features.
Standard Features Include
• Powerful Platform Offers Maximum Flexibility for a Range of Applications
Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories.
• Intuitively Designed for User-Friendly Operation
The intuitive design of the centrifuges & accessories enable easy access to parameter settings, and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
• Solid Engineering Ensures Reliability and Durability
The performance of these centrifuges is propelled by German engineering, and high-quality components for reliable use. Constructed of chemical-resistant stainless steel to ensure durability in lab use.
• Increased Safety
With Built-in Protective Features Frontier 5000 Series is equipped with protective features, including automatic over-speed protection, imbalance detection and self-diagnostic system to ensure reliable use and operator safety.

BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe working thanks to ATEX-compliant safety concept
• Also option of modular complete system with vacuum pump and pump chamber
Important characteristics
• Temperature range: +9 °C above ambient temperature to +110 °C
• ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Intuitive touchscreen controller with graphical pressure and temperature display
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• Pressure control device for heating activated from < 100 mbar
• 2 aluminum expansion racks, can be custom-positioned
• Universal connection for ventilation with ambient air or inert gas
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window
• Computer interface: Ethernet
Optional equipment
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function

BINDER’s VD series vacuum drying chambers deliver impressive performance through their precise temperature control and gentle drying. The patented expansion rack technology from BINDER also optimizes heat transfer. The shelves can be repositioned for flexible placement and the interior of the chamber is easy to clean.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe work thanks to proven safety concept
• Also option of modular complete system with vacuum pump and pump chamber
• Important characteristics
• Temperature range: +9 °C above ambient temperature to +220 °C
• Controller with digital display of pressure and temperature
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• 1 aluminum expansion rack, can be custom-positioned
• Inert gas connection
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window with option of interior lighting
• Computer interface: Ethernet
• 2 relay outputs, 24 V DC (max. 0.4 A)
Optional equipment
• Touchscreen Controller - Graphical display of main process parameter
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function

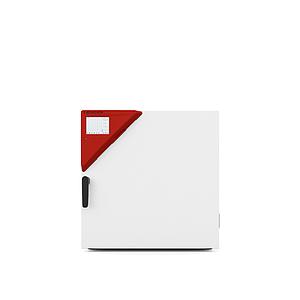

The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
Benefits
• Easy handling
• Accurate temperature control
• Simple and ergonomic door opening
Important characteristics
• Temperature range: +10 °C above ambient temperature to +250 °C
• APT.line™ preheating chamber technology
• Forced convection
• Adjustable exhaust air flap
• Controller with timer function
• 1 chrome-plated rack, incl. shelf supports
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
