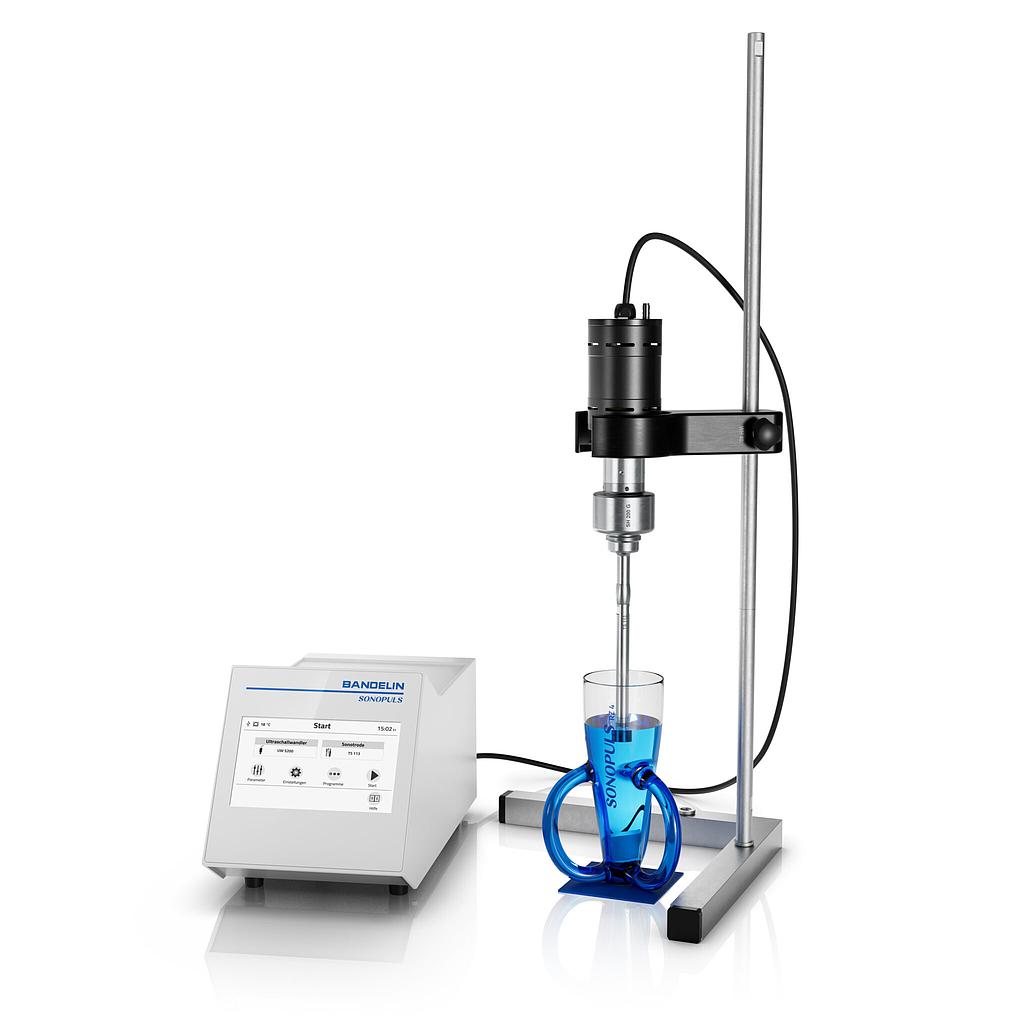

Bandelin SONOPULS HD 5200 ultrasonic homogeniser
Product features
• Gentle sonication of medium to large sample volumes (5–1000 ml)
• 20 kHz operating frequency with up to 200 W power
• Compatible with probes of 3–25 mm diameter
• Precise amplitude control from 10–100%
• AMPLICHRON® technology for constant amplitude stability
• Pulsation mode and integrated timer for controlled processing
• Large display and program memory for easy operation
• Ideal for cell disruption, emulsification, and homogenisation
• Suitable for degassing and sample preparation for particle analysis
• Ready-to-use system including generator, transducer, and accessories
The HD 5200 is ideal for gentle sonication of medium sample volumes in the range of 5-1000 ml at 20 kHz and with probes with a diameter of 3-25 mm and a power of up to 200W.
Homogenisers with amplitude control 10 to 100 % and actual value display, pulsation, AMPLICHRON® circuit (guarantees constant amplitude independent of changing conditions), integrated timer, remote control.
Areas of application
• Disruption of cells, bacteria, viruses, tissue (cell disruption)
• Production of finest emulsions
• Homogenising substances
• Degassing of liquids
• Sample preparation for particle size analysis
• Acceleration of chemical reactions
Properties
• More functionality
• For volumes from 5-1000 ml
• Flexible application possibilities
• Large display
• Programme memory
Ready-to-use set:
for volumes from 5 -1000 ml
Ultrasonic nominal power max. 200 W
- Ultrasonic generator GM 5200
- Ultrasonic transducer UW 5200
- Booster horn SH 200 G
- Sonotrode TT 213, Ø 13 mm
(for volumes 20-900 ml)
- incl. tool for mounting the probes
Technical data
• Sonication volume [ml]: 5-1000
• Nominal ultrasonic power [W]: 200
• Power setting: max. 200
• Ultrasonic frequency [kHz]: 20 ± 0,5
• Sonotrode diameter [mm]: 13
• Probe length [mm]: 130
• Time setting [min]: 9 h: 59 min: 59 s or continuous operation
• Pulsation times: Working intervals 0.5-600 s: Rest intervals 0.3-600 s
• Energy display: Ws
• Heat output [W]: 200
Specifications for Bandelin SONOPULS HD 5200 ultrasonic homogeniser
| Sample volume range (ml) | 5...1000 |
| Nominal ultrasonic power max. (W) | 200 |
