Binder CBS 260 CO₂ incubator
• Maximum usable space with minimal footprint and excellent ease of use
• Minimum risk of contamination thanks to uncompromising hot air sterilization
• Fanless, easy-to-clean hygienic interior without fixtures
• Simple and fast cleaning thanks to a seamless inner chamber
• Temperature range: +6 °C above ambient temperature to +50 °C
• Humidity range: 90 to 95% RH
• CO₂ control range: 0 to 20 vol.% CO₂
• Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
• Humidification system with condensation protection
• CO₂ gas mixing jet with Venturi effect
• CO₂ sensor with infrared technology
• LCD to display temperature and CO₂ along with additional information and alarms
• Internal data logger, measured values can be read out in open format via USB
• Tightly fitted inner door made of safety glass
• Seamless stainless steel inner chamber
• Perforated shelves, stainless steel
• Troubleshooting system with visual and acoustic alarms
• Interfaces: Ethernet, USB, zero-voltage alarm contact

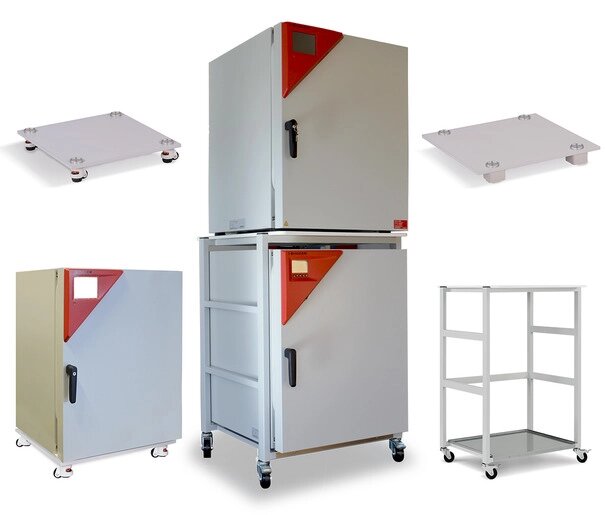

• Units can be stacked with stacking adapters; the CB-S is suitable for stacking with CB and CBF models of the same size
Series CB-S incubators are suitable for routine cell cultivation applications: They are free from contamination due to 180 °C hot-air sterilization and reliable pH stability thanks to the drift-free infrared CO₂ measurement system.
Benefits
• Maximum usable space with minimal footprint and excellent ease of use
• Minimum risk of contamination thanks to uncompromising hot air sterilization
• Fanless, easy-to-clean hygienic interior without fixtures
• Simple and fast cleaning thanks to a seamless inner chamber
Important characteristics
• Temperature range: +6 °C above ambient temperature to +50 °C
• Humidity range: 90 to 95% RH
• CO₂ control range: 0 to 20 vol.% CO₂
• Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
• Humidification system with condensation protection
• CO₂ gas mixing jet with Venturi effect
• CO₂ sensor with infrared technology
• LCD to display temperature and CO₂ along with additional information and alarms
• Internal data logger, measured values can be read out in open format via USB
• Tightly fitted inner door made of safety glass
• Seamless stainless steel inner chamber
• Perforated shelves, stainless steel
• Troubleshooting system with visual and acoustic alarms
• Interfaces: Ethernet, USB, zero-voltage alarm contact
• Units can be stacked with stacking adapters; the CB-S is suitable for stacking with CB and CBF models of the same size
Optional equipment
• Copper interior fittings consisting of copper shelves and copper-plated water pan
• Stacking adapter for secure, space-saving installation
• CO₂ gas tank changer for connecting two gas tanks to one or two incubators
• CO₂ shaker with corrosion-resistant components in a stainless-steel housing
• APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
• Services – wide range of services to ensure that the unit functions correctly
Specifications for Binder CBS 260 CO₂ incubator
| Interior volume (l) | 267 |
| Internal dimension W x H x D (mm) | 620x750x575 |
| Number of shelves (std./max.) | 2/8 |
| Housing dimensions W x H x D (mm) | 740x1020x785 |
