DÜPERTHAL BATTERY station XL

    This combination does not exist.

    Enquiry

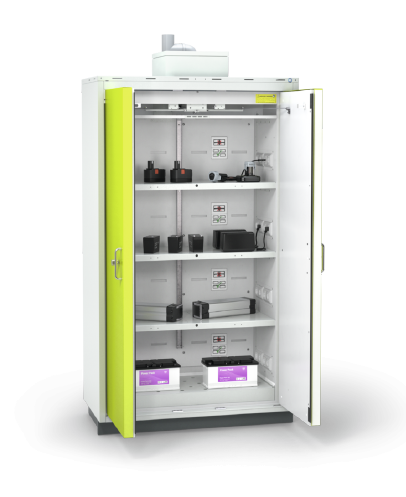

    Classical door technology (door handle) For the storage and charging of lithium-ion batteries Typetested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, DIN 31000, and IEC 61439 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark
    Construction and colour
    • Outer carcass sheet steel, RAL 7035
    • Doors sheet steel, PANTONE 389 C
    • Inner carcass decor panels, RAL 7035
    • Load adapter (tested), RAL 7035
    Fittings and features
    • Doors remain open in any position
    • Doors close automatically in case of fire
    • Cylinder locks for access security
    • Backdraftlock after inside fire
    • Bottom tray sheet steel, RAL 7035
    • 4 storage levels sheet steel, RAL 7035
    • 1 storage area per storage level
    • 4 sockets per storage area
    • Exhaust air connection on the cabinet roof
    • Visual inspection of the ventilation opening
    • Earthing connection on the cabinet roof
    • Interior fittings grounded to carcass
    • Adjustable feet for level adjustment
    • Set-back base, RAL 7015
    • Plug ready connection to a power supply
    • Connectiontype: CEE L+N+PE 6h
