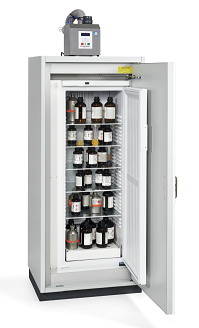

DÜPERTHAL COOL LINE Type 90 XL Standard Safety cabinet with integrated refrigerator
• Safety storage cabinet with built-in refrigerator
• The refrigerator door opens/closes separately.
• Maximum fire protection
• 90-minute fire resistance
• Explosion-protected interior: Ex II 3G, Ex nA II T6, SNCH 07, ATEX 0124 X
• Automatic closing in case of fire
• Continuous temperature regulation from +1°C to +15°C.
• Outer frame made from powder-coated sheet steel
• Outer dimensions: 895 x 745 x 2080 (W x D x H) mm
• Inner dimensions: 550 x 430 x 1400 (W x D x H) mm
• Voltage: 230 V / 50 Hz
• Inner fittings:
• 5 shatterproof glass shelves
• 1 bottom tray
• 1 perforated sheet insert
• Equipment: Exhaust air monitoring unit and fan
Safety cabinet with built-in refrigerator
• Efficient cooling: The cooling compartment has its own door for efficient and economical cooling.
• Refrigerator door is opened/closed separately
• Refrigerant: R 600a
• Maximum fire protection: Maximum safety with Type 90 technology and cooled interior.
• Interior of refrigerator explosion protected Ex II 3G, Ex nA II T6,SNCH 07, ATEX 0124 X.
• Self-closing in the event of fire: In case of fire, a thermocouple automatically initiates the uninterrupted closing of the doors. The closure control system ensures that the refrigerator is also self-closing.
• Continuous temperature control: the temperature can be adjusted continuously from +1 degrees °C to +15 degrees °C
• Constant temperatures: The integrated fan ensures stable temperatures.
• Heat energy: Heat energy is extracted via the ventilation openings and the exhaust air (connection) sockets. The air flow is monitored and if the ventilation fails, the refrigerator is automatically switched off. This is done using an ex- haust air monitoring unit for emitting warning signals, which is also available with a ventilator.
• Outer dimensions: 895 x 745 x 2080 (WxDxH) mm
• Inner dimensions: 550 x 430 x 1400 (WxDxH) mm
• Voltage: 230 V / 50 Hz
Inner fittings:
• 5 shelves made from shatterpoof glass
• 1 bottom tray: The easily removable bottom tray can be cleaned and discharged without effort.
• 1 perforated sheet insert made of powder-coated sheet steel.
Specifications for DÜPERTHAL COOL LINE Type 90 XL Standard Safety cabinet with integrated refrigerator
| Net weight (kg) | 499 |
| Number of shelves | 6 |
| Door technology | classic |
| Product dimensions (WxDxH) (mm) | 895x745x2080 |
