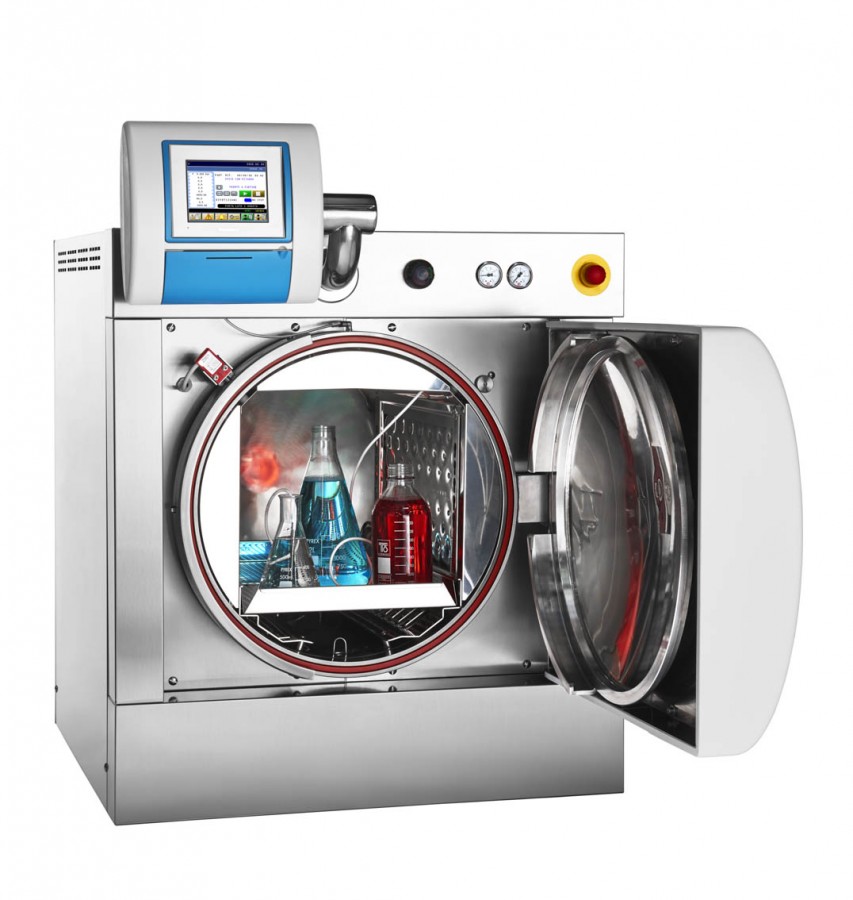

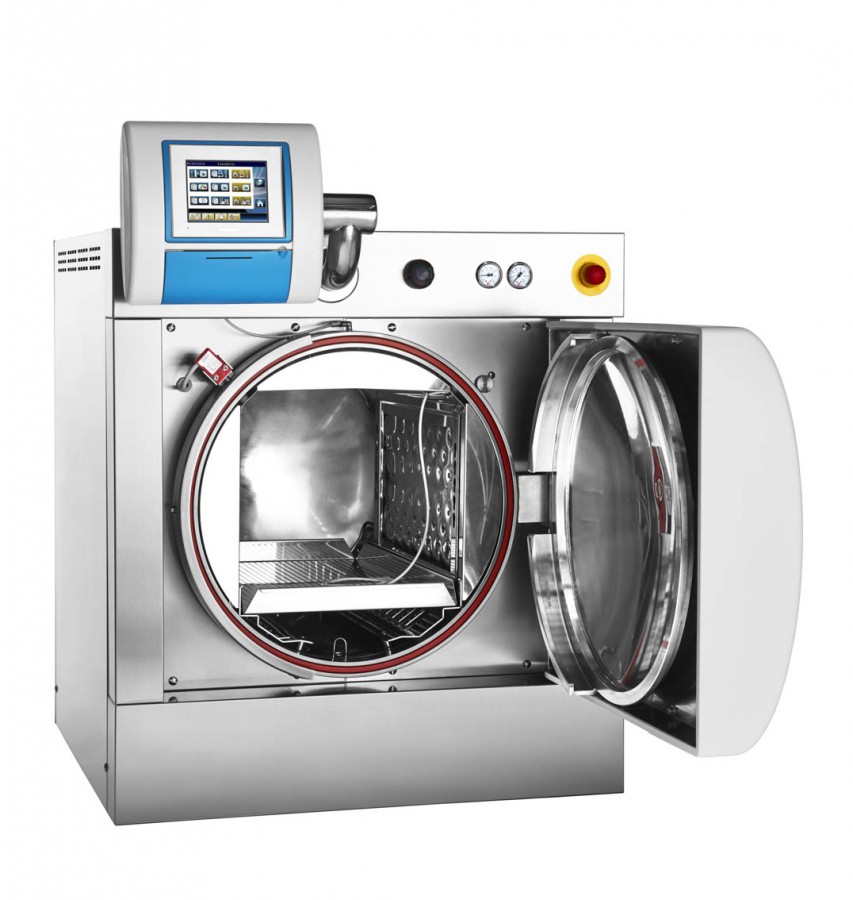

FOB3-TS benchtop lab sterilizer
FOB – BENCHTOP LAB STERILIZER
HIGH-PERFORMANCE AND MODULAR DESIGN.
Applications: Food, Bio-Pharmaceutical, Cosmetics, Microbiology, Packaging
Loads: Canned food, Sealed & unsealed containers, Large volume parenterals, Machine parts, Blood bags, Syringes, Tools, Wrapped tools, Culture Media, Garments, Glassware
Processes: Sterilization
Useful chamber capacity: 90
FOB is a benchtop lab sterilizer that combines excellent performance with high quality materials, ease of use and reduced utilies consumption.
The FOB series are suitable for many different applications, making it the perfect choice to satisfy modern laboratory needs. FOB series autoclaves combines technology and know-how, and can be used by very different laboratories, such as:
• Private and public microbiology labs.
• High schools and Universities.
• Research institutes, life sciences and biotech labs.
• Clinical diagnostic labs.
• Agriculture, environmental and veterinary labs.
• Material testing laboratories.
• Quality control lab´s in pharma, food/beverage, chemistry/cosmetics and other industrial sectors.
FOB may be adapted to satisfy various laboratory applications and the treatment of many different types of loads, including waste with high pathogen risk, in addition to solid porous goods, packaged items and liquid/media, in open and sealed containers.
FOB series autoclaves are used in highly specialized fields thanks to a wide selection of options on a modular system. Hence, FOB sterilizers can be configured to meet the most demanding user’s requirements.
DESIGN AND TECHNICAL FEATURES
A unique opening/closing door system with patented pneumatic gasket seal guarantees perfect airtight, maximum reliability and improved safety for operators. Moreover, FOB autoclaves can be equipped with safety device to prevent door opening.
Chambers, pneumatic valves and hydraulic components are made of 316L stainless steel, with sanitary electropolished finishing. FOB is designed to assure wide and easy access to technical area for maintenance activities.
Easy installation and quick connection to the utilities makes FOB series autoclave even more attractive. To assure energy savings, FOB has a heat exchanger recovery system installed out of the chamber to reuse the heat of condensate for water pre-heating before the steam generation.
FOB series is equipped with DCS 20 process controller: 30 cycles easy to customize in a multi-user environment. Large touch-screen color display and interface for remote monitoring via Ethernet control. DCS 20 process controller is fully validated and documented.
KEY BENEFITS
• Modular concept: extremely flexible configuration.
• Energy saving system.
• Increase of the maximum temperature and the pressure
• Adjustable operator display for an ergonomic postioning.
• Space optimization: load capacity improved
• Extensive choice of loading equipment (racks, adjustable shelves, baskets, etc.).
• High level of programming with 30 configurable cycles .
• Special test programs (i.e. Bowie-Dick, vacuum, pressure leak, etc.) for routine check of sterilizer efficiency.
COMPLIANCE TO
• PED Directive 2014/68/UE – Pressure equipment
• Machine Directive Macchine 2006/42/EC
• EMC Directive 2014/35/UE
• LVD Directive 2006/95/UE
FOB – BENCHTOP LAB STERILIZER
HIGH-PERFORMANCE AND MODULAR DESIGN.
Applications: Food, Bio-Pharmaceutical, Cosmetics, Microbiology, Packaging
Loads: Canned food, Sealed & unsealed containers, Large volume parenterals, Machine parts, Blood bags, Syringes, Tools, Wrapped tools, Culture Media, Garments, Glassware
Processes: Sterilization
Useful chamber capacity: 90
FOB is a benchtop lab sterilizer that combines excellent performance with high quality materials, ease of use and reduced utilies consumption.
The FOB series are suitable for many different applications, making it the perfect choice to satisfy modern laboratory needs. FOB series autoclaves combines technology and know-how, and can be used by very different laboratories, such as:
• Private and public microbiology labs.
• High schools and Universities.
• Research institutes, life sciences and biotech labs.
• Clinical diagnostic labs.
• Agriculture, environmental and veterinary labs.
• Material testing laboratories.
• Quality control lab´s in pharma, food/beverage, chemistry/cosmetics and other industrial sectors.
FOB may be adapted to satisfy various laboratory applications and the treatment of many different types of loads, including waste with high pathogen risk, in addition to solid porous goods, packaged items and liquid/media, in open and sealed containers.
FOB series autoclaves are used in highly specialized fields thanks to a wide selection of options on a modular system. Hence, FOB sterilizers can be configured to meet the most demanding user’s requirements.
DESIGN AND TECHNICAL FEATURES
A unique opening/closing door system with patented pneumatic gasket seal guarantees perfect airtight, maximum reliability and improved safety for operators. Moreover, FOB autoclaves can be equipped with safety device to prevent door opening.
Chambers, pneumatic valves and hydraulic components are made of 316L stainless steel, with sanitary electropolished finishing. FOB is designed to assure wide and easy access to technical area for maintenance activities.
Easy installation and quick connection to the utilities makes FOB series autoclave even more attractive. To assure energy savings, FOB has a heat exchanger recovery system installed out of the chamber to reuse the heat of condensate for water pre-heating before the steam generation.
FOB series is equipped with DCS 20 process controller: 30 cycles easy to customize in a multi-user environment. Large touch-screen color display and interface for remote monitoring via Ethernet control. DCS 20 process controller is fully validated and documented.
KEY BENEFITS
• Modular concept: extremely flexible configuration.
• Energy saving system.
• Increase of the maximum temperature and the pressure
• Adjustable operator display for an ergonomic postioning.
• Space optimization: load capacity improved
• Extensive choice of loading equipment (racks, adjustable shelves, baskets, etc.).
• High level of programming with 30 configurable cycles .
• Special test programs (i.e. Bowie-Dick, vacuum, pressure leak, etc.) for routine check of sterilizer efficiency.
COMPLIANCE TO
• PED Directive 2014/68/UE – Pressure equipment
• Machine Directive Macchine 2006/42/EC
• EMC Directive 2014/35/UE
• LVD Directive 2006/95/UE
Specifications for FOB3-TS benchtop lab sterilizer
| Max. operating pressure (bar) | 3.5 |
| Overall dimensions (w x d x h in mm) | 830/1083/1022 |
| Chamber volume (liter) | 153 |
| Working volume (liter) | 90 |
| Loading height (mm) | 285 |
| Interior dimensions: (Ø x h) (mm) | 500 x 700 |
| Loading capacity (sterilization unit) | 1 |
| Number of doors | 1 |
| Empty weight (kg) | 188 |
| Max. operating temperature (°C) | 148 |
