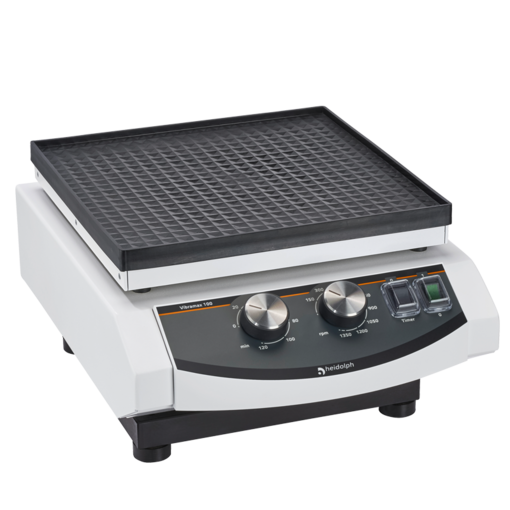

Heidolph Vibramax 100 platform shaker
• The compact one with a load capacity of 2 kg
• Due to the 3 mm orbit and the speed of 150 - 1,350 rpm, this circular vibrating shaker is ideal for suspending, for solubility studies and leaching studies.
• The optional tension roller attachment offers the option of using different container sizes. In combination with the non-slip rubber mat, the vessels are shaken safely even at high speeds. In addition, a timer with up to 120 minutes is integrated, which triggers an acoustic signal after expiration.
• Technical Data
• Motion vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 3 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 220 x 220 mm
• Max. Load: 2 kg
• Overheat protection: self resetting
• Protection class DIN EN 60529: IP 30
• The compact one with a load capacity of 2 kg
• Due to the 3 mm orbit and the speed of 150 - 1,350 rpm, this circular vibrating shaker is ideal for suspending, for solubility studies and leaching studies.
• The optional tension roller attachment offers the option of using different container sizes. In combination with the non-slip rubber mat, the vessels are shaken safely even at high speeds. In addition, a timer with up to 120 minutes is integrated, which triggers an acoustic signal after expiration.
• Technical Data
• Motion vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 3 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 220 x 220 mm
• Max. Load: 2 kg
• Overheat protection: self resetting
• Protection class DIN EN 60529: IP 30
Specifications for Heidolph Vibramax 100 platform shaker
| Rotation speed range (rmp) | 150...1350 |
| Shaking orbit | 3 |
| Platform size (mm) | 220x220 |
