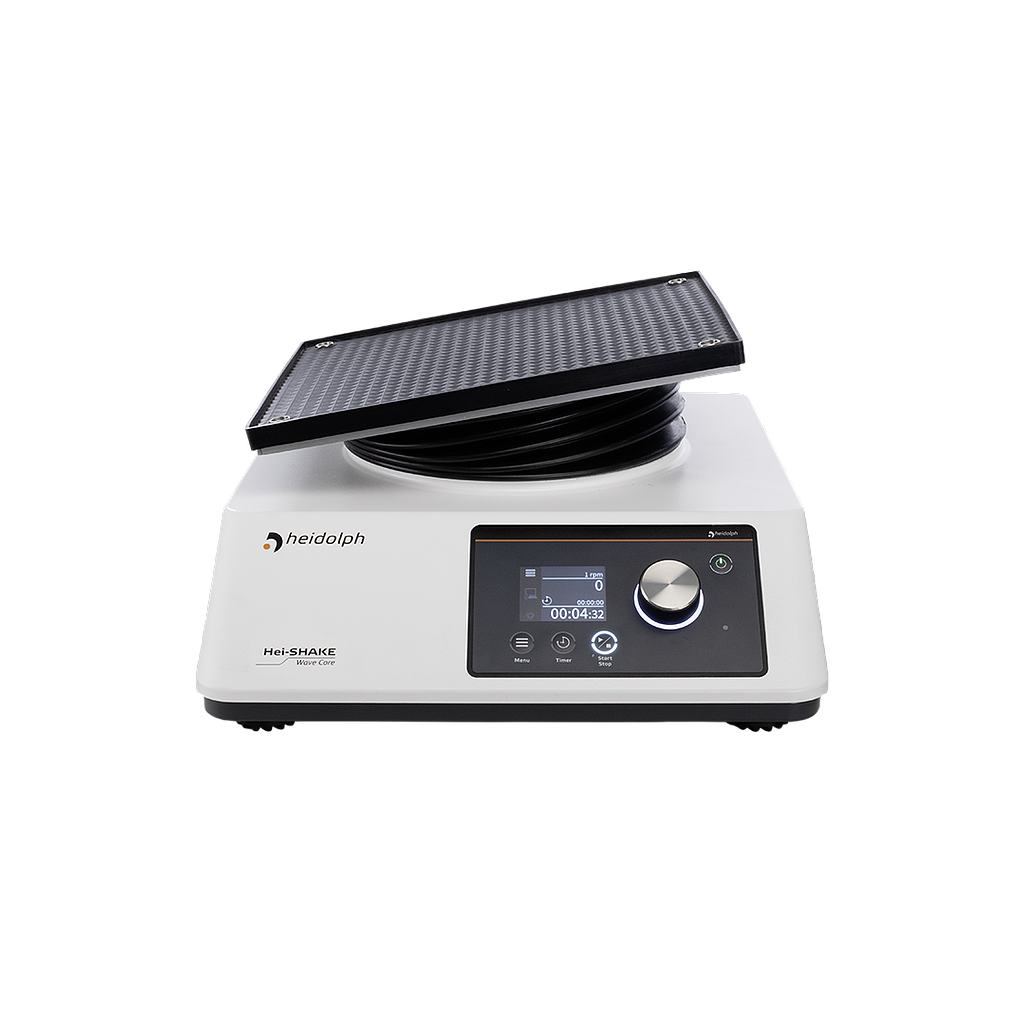

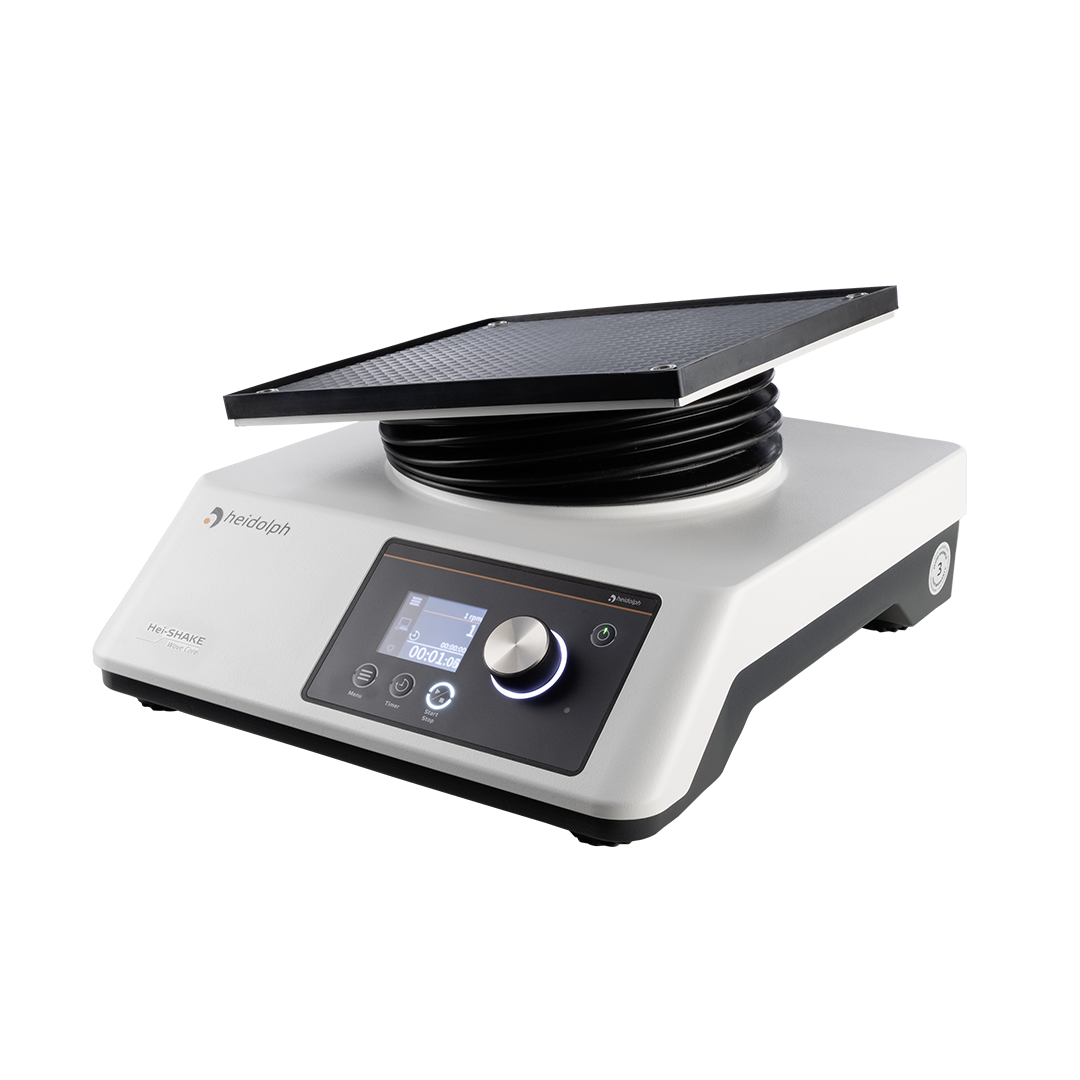

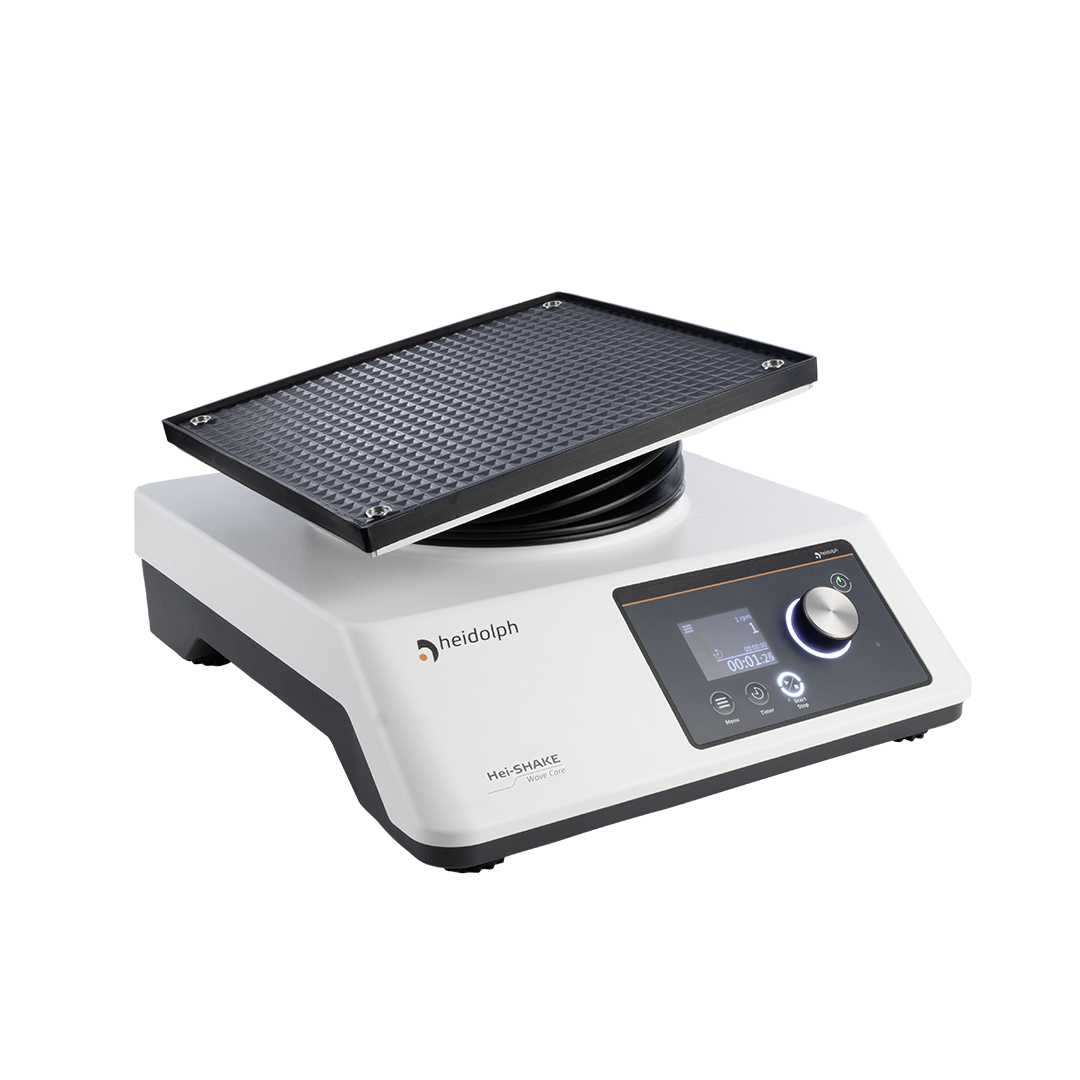

Heidolph Hei-SHAKE Wave 5° Core Platform Shaker
Product features
• 3D wave shaking motion for uniform sample handling
• Speed range: 1–80 rpm
• Continuous or timer-controlled operation
• Integrated timer: 1 min – 999 h 59 min

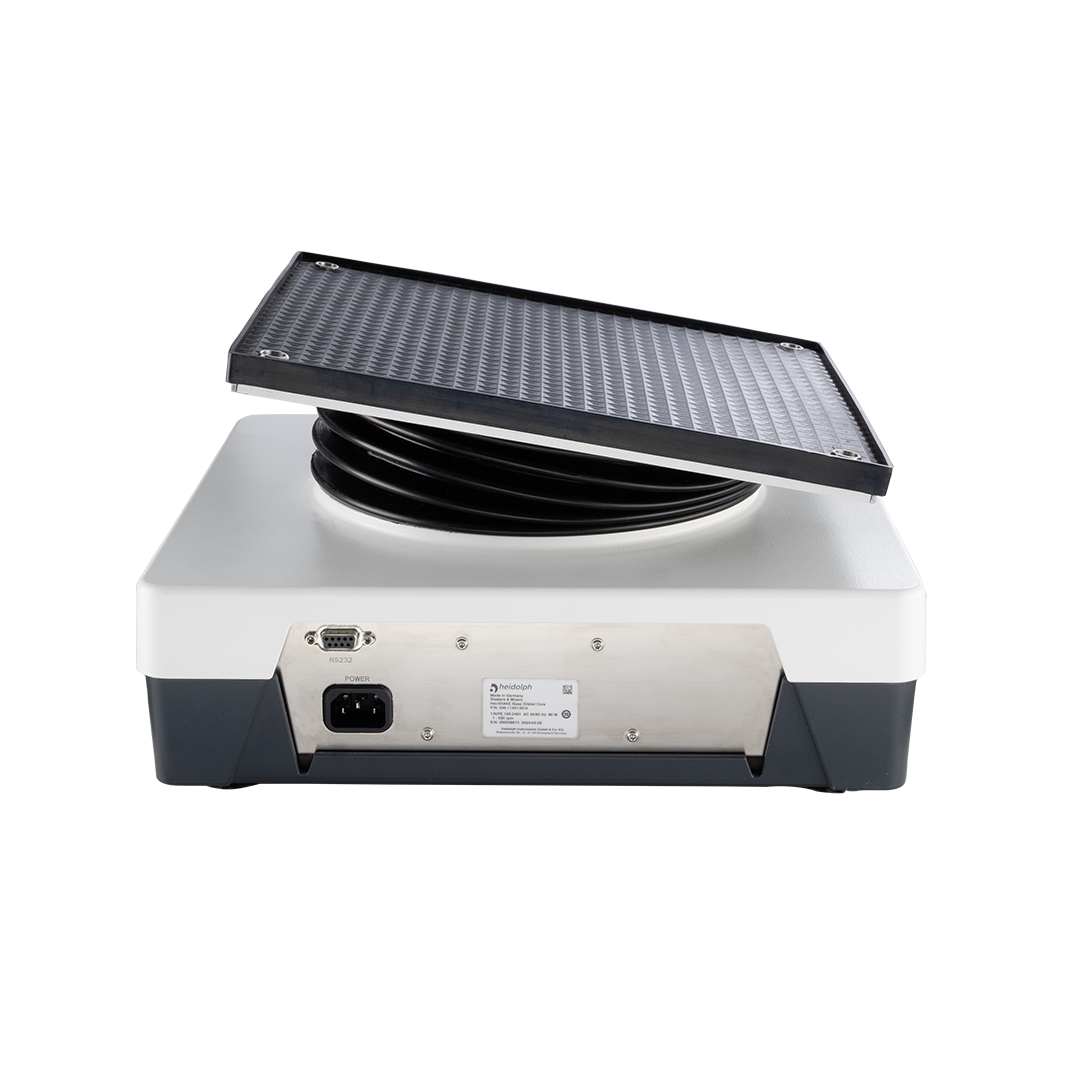

• RS 232 interface and remote control (e.g. Hei-PROCESS)
• Unattended operation with automatic restart
• Max. load capacity: 15 kg
• Stable operation across the entire speed range
• Usable area: approx. 290 × 260 mm (platform 1000)
• 5° tilt angle
• Scope of delivery: shaker with flat rubber mat 1000
• Weight: approx. 14 kg
• Dimensions (W × H × D): 356 × 203 × 403 mm
The bio-specialist for continuous rinsing
Thanks to the 3D-wave shaking movement and with a speed range of 1 – 80 rpm, continuous rinsing of the samples is ensured. Your applications can be carried out in continuous operation or by means of a timer.
The integrated timer function (1 min to 999 h 59 min) and RS 232 interface enable unsupervised operation, so that you can attend to other tasks without a worry. The device activation and partly automated processes can be carried out remotely via the connection to the PC or via server-based software, e.g. Hei-PROCESS. In addition, the automatic restart, e.g. after power failures, can be set with the user-friendly menu structure.
Scope of delivery: Shaker incl. flat rubber mat 1000
Two variants of this device are available: with a tilt angle of 10° to prevent foaming and 5° to prevent additional risks such as glass breakage and spill over of liquids.
Specifications for Heidolph Hei-SHAKE Wave 5° Core Platform Shaker
| Tilt angle (°) | 5 |
| Platform size (mm) | 290x260 |
| Speed range (clockwise/counter-clockwise rotation, RPM) | -80 - +80 |
