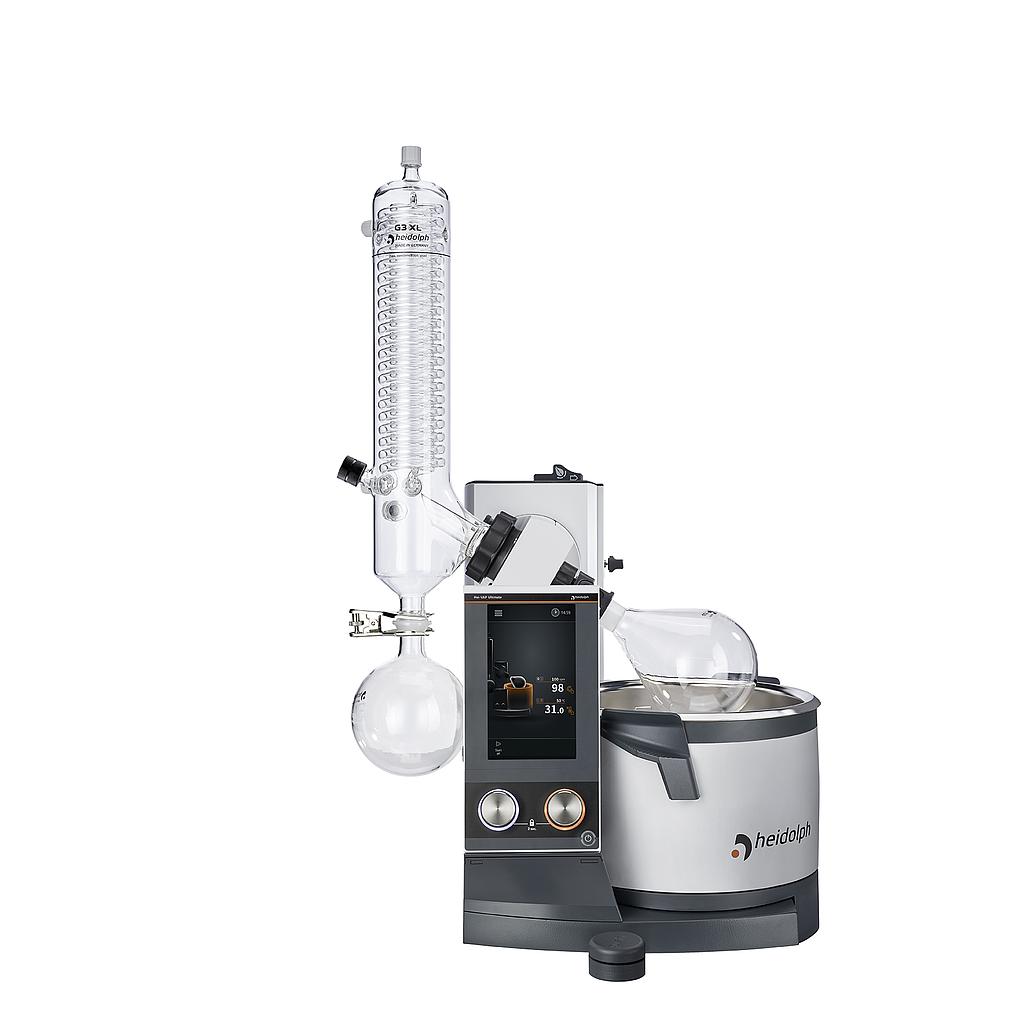

Heidolph Hei-VAP Ultimate HL/G3B XL rotary evaporator

• Hei-VAP Ultimate
• Precise setting of rotation speed and heating bath temperature on the digital touch display or – for quick access during an active process – directly via the knobs on the operating panel.
• Central operating panel with 7“ touch display
• Clear display of all values (Basic and Advanced modes)
• With timer, limitation of max. temperature, multilingual menu and text display for error messages
• Separate knobs for rotation and heating with locking function to prevent accidental readjusting
• LED ring lights and pictogram to display the activity even from a distance
• Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
• USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
• Optional display of vapor temperature
• Subsequent upgrade to Hei-VAP Ultimate Control possible, including vacuum and chiller control
• Lift: Hand lift or Motor lift
• Rotation speed range: 10 - 280 rpm
• Rotation speed indicator: 7" LCD color graphic display
• Heating capacity: 1,300 W
• Overheat protection bath: cut-off at 5 °C over set temperature via separate PT 1000
• Bath temperature setting: 7" LCD color graphic display
• Heating bath temperature control: electronic / digital
• Max. size evaporating flask: 5 l
• Timer: Yes
• Programmable ramps: Yes
• Condensing surface: 1,400 cm²
• Condensing surface XL condenser: 2,200 cm²
