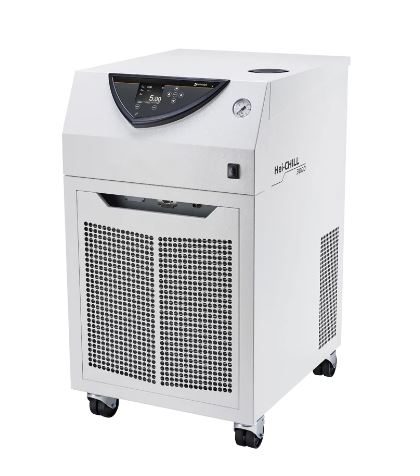

Heidolph HEI-CHILL 3000 Chiller
Recirculation cooler for high-performance rotary evaporators
• Filling opening at the top, drain tap at the rear
• Integrated programmer with 150 segments, can be divided into 5 programs
• Electronic level indicator and low-level alarm
• SmartCool system for digital, energy-saving cooling control, including automatic compressor control
• Clearly arranged control elements, large TFT display and membrane keypad
• USB interface and an alarm contact are integrated as standard features
• Temperature range: -20...+40 °C
• Cooling capacity at +20 °C (20 °C ambient temp.): 3000 W
• Pump pressure max.: 2 bar
• Pump flow max.: 20 l/min
• Thermal fluid fill volume: 20 – 33 l
• Dimensions (w/d/h): 550 x 650 x 970 mm
