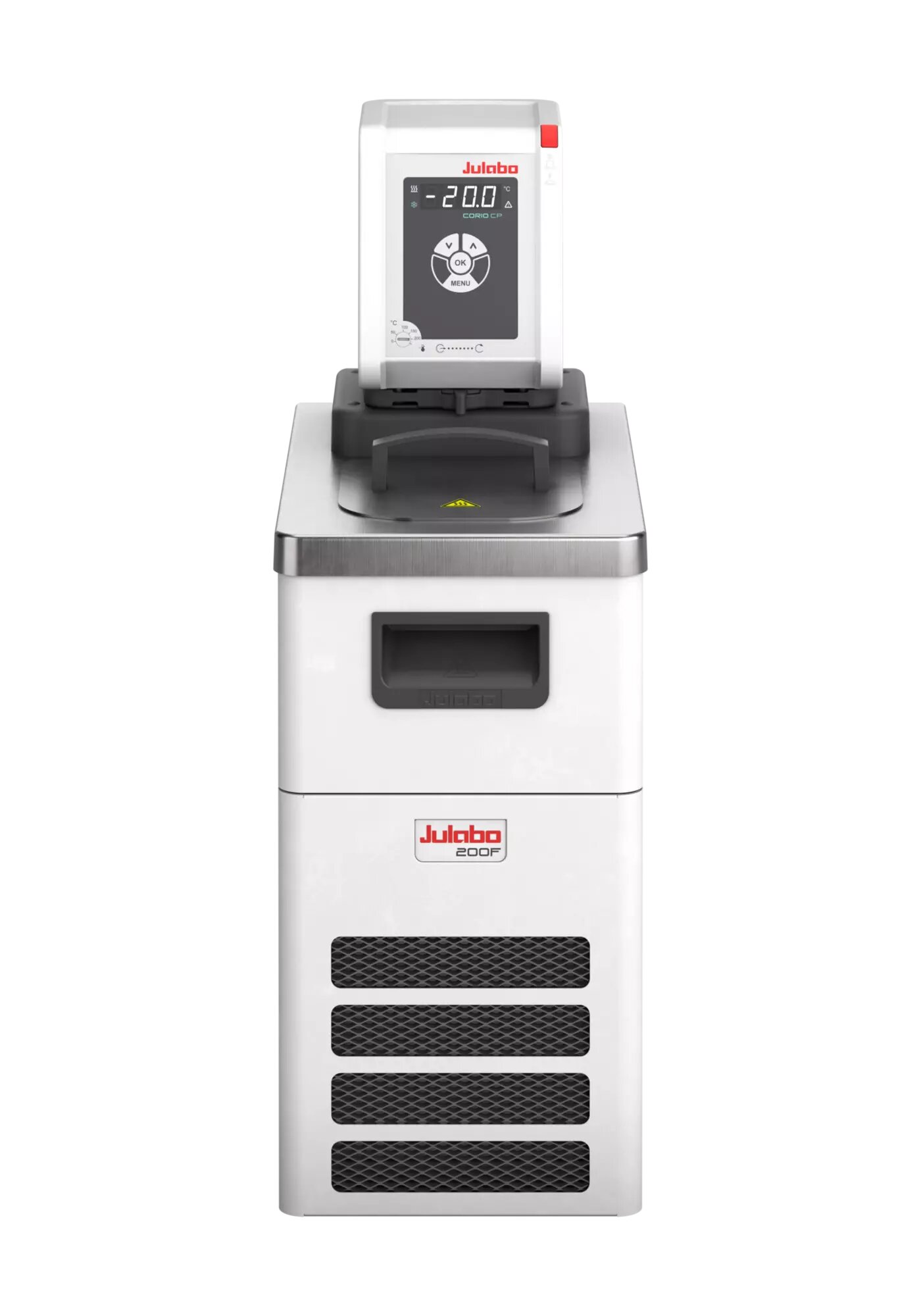

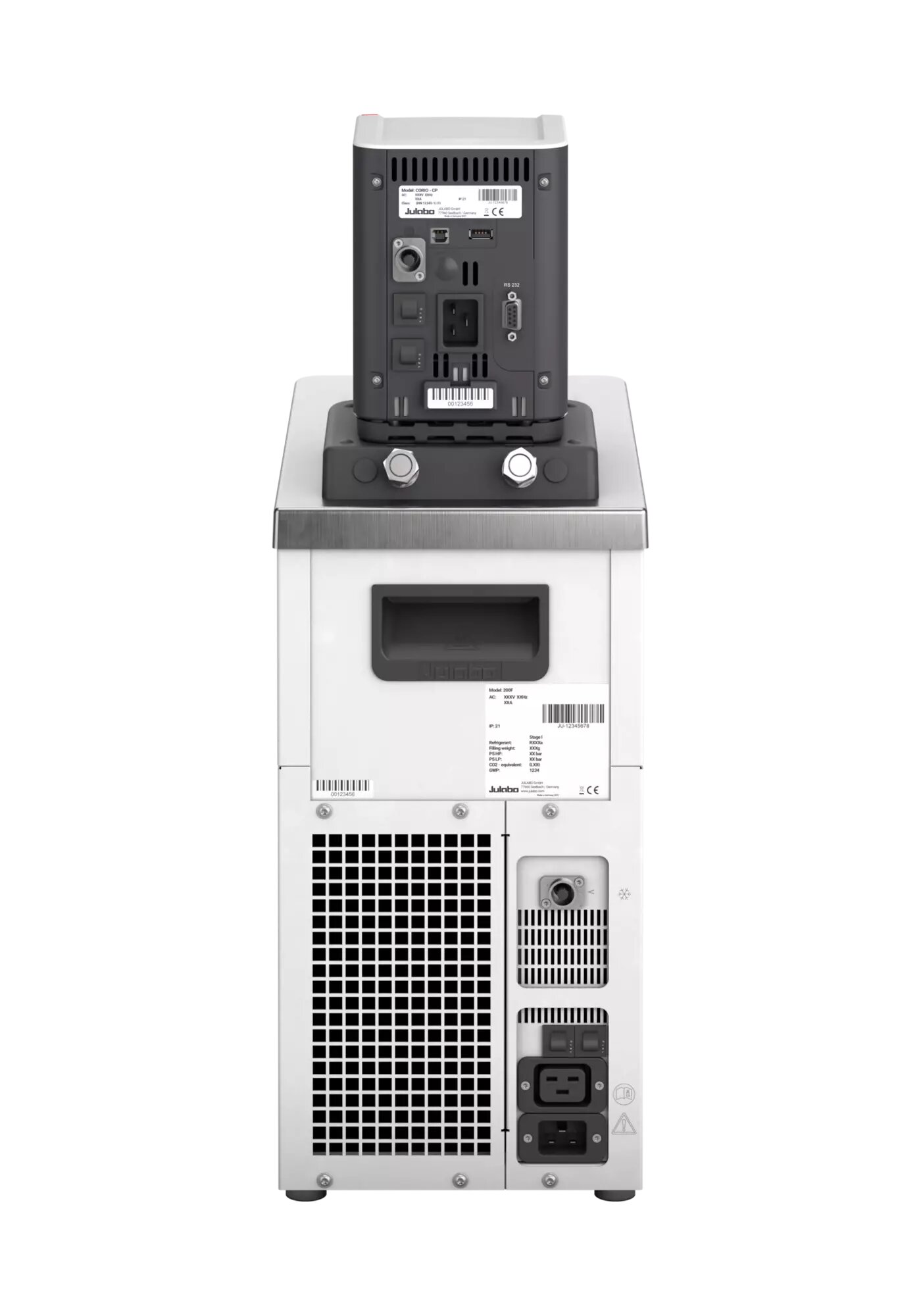

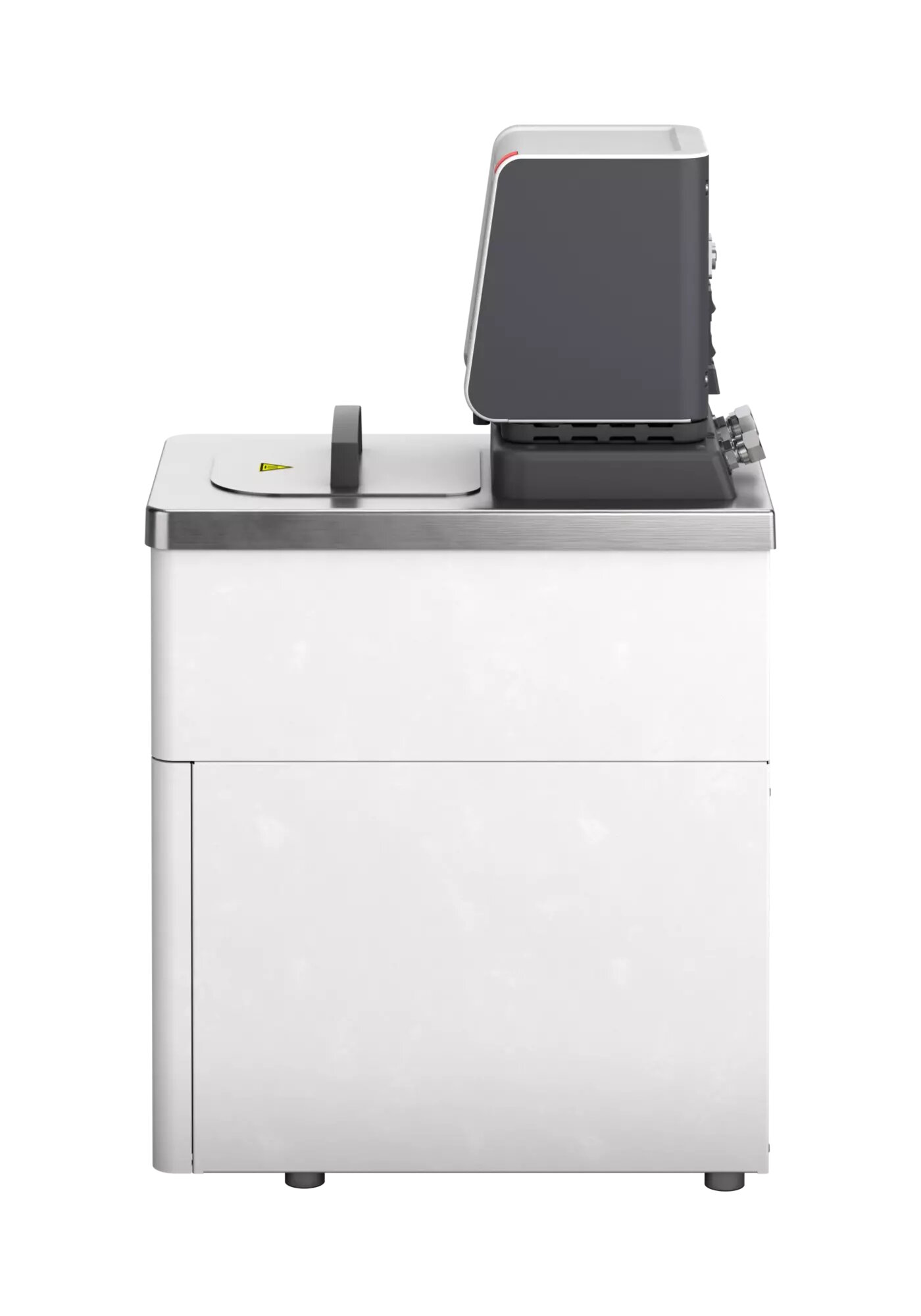

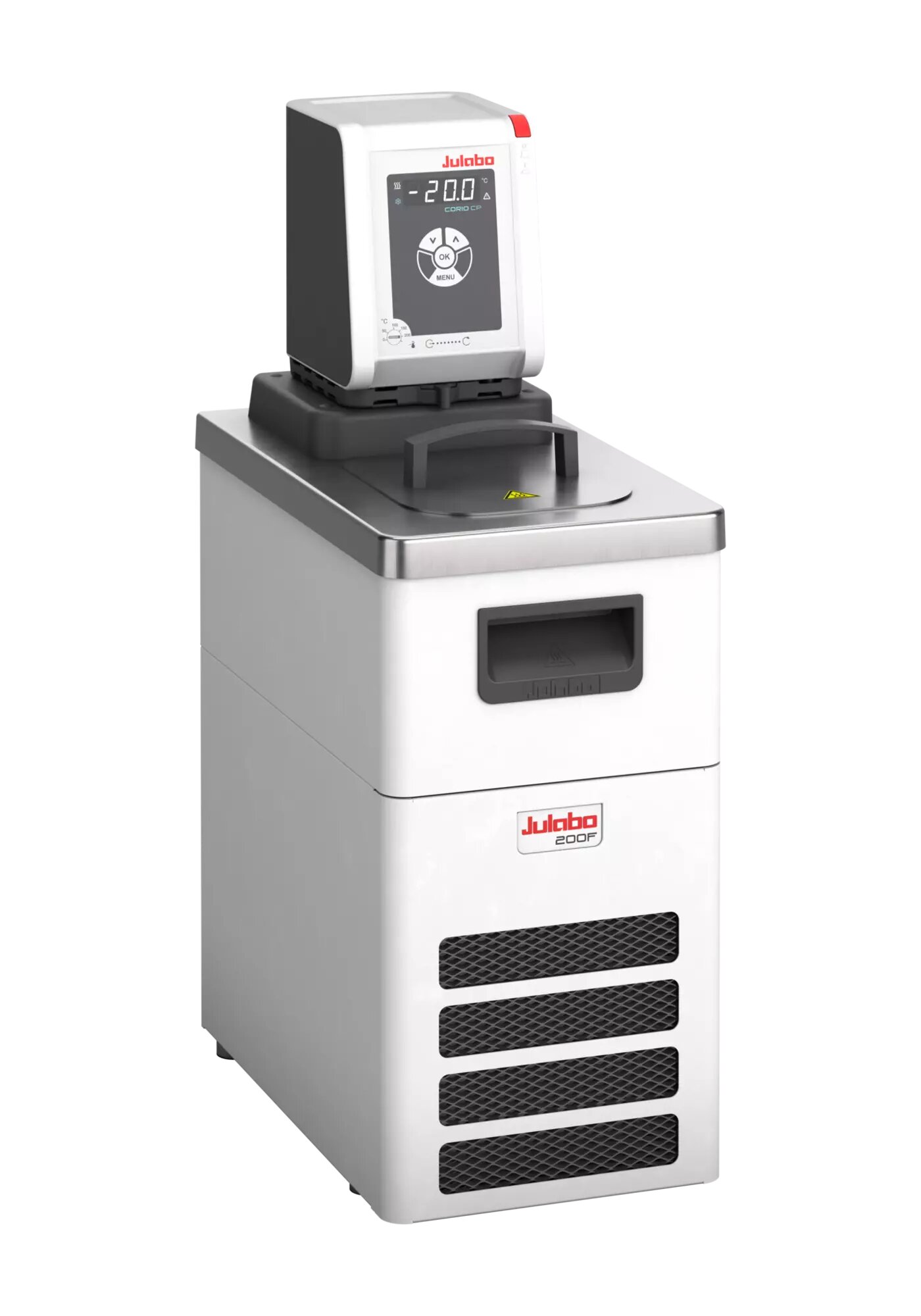

Julabo CORIO CP-200F Refrigerated/heating circulator with natural refrigerant
Refrigerated circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
Product features
• Models for internal and external applications
• Working temperature range: -20 ... +200 °C
• Cooling capacity at 20°C: 0,2 kW
• Natural, environmentally-friendly refrigerant
• Protects the climate
• Bright, white, easy to read display
• Very quiet
• Powerful and infinitely adjustable pressure pump
• USB connection
• RS232 interface for online communication
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
• Easy switching between internal and external circulation
• Integrated pump connection M16×1
• Space-saving cooling coil design yields more usable space in the bath tank
• Early warning system for low liquid level
Refrigerated circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
With a working temperature range of -20 ... +200 °C, the Refrigerated / heating circulator CORIO CP-200F delivers an outstanding cooling capacity of kW at 20°C despite its compact design. The optimized design of the bath tank and cooling coil makes the bath more spacious and user-friendly for the operator. Ventilation slots and connections are located on the front and rear, allowing several units to be placed next to each other in order to save space.
Product features
• Models for internal and external applications
• Bright, white, easy to read display
• Very quiet
• Powerful and infinitely adjustable pressure pump
• USB connection
• RS232 interface for online communication
• Bath lid and drain tap included
• Removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
• Easy switching between internal and external circulation
• Integrated pump connection M16×1
• Space-saving cooling coil design yields more usable space in the bath tank
• Early warning system for low liquid level
Specifications for Julabo CORIO CP-200F Refrigerated/heating circulator with natural refrigerant
| Working temperature range (°C) | -20...+200 |
| Temperature stability (°C) | ±0.03 |
| Cooling capacity at 20°C (kW) | 0.2 |
| Bath volume (liter) | 3…4 |
| Usable bath opening (W x L/D) (cm) | 13x15/15 |

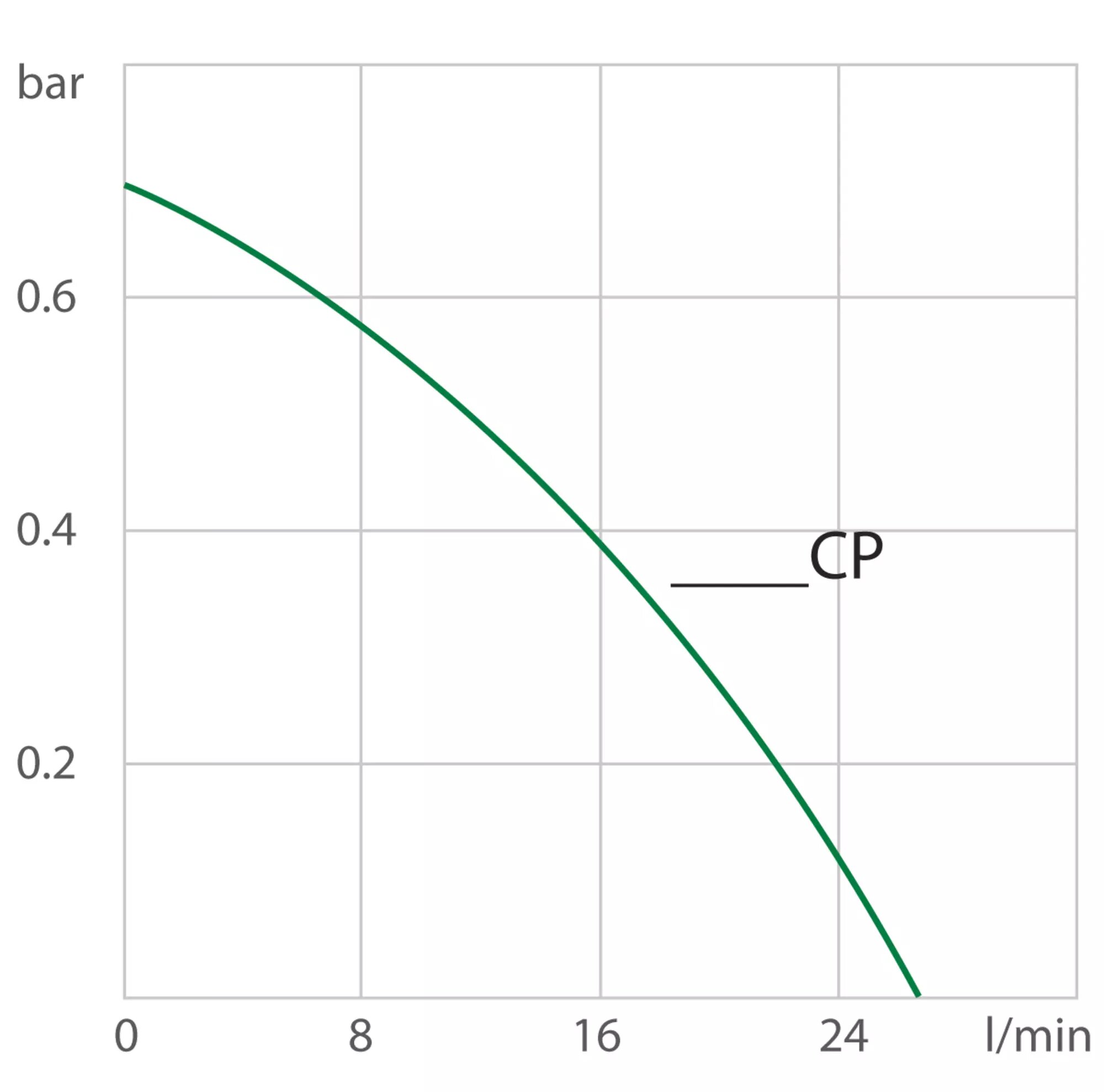

| Pump capacity flow rate (l/min) | 8...27 |
