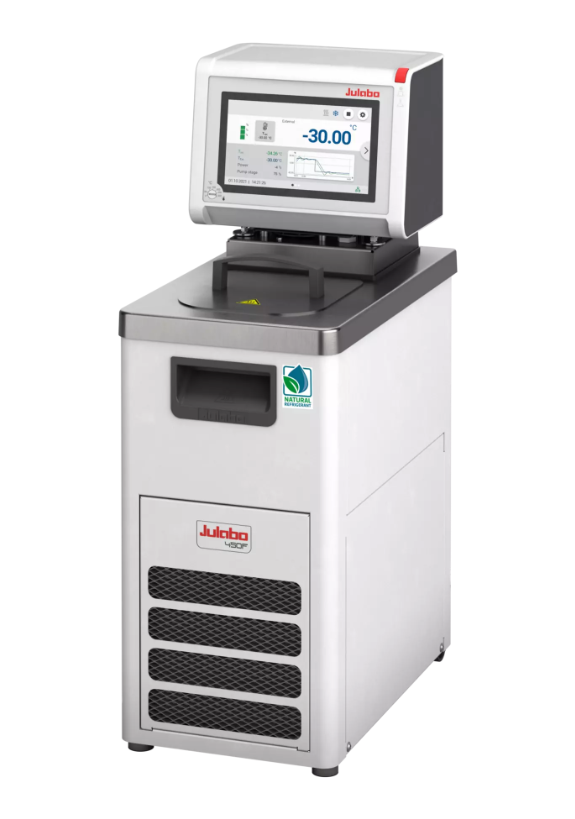

Julabo MAGIO MS-450F Refrigerated / heating circulator with natural refrigerant
with extremely powerful pressure/suction pump and intuitive touch display
• Ideal for demanding external applications
• Simple control of complex applications
• Continuously adjustable, extremely powerful pressure / suction pump

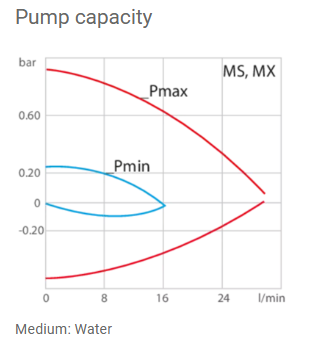

• Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Integrated programmer ICC
• External Pt100 sensor connection
• Interfaces: Ethernet, Modbus TCP/IP, RS232,RS485, Stakei, USB
• Absolute temperature calibration: 10 Point Calibration
• Classification III according to DIN 12876-1
with extremely powerful pressure/suction pump and intuitive touch display
As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. The devices offer extra strong pressure and suction pumps, thus fulfilling the highest demands for temperature control of external applications. Whether in basic research, material testing or technical systems – the MAGIO refrigerated circulators offer high-tech solutions for high customer requirements.
Product features
• Ideal for demanding external applications
• Simple control of complex applications
• Continuously adjustable, extremely powerful pressure / suction pump
• Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Integrated programmer ICC
• External Pt100 sensor connection
• Interfaces: Ethernet, Modbus TCP/IP, RS232,RS485, Stakei, USB
• Absolute temperature calibration: 10 Point Calibration
• Classification III according to DIN 12876-1
Specifications for Julabo MAGIO MS-450F Refrigerated / heating circulator with natural refrigerant
| Cooling capacity at 20°C (kW) | 0.46 |
| Temperature range (°C) | -30...+200 |
| Bath volume (liter) | 3...4 |
| Usable bath opening (W x L/D) (cm) | 13x15/15 |
| Pump capacity flow rate (l/min) | 16...31 |
| Heating capacity (kW) | 2 |
| Temperature stability (°C) | ±0.01 |
