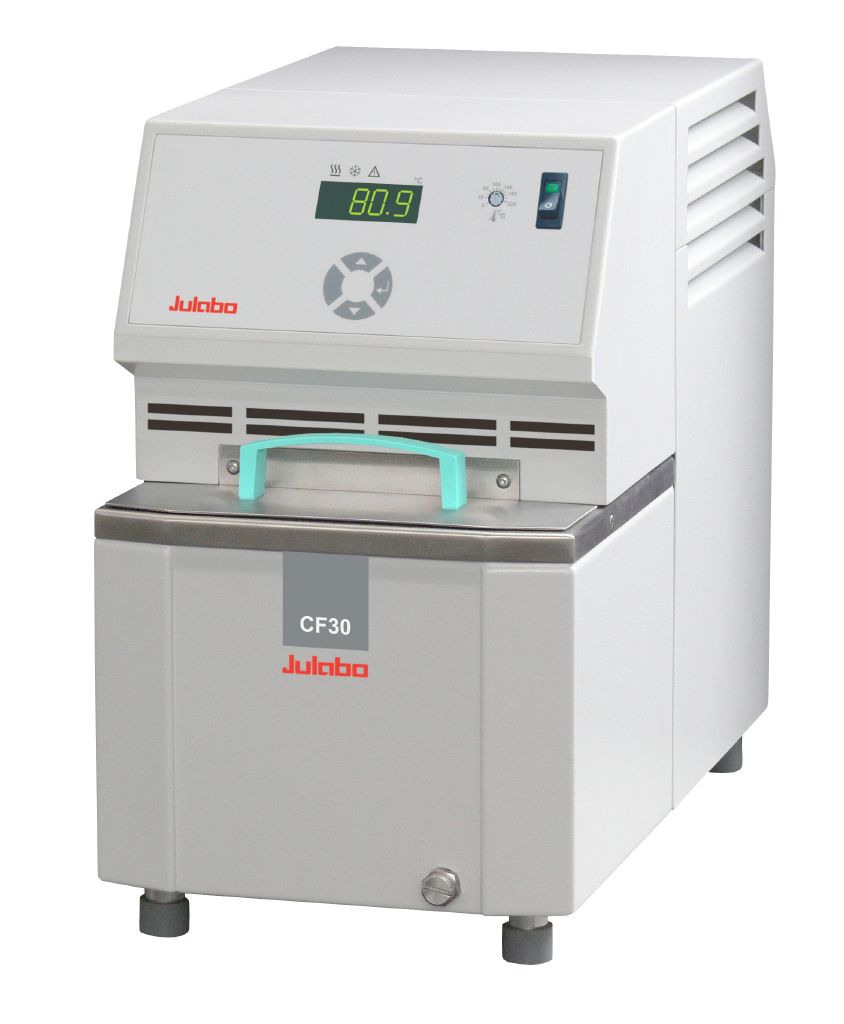

Julabo CF30 Cryo-compact circulator

  • Product type
  • Brand
  • Minimum temperature value category (℃)
  • Maximum temperature value category (℃)
  • Cooling capacity at 20℃ value category (kW)
  • Cooling capacity at 20°C (kW)
  • Temperature range (°C)
  • Bath volume (liter)
  • Usable bath opening (W x L/D) (cm)
  • Bath volume value category (liter)
  • Pump capacity flow rate (l/min)
  • Heating capacity (kW)
  • Temperature stability (°C)

This combination does not exist.

Enquiry

• Ergonomic design and easy operation
• Small overall dimensions for lowest space requirement
• Splash-proof keypad
• Large, bright LED display
• Precise PID temperature control
• RS232 interface for PC connection
• Adjustable high temperature cut-out, visible via display
• Pump connections for external temperature applications
• Bath opening for temperature control of small objects in the bath
• Front drain
• Extra bright displays, easy to read from a distance
• Precise temperature control
• Unique early warning system for low liquid level
• ATC3 3-Point-Calibration
• Class III (FL) according to DIN 12876-1

The Cryo-Compact Circulators of the CF Series provide powerful cooling and heating capabilities in a space-saving, compact design. The instruments feature 2 kW heating capacity and classification III according to DIN 12876-1. The Cryo-Compact Circulators have pump connections for external temperature control applications and a bath opening for temperature control of small objects.

Product features

• Ergonomic design and easy operation
• Small overall dimensions for lowest space requirement
• Splash-proof keypad
• Large, bright LED display
• Precise PID temperature control
• RS232 interface for PC connection
• Adjustable high temperature cut-out, visible via display
• Pump connections for external temperature applications
• Bath opening for temperature control of small objects in the bath
• Front drain
• Extra bright displays, easy to read from a distance
• Precise temperature control
• Unique early warning system for low liquid level
• ATC3 3-Point-Calibration
• Class III (FL) according to DIN 12876-1

Specifications for Julabo CF30 Cryo-compact circulator

Cooling capacity at 20°C (kW) 0.32
Temperature range (°C) -30...+150
Bath volume (liter) 2...3.5
Usable bath opening (W x L/D) (cm) 16x3/14
Pump capacity flow rate (l/min) 15
Heating capacity (kW) 2
Temperature stability (°C) ±0.03
