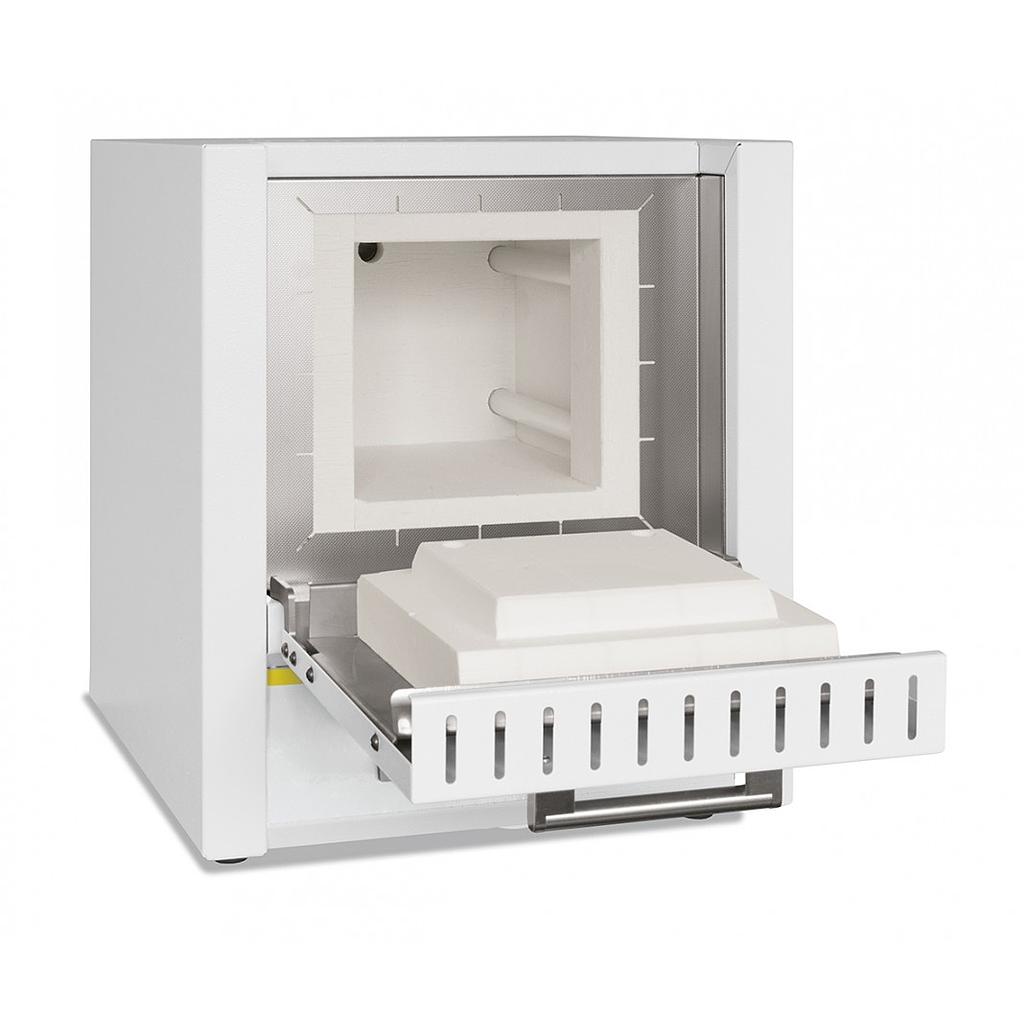

Nabertherm LE 6/11/R7 compact muffle furnace
• Heating from two sides from heating elements protected in quartz glass tubes
• Fast heating times
• Maintenance-friendly replacement of heating elements and insulation
• Solid state relays provide for lownoise operation
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Flap door which can also be used as a work platform
• Exhaust air outlet in rear wall
• Compact dimensions and light weight
• Controller mounted under the door to save space
• Controller R7 (adjustable for one temperature)
With their convincing price/performance ratio and the fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.
Standard Equipment
• Heating from two sides from heating elements protected in quartz glass tubes
• Fast heating times
• Maintenance-friendly replacement of heating elements and insulation
• Housing coated in RAL 9003
• Solid state relays provide for lownoise operation
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Flap door which can also be used as a work platform
• Exhaust air outlet in rear wall
• Compact dimensions and light weight
• Controller mounted under the door to save space
• Controller R7 (adjustable for one temperature)
Option
• Chimney, chimney with fan or catalytic converter
Specifications for Nabertherm LE 6/11/R7 compact muffle furnace
| Net weight (kg) | 27 |
| Interior volume (liter) | 6 |
| Temperature maxium | 1100˚C |
| Internal dimension (WxHxD) (mm) | 170x200x170 |
| Connected load in kW | 2 |
| Electrical conneciton | 1 ph |
| Heating time in min | 30 |
| Controller | R 7 |
