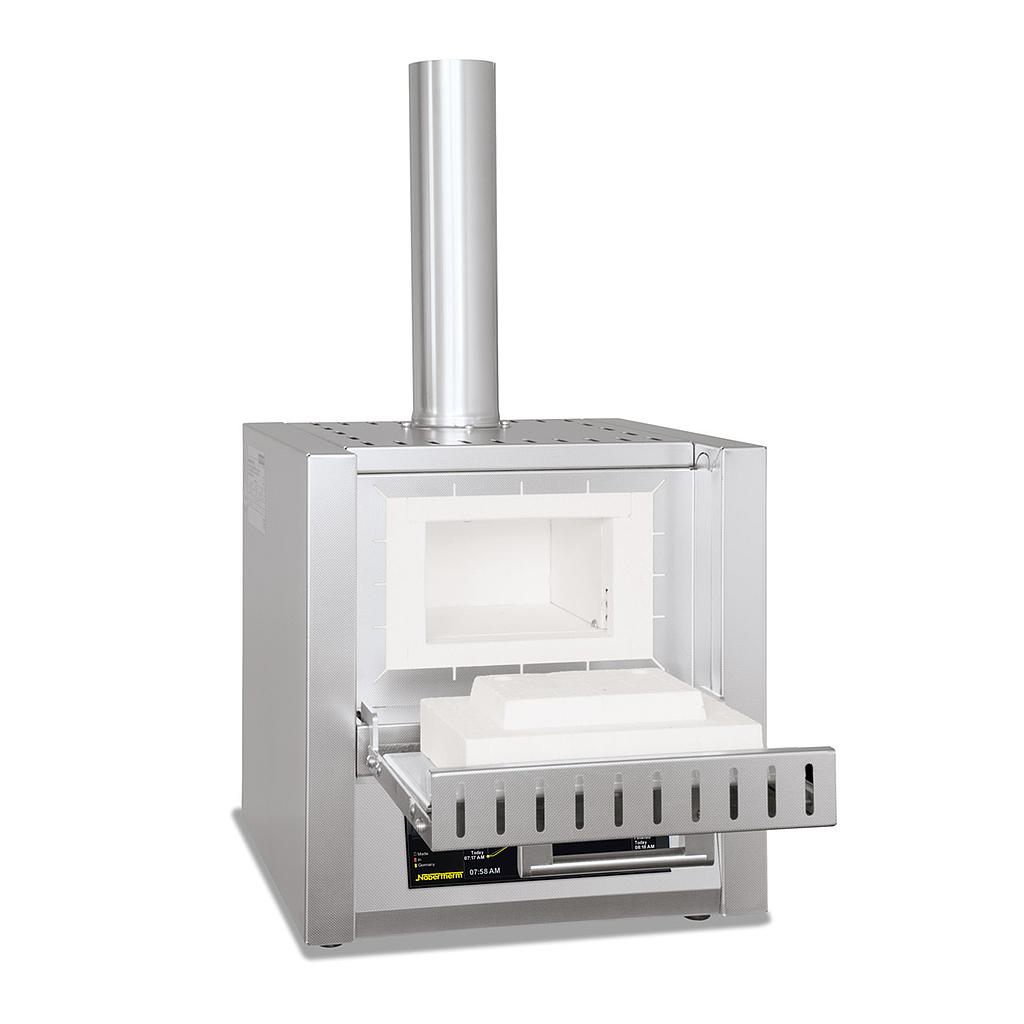

Nabertherm LV 3/11/B510 ashing furnace
• With flap door (LV)
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Solid state relays provide for lownoise operation
• Controller B510 (5 programs with each 4 segments)
Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.
Standard Equipment
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• With flap door (LV)
• Solid state relays provide for lownoise operation
• Controller with touch operation B510 (5 programs with each 4 segments)
Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Port for thermocouple in the rear wall or in the furnace door
Specifications for Nabertherm LV 3/11/B510 ashing furnace
| Net weight (kg) | 20 |
| Interior volume (liter) | 3 |
| Temperature maxium | 1100˚C |
| Internal dimension (WxHxD) (mm) | 180x150x120 |
| Connected load in kW | 1.3 |
| Electrical conneciton | 1 ph |
| Heating time in min | 45 |
| Controller | B 510 |
