Stakpure OmniaTap-W xs 8 UV-TOC Ultra pure water system
The intuitive all-rounder.
OmniaTap xs touch is the intelligent compact system with intuitive touchscreen operation when both pure and ultrapure water is required in small quantities. The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe.
The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.

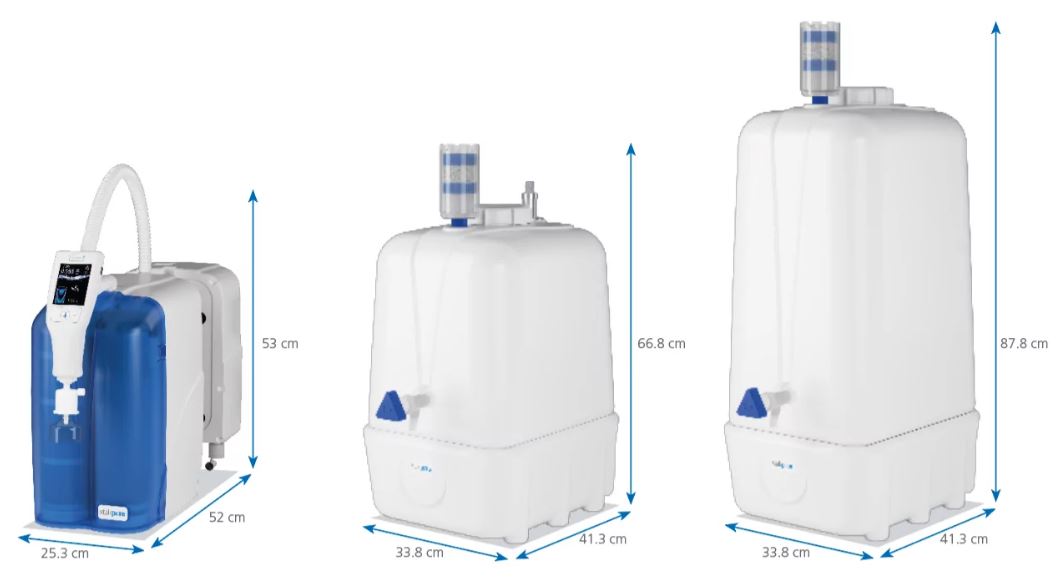

The adaptable pure water tanks with a volume of 7, 30 or 60 liters enable the continuous withdrawal of type II laboratory water for other applications. A pure water storage tank is required to operate the OmniaTap devices, which can be ordered separately.
• OptiFill touch dispenser is standard
• Real time TOC monitoring
• Spent filters are simply and quickly exchanged
• Leakage sensor is standard
• Integrated pressure reducer is standard
• Precise volume control
• Ready-to-use, including filter cartridges

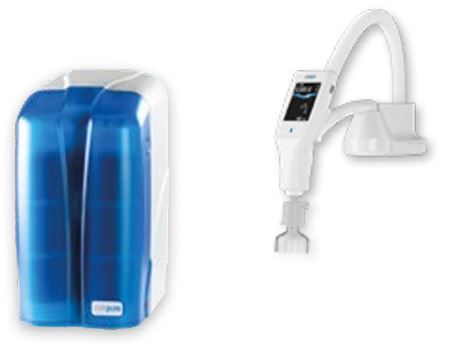

Production unit under bench + OptiFill touch wall version
The intuitive all-rounder. For H2O pure type I + II.
OmniaTap xs touch is the intelligent compact system with intuitive touchscreen operation when both pure and ultrapure water is required in small quantities. The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe.
The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.
The adaptable pure water tanks with a volume of 7, 30 or 60 liters enable the continuous withdrawal of type II laboratory water for other applications. A pure water storage tank is required to operate the OmniaTap devices, which can be ordered separately.
Features
• OptiFill touch dispenser is standard
• Real time TOC monitoring
• Spent filters are simply and quickly exchanged
• Leakage sensor is standard
• Integrated pressure reducer is standard
• Precise volume control
• Ready-to-use, including filter cartridges
Specifications for Stakpure OmniaTap-W xs 8 UV-TOC Ultra pure water system
| Conductivit (Type I) (µS/cm) | 0.055 |
| Conductivit (Type II) (µS/cm) | 0.067 – 0.1 |
| Pure water performance at 15°C (l/h) | 8 |
| Dispensing performance (l/min) | up to 2 |
| Programmable volume dispensing (liter) | 0.05-25 |
| TOC-value (in dependence on the feedwater quality) (ppb) | <5 |
| Bacteria CFU/ml | < 0.01 |
| Particles (with sterilizing filter 0.2 µm) /ml | < 1 |
| Quality of produced water | Type I+II |
