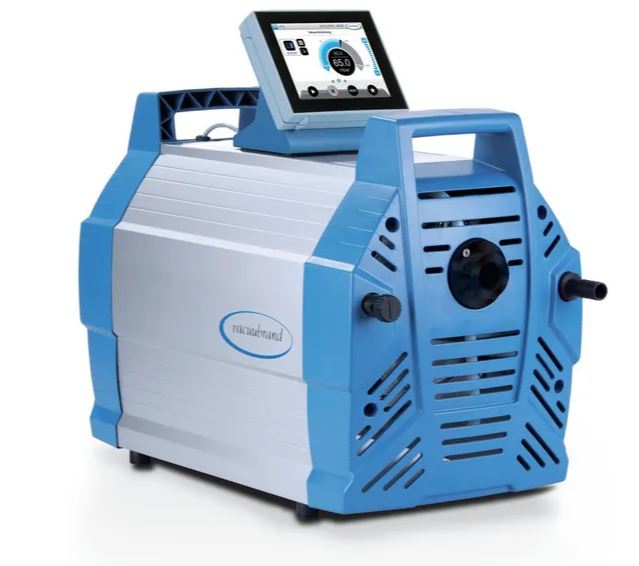

Vacuubrand MD 12C NT VARIO Select chemistry diaphragm pump
• High pumping speed for high-boiling-point solvents
• Wetted surfaces made of chemically resistant fluoropolymer and perfluoroelastomer
Applications
• Stand-alone rotary evaporators
• Vacuum drying ovens
• Vacuum distillation columns
• Other laboratory vacuum applications
Built-in VACUU·SELECT controller
• Application-based graphical interface
• Predefined applications and drag-and-drop editing
• Automatic boiling point detection and vacuum adjustment
• VARIO control: pump performance adapts to the process requirements
Technical data
• Ultimate vacuum with gas ballast: 3 mbar
• Number of stages in series: 3
• Number of pump heads: 8
The MD 12C NT VARIO select is an ideal choice when high pumping speed and reliable performance are required for work with high-boiling-point solvents.
Thanks to its chemically resistant fluoropolymer and perfluoroelastomer wetted materials, it performs excellently in stand-alone rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar laboratory applications.
The built-in VACUU·SELECT controller, with its application-based graphical interface, simplifies the setup and control of vacuum processes.
Thanks to automatic boiling point detection, the vacuum setting is always optimal, reducing process time, while the pump runs only as fast as necessary – ensuring quiet operation and longer maintenance intervals.
Key features
VACUU·SELECT vacuum controller with predefined applications and simple drag-and-drop editing.
• Automatic boiling point detection and vacuum adjustment.
• Outstanding performance for high-boiling-point solvents.
• Extremely long diaphragm lifetime, with low operating and service costs.
Technical data
• Ultimate vacuum with gas ballast: 3 mbar
• Number of stages in series: 3
• Number of pump heads: 8
Specifications for Vacuubrand MD 12C NT VARIO Select chemistry diaphragm pump
| Product type | Diaphragm vacuum pump |
| Brand | Vacuubrand |
| Max. pumping speed (m3/h) | 14.3 |
| Final vacuum value category (mbar) | 1…4 |
| Delivery capacity value category (m3/h) | 14.3…28 |
| Chemical resistant | yes |
| Explosion proof | no |
| Ultimate vacuum (mbar) | 1.5 |
