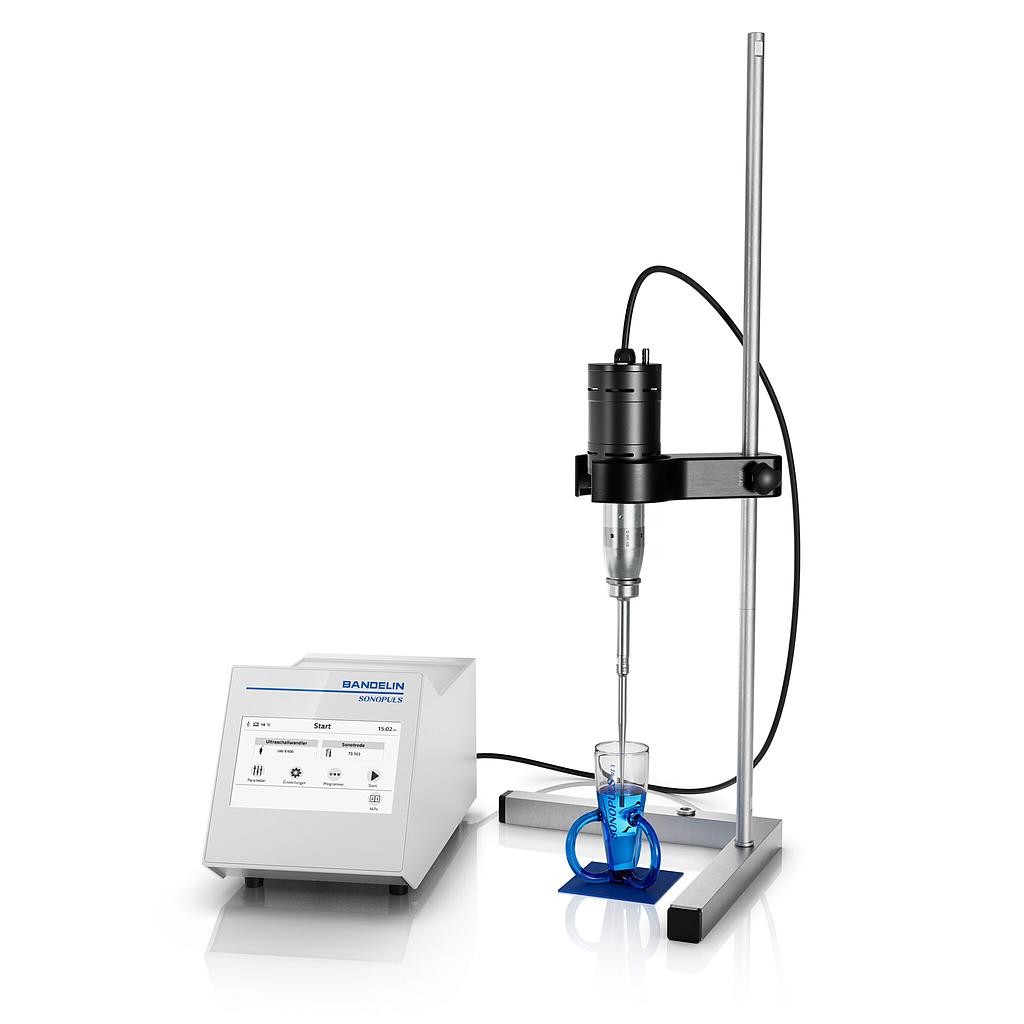

Bandelin SONOPULS HD 5100 ultrasonic homogeniser
Product features
• Efficient sonication of medium sample volumes (2–200 ml)
• 20 kHz operating frequency with up to 100 W power
• Compatible with sonotrodes of 2–13 mm diameter
• Precise amplitude control from 10–100%
• AMPLICHRON® technology for constant amplitude stability
• Pulsation mode and integrated timer for controlled processing
• Large display and program memory for easy operation
• Ideal for cell disruption, emulsification, and homogenisation
• Suitable for degassing and sample preparation for particle analysis
• Ready-to-use system including generator, transducer, and accessories
The HD 5100 optimally sonicates sample volumes of 2-200 ml at 20 kHz and sonotrodes with a diameter of 2-13 mm. The generator provides up to 100 W of power.
Homogenisers with amplitude control 10 to 100 % and actual value display, pulsation, AMPLICHRON® circuit (guarantees constant amplitude independent of changing conditions), integrated timer, remote control.
Areas of application
• Disruption of cells, bacteria, viruses, tissue (cell disruption)
• Production of finest emulsions
• Homogenising substances
• Degassing of liquids
• Sample preparation for particle size analysis
• Acceleration of chemical reactions
Properties
• More functionality
• For volumes from 2-200 ml
• Flexible application possibilities
• Large display
• Programme memory
Bethe ready-to-use set:
for volumes 2-200 ml
Ultrasonic nominal power max. 100 W
- Ultrasonic generator GM 5200
- Ultrasonic transducer UW 5100
- Step horn SH 100 G
- Sonotrode TS 103, Ø 3 mm
(for volumes 3-50 ml)
- incl. tool for mounting the probes
Technical data
• Sonication volume [ml]: 2-200
• Nominal ultrasonic power [W]: 100
• Ultrasonic frequency [kHz]: 20 ± 0,5
• Sonotrode diameter [mm]: 3
• Probe length [mm]: 147
• Time setting [min]: 9 h: 59 min: 59 s or continuous operation
• Pulsation times: Working intervals 0.5-600 s: Rest intervals 0.3-600 s
• Energy display: Ws
• Heat output [W]: 100
Specifications for Bandelin SONOPULS HD 5100 ultrasonic homogeniser
| Sample volume range (ml) | 2...200 |
| Nominal ultrasonic power max. (W) | 100 |
