Binder KB PRO 470 Photostability Test Chamber with ICH light modul

    This combination does not exist.

    Enquiry

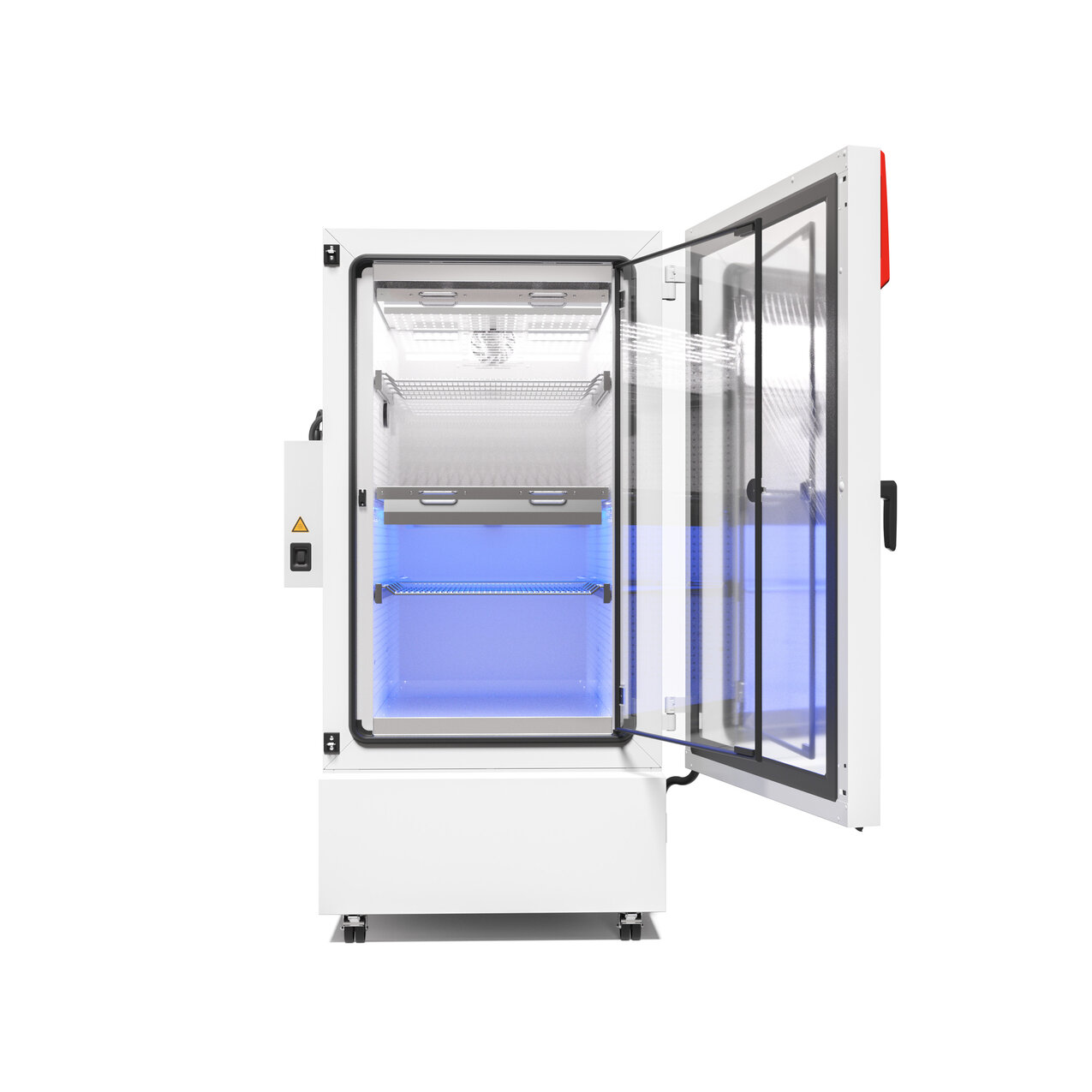

    The Binder KB PRO 470 incubator is an ideal choice for photostability testing in accordance with ICH guideline Q1B. The unit can be easily equipped with an ICH light module, which provides UV and visible (VIS) light to create a standardized test environment. The system is designed to complete the photostability test within three days while minimizing thermal impact on the test material.

    Scope of delivery

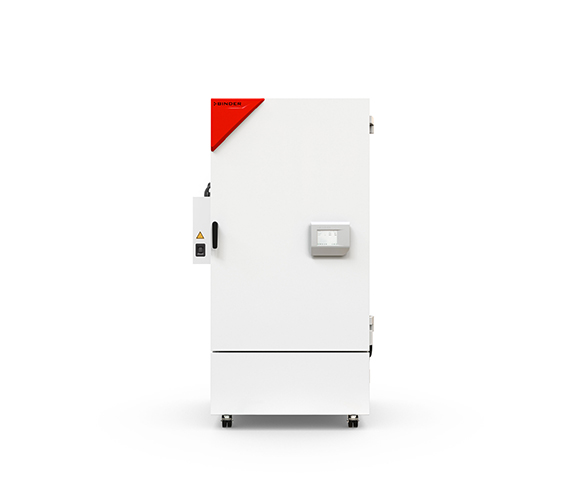

    Binder KB PRO 470 Cooling incubator

    • Temperature range: +5 °C bis +60 °C
    • Proven APT.line ™ preheating chamber technology
    • Energy-efficient cooling with modern inverter cooling unit
    • Cooling with climate-neutral R-290 refrigerant
    • Door heating to prevent condensation
    • Adjustable fan speed
    • Robust housing design with HIT sandwich technology
    • Stainless-steel inner chamber
    • Inner doors made of metal oxide-coated safety glass
    • Two racks made of stainless steel
    • Large access port with silicone plug
    • Robust twin casters, with brakes at the front
    • Intuitive touchscreen controller with time-segment and real-time programming
    • Ergonomically adjustable control terminal
    • Internal data logger, measured values can be read out in open format via USB
    • Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
    • Unit self-test for comprehensive status analysis
    • Data interfaces: Ethernet, USB
    • BINDER Multi Management Software APT-COM™ basic edition

    ICH light module without light dose control
    The ICH light module is connected to the climate chamber via a data cable. This makes it possible to control the irradiation duration of the light cassettes individually with a time segment program via the program controller of the climate chamber.
    Scope of delivery of the BINDER ICH light modules
    • VIS light cassette with connection cable
    • UVA light cassette with connection cable
    • U-rails for mounting the light cassettes in the climate control cabinet
    • Supply box with ballasts/power supply units
    • Profile rails and bolts for attaching the supply box to the climate chamber
    • Data cable
    • Mains cable
    • Operating instructions
