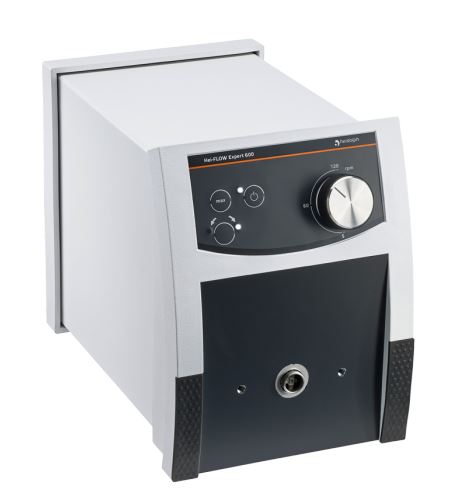

Heidolph Hei-FLOW Expert 600 peristaltic pump

    This combination does not exist.

    Enquiry

    This model has a flow rate of 2.0 — 4,056 ml/min and is designed for operation with singlechannel pump heads. The analog interface makes it possible that all functions can be controlled externally. A control accuracy of ±0.5% and a conveyor speed of 24 to 600 rpm provide optimum process conditions. In addition, sensitive media can be protected from influence by using the optional foot switch. Like all Heidolph peristaltic pumps, the conveying direction of this model can be changed by a simple push of a button. Furthermore, the accelerated filling and emptying of the tubing is simplified, since here only the button for the maximum speed has to be pressed.
    Other technical Data:
    • Speed setting: scale
    • Electronic speed control: digital
    • Select direction of rotation: CW / CCW
    • Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
    • Safety feature: electronic current limiter and overheat protection

    This model has a flow rate of 2.0 — 4,056 ml/min and is designed for operation with singlechannel pump heads. The analog interface makes it possible that all functions can be controlled externally. A control accuracy of ±0.5% and a conveyor speed of 24 to 600 rpm provide optimum process conditions. In addition, sensitive media can be protected from influence by using the optional foot switch. Like all Heidolph peristaltic pumps, the conveying direction of this model can be changed by a simple push of a button. Furthermore, the accelerated filling and emptying of the tubing is simplified, since here only the button for the maximum speed has to be pressed.
    Other technical Data:
    • Speed setting: scale
    • Electronic speed control: digital
    • Select direction of rotation: CW / CCW
    • Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
    • Safety feature: electronic current limiter and overheat protection
