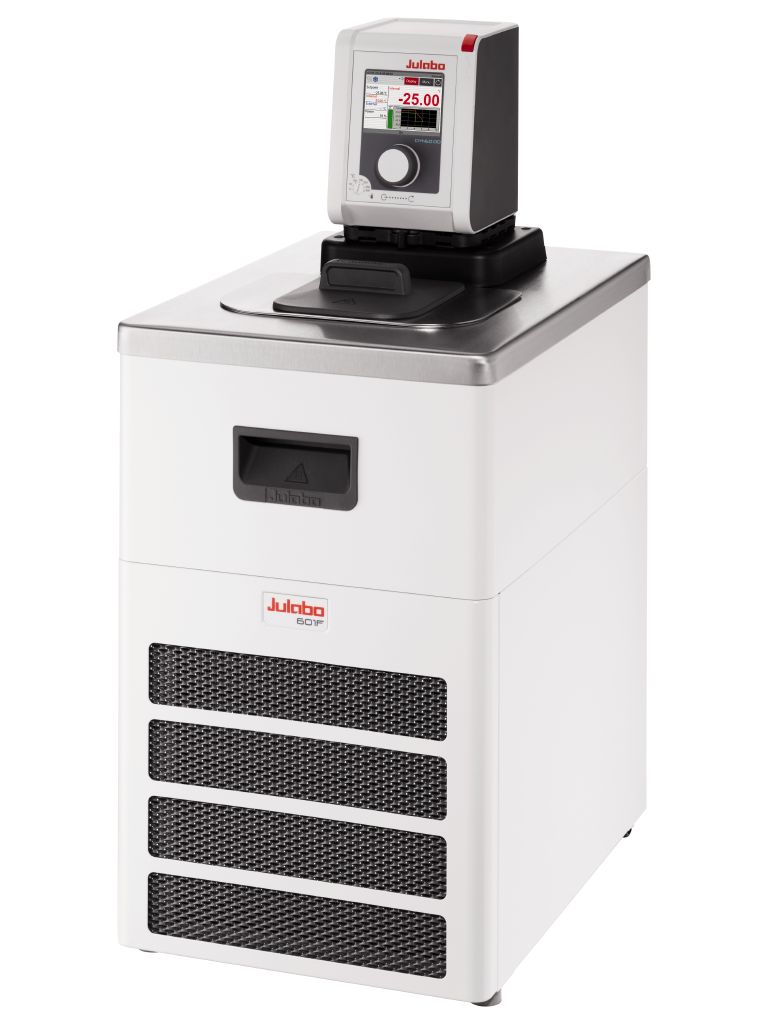

Julabo DYNEO DD-601F Refrigerated/heating circulator

  • Working temperature range (°C)
  • Temperature stability (°C)
  • Cooling capacity at 20°C (kW)
  • Heating capacity (kW)
  • Bath volume (liter)
  • Usable bath opening (W x L/D) (cm)
  • Pump capacity flow rate (l/min)
  • Interface

This combination does not exist.

Enquiry

Refrigerated circulators of the DYNEO series distinguish themselves with a great price-performance ratio. The instruments offer high heating/cooling capacities for short heat-up and cool-down times. The refrigerated circulators work precisely and reliably even at higher ambient temperatures up to +40 °C. Either in basic research, in material testing or in technical systems – the DYNEO refrigerated circulators offer functional solutions for every requirement and budget.
• Models suitable for internal and external applications
• Optimized cooling coil design provides more space in the bath
• Continuously adjustable, powerful pressure pump
• Supply pressure 0.7 bar
• Easy change-over from internal to external circulation and vice versa
• Large color TFT display, multi-lingual user interface
• Ease of use via central rotary dial
• Integrated programmer
• External Pt100 sensor connection
• USB data port
• RS232 interface or analog interfaces (optional)
• Built-in drain tap for easy and safe drainage

Refrigerated circulators of the DYNEO series distinguish themselves with a great price-performance ratio. The instruments offer high heating/cooling capacities for short heat-up and cool-down times. The refrigerated circulators work precisely and reliably even at higher ambient temperatures up to +40 °C. Either in basic research, in material testing or in technical systems – the DYNEO refrigerated circulators offer functional solutions for every requirement and budget.
• Models suitable for internal and external applications
• Optimized cooling coil design provides more space in the bath
• Continuously adjustable, powerful pressure pump
• Supply pressure 0.7 bar
• Easy change-over from internal to external circulation and vice versa
• Large color TFT display, multi-lingual user interface
• Ease of use via central rotary dial
• Integrated programmer
• External Pt100 sensor connection
• USB data port
• RS232 interface or analog interfaces (optional)
• Built-in drain tap for easy and safe drainage


Specifications for Julabo DYNEO DD-601F Refrigerated/heating circulator

Working temperature range (°C) -35...+200
Temperature stability (°C) ±0.01
Cooling capacity at 20°C (kW) 0.6
Heating capacity (kW) 2
Bath volume (liter) 8…10
Usable bath opening (W x L/D) (cm) 22x15/20
Pump capacity flow rate (l/min) 8...27
Interface nincs or analóg or RS232
