Stand-alone, automated rotary evaporator system

This package includes:
• Automatic module Hei-VOLUME Distimatic Pro Benchtop: For automated filling of the rotary flask and condensate drainage by overpressure
• Hei-VAP Ultimate Control Benchtop rotary evaporator: Motor-driven lift model with integrated vacuum and recirculating chiller control. Equipped with coated G9B XL high-performance vertical condenser (condensation area: 0.22 m²).
• Rotary evaporator including 5 L flask and 5 L long-lasting heating bath liquid for unattended operation of the system, without having to refill the heating bath
• Hei-CHILL 1100 Pro recirculation chiller including cooling liquid - Hei-CHILL Pro (20 l) and RS 232 cable for central control of the chiller via the control panel of the rotary evaporator: Optimum performance for automated continuous operation.
• Hei-VAC Vario Control vacuum pump including condensate chiller: quiet and energy-saving speed-controlled diaphragm vacuum pump for a stable system vacuum
• Tubing set: Chemical-resistant tubing for vacuum and cooling lines

The larger all-rounder up to 15 kg

This orbital shaker offers everything your heart desires. From a unique, very wide range of rotation speeds (1 to 530 rpm) to the timer (1 min to 999 h 59 min) and an integrated RS 232 interface, the Hei-SHAKE Orbital Core has all the core functions required for the realization of any shaking application in the laboratory.

The integrated shaker’s platform and the flat rubber mat 2000 – both included in the scope of delivery - increase by 77% the capacity’s surface of this device compared to Hei-SHAKE Orbital Core.

With a 20 mm shaking diameter (orbit), we guarantee a homogeneous distribution of your media. Your applications can be carried out in continuous operation or using a timer. Device control and semi-automated processes can be carried out remotely by connecting to a PC or via server-based software, e.g. Hei-PROCESS. In addition, the automatic restart, e.g. after power failures, can be set via the user-friendly menu structure.

The all-rounder up to 15 kg

This orbital shaker offers everything your heart desires. From a unique, very wide range of rotation speeds (1 to 530 rpm) to the timer (1 min to 999 h 59 min) and an integrated RS 232 interface, the Hei-SHAKE Orbital Core has all the core functions required for the realization of any shaking application in the laboratory.

With a 20 mm shaking diameter (orbit), we guarantee a homogeneous distribution of your media. Your applications can be carried out in continuous operation or using a timer. Device control and semi-automated processes can be carried out remotely by connecting to a PC or via server-based software, e.g. Hei-PROCESS. In addition, the automatic restart, e.g. after power failures, can be set via the user-friendly menu structure.

Scope of delivery: Shaker incl. flat rubber mat 1000

The new MB92 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. Ideal for users demanding a higher level of performance on both the laboratory and production floor, offering greater data security and integrity with password protection.

Unique Features:
• Applications: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
• Display: 4.3" capacitive touch screen
• Operation: Internal power supply with power cord (included)
• Communication: RS232, USB device, USB host
• Construction: Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover
• Design Features: Eight shut-off criteria (manual, timed, A10, A30, A60, A90, A160, free mg/s), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 200 results for all methods, 40-200℃ heating range, multiple operational languages

Specifications:
• Maximum capacity: 90 g
• Readability moisture content: 1 mg/0.01%
• Repeatability: 0.08% (3g sample); 0.015% (10g sample)
• Pan Size: 3.5 in (90 mm)
• Heater Type: Carbon fiber
• Recommended moisture content MC%: 0.5 % - 100 %
• Cal. weight, class: 50g, F1
• Adjustment: Temperature Adjustment - Mechanical (100℃, 160℃); Weight Adjustment - External (50g)
• Dimensions (LxHxW): 352 mm x 138 mm x 210 mm
• Net weight: 4.3 kg

MB62 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. With flexibility in method creation, settings and data access, MB62 is suitable for a variety of moisture applications in numerous industries.

Unique Features:
• Applications: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
• Display: 5" LCD with 2nd line display
• Operation: Internal power supply with power cord (included)
• Communication: RS232, USB device
• Construction: Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover
• Design Features: Seven shut-off criteria (manual, timed, A10, A30, A60, A90, A160), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 100 results for all methods, 10 sample ID, 40-200℃ heating range, multiple operational languages

Specifications:
• Maximum capacity: 90 g
• Readability moisture content: 1 mg/0.01%
• Repeatability: 0.018% (10g sample); 0.10% (3g sample)
• Pan Size: 3.5 in (90 mm)
• Heater Type: Carbon fiber
• Recommended moisture content MC%: 0.5 % - 100 %
• Cal. weight, class: 50g, F1
• Adjustment: Temperature Adjustment - Mechanical (100℃, 160℃); Weight Adjustment - External (50g)
• Dimensions (LxHxW): 352 mm x 138 mm x 210 mm
• Net weight: 4.3 kg

The new OHAUS MB32 features a redesigned housing with stronger material, innovative carbon fiber heating technology and an upgraded load cell for enhanced durability and performance. The easy-to-use MB32 is the perfect choice for routine moisture testing.

Unique Features:
• Applications: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
• Display: 4" LCD with 2nd line display
• Operation: Internal power supply with power cord (included)
• Communication: RS232, USB device
• Construction: Carbon fiber heat source, PBT housing, Die casting aluminum base, metal pan support, metal pan handler, in use cover
• Design Features: Five shut-off criteria (manual, timed, Auto, A30, A90), two drying profiles (standard and fast), storage up to two methods, 40-180℃ heating range, multiple operational languages

Specifications:
• Maximum capacity: 90 g
• Readability moisture content: 1 mg/0.01%
• Repeatability: 0.02% (10g sample); 0.15% (3g sample)
• Pan Size: 3.5 in (90 mm)
• Heater Type: Carbon fiber
• Recommended moisture content MC%: 0.5 % - 100 %
• Cal. weight, class: 50g, F1
• Adjustment: Temperature adjustment (100°C, 160°C); External weight adjustment (50 g)
• Dimensions (LxHxW): 352 mm x 138 mm x 210 mm
• Net weight: 4.3 kg

As with all circulators from the MAGIO range, the ultra-low refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. The devices offer extra strong pressure and suction pumps, thus fulfilling the highest demands for temperature control of external applications. They cover an enormous temperature range and are also suitable for simulating extreme conditions down to -90 °C.

The cooling machine is equipped with sustainable, natural refrigerant in both cooling stages, making it a particularly future-proof solution. Thanks to the tool-free removable venting grid, the condenser can be cleaned easily, ensuring that the full cooling capacity is available throughout the entire life cycle. A heated bath cover plate to prevent condensation and ice build-up is implemented as standard. In addition, the absence of side vents means that several units can be placed next to each other to save space. Using an additional condensation trap (accessories) significantly reduces the dilution of bath fluids at low operating temperatures.

Product features:
• Class III (FL) according to DIN 12876-1
• RS232 interface for online communication
• Integrated programmer
• Integrated external Pt100 connection
• Ethernet
• Analog interfaces (accessory)
• Ideal for demanding external applications
• USB connection
• Simple control of complex applications
• Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
• Continuously adjustable, extremely powerful pressure / suction pump
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Connections for solenoid valve
• Integrated pump connection M16×1

The beer force test is a method used to determine the shelf life and stability of beer. This test is performed to analyze a beer's shelf life and tendency to microbiological or chemical change. The objective of this test is to quickly predict the beer's behavior over long storage periods. This is done by bottling beer samples and simulating artificial, accelerated aging by means of temperature cycles. This is repeated until an initial turbidity is detected by a photometer. The force test is particularly useful for breweries optimizing their product quality assurance process, helping them identify potential problems before their beer is released to the market.

DYNEO DD-1201F-BF has all the temperature profiles necessary to perform the force test, for both stabilized and untreated beer, already installed. If specific changes to the program settings are needed, the user can make these changes at any time and in a simplified manner.

Product features:
• Automatic cycles of temperature ramps simulate aging
• Pre-programmed temperature profiles for forcing test
• Program modification possible at any time
• Large bath opening with insert for 20 bottles, 0.5 liters each (Racks for other bottle sizes on request)
• Removable Plexiglass® cover
• RS232 interface for online communication
• Powerful and infinitely adjustable pressure pump
• Flow rate 27 l/min, pressure 0.7 bar
• Large color TFT display, multilingual interface
• Central rotary knob (controller) simplifies operation
• Integrated programmer
• Integrated external Pt100 connection
• PID3 cascade temperature control

The Sigma 8KS is a refrigerated floor-standing centrifuge that is ideal for all-purpose use in the industrial and research sectors. This high-performance centrifuge features impressive capacity of up to 12 x 1,000 ml in a swing-out rotor or 6 x 1,000 ml in a fixed-angle rotor. With a maximum RCF of 20,461 x g, even demanding separation processes can be handled efficiently. Particularly thanks to the ability to use large-volume fixed-angle rotors with high RCF, the Sigma 8KS cover a distinctly broader spectrum of applications compared to competitive units.

What makes the Sigma 8KS floor-standing centrifuge so attractive
For the sedimentation of relatively large quantities of liquids, the Sigma 8KS delivers reliably reproducible results together with impressively smooth running.

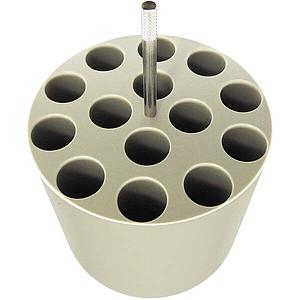

The numerous buckets and adapters can accommodate tubes and flasks from 1.5 ml to 1,500 ml, as well as microtiter plates and deep-well plates. Two 6-position swing-out rotors accommodate standard 1,000 ml and 1,500 ml flat-bottom flasks. Along with the large-capacity fixed-angle rotors, many users appreciate the ability to use a swing-out rotor either with or without a windshield. Energy savings exceeding 63% can be achieved with a closed windshield due to the lower drag. It also reduces heat transfer to the laboratory environment as well as the running noise level.

The Sigma 8KS has a fast, precisely adjustable refrigeration system with a temperature range of –20°C to +40°C. The Rapid Temp quick cooling function allows the centrifuge chamber and accessories to be pre-cooled to a defined temperature. In the other direction, fast heating is also possible.

Intuitive operation with the Spincontrol S premium controller, automatic lid opening and the ergonomic loading height of just 88 cm simplify daily work in the lab and make the Sigma 8KS one of the most popular large-volume centrifuges on the market.

Applications: Industrial lab

Product options: Sigma 8KBS refrigerated blood bank centrifuge, Inert gas port, Water cooling, GMP model with water cooling, RS 232 interface, DataSuite data documentation system

As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. The devices offer extra strong pressure and suction pumps, thus fulfilling the highest demands for temperature control of external applications. Whether in basic research, material testing or technical systems – the MAGIO refrigerated circulators offer high-tech solutions for high customer requirements.

Despite its very compact design, the water-cooled Refrigerated / heating circulator MAGIO MS-1200FW, which has a working temperature range of -50 ... +200 °C, delivers a powerful cooling capacity of 1,26 kW at 20°C. Watercooled systems are normally more efficient than air-cooled systems, as water has a higher specific heat capacity than air. In addition, they introduce far less waste heat into the environment, which helps create a pleasant working climate.

This cooling machine works with natural, environmentally-friendly refrigerant and was developed with a focus on energy efficiency. This means significant savings on the operating costs for numerous applications, which also means rapid amortization of the procurement cost. At the same time, the lower energy consumption positively contributes to climate protection.

High resolution TFT touch display
The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.
Product features

• Ideal for demanding external applications
• Simple control of complex applications
• Continuously adjustable, extremely powerful pressure / suction pump
• Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Integrated programmer
• Integrated external Pt100 connection
• USB connection
• RS232 interface for online communication
• Ethernet
• Analog interfaces (accessory)
• Class III (FL) according to DIN 12876-1
• Connections for solenoid valve
• Integrated pump connection M16×1

The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.
• External Pt100 sensor connection
• Alarm output
• Second external Pt100 sensor connection (accessory)
• Built-in 5.7’’ industrial color touchscreen
• Analog connections, RS485, Profibus DP (accessory)
• Integrated gas warning sensor, electrically wired and calibrated
• Intelligent warning and safety functions
• Pump pressure up to 5.5 bar

The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.
• External Pt100 sensor connection
• Alarm output
• Second external Pt100 sensor connection (accessory)
• Built-in 5.7’’ industrial color touchscreen
• Analog connections, RS485, Profibus DP (accessory)
• Integrated gas warning sensor, electrically wired and calibrated
• Intelligent warning and safety functions
• Pump pressure up to 3 bar

High capacity shaking machine for heavy loads, suitable for temperature controlled rooms
• Kuhner developed the RC2-X specifically for large capacity shaking. It will accept two large C-size trays (800 x 660 mm) which can be fitted with Erlenmeyer flask clamps, test-tube holders or sticky mats etc.
Performance characteristics:
• Large capacity
• Multipurpose loading of the C-tray
• Ideal for temperature controlled rooms
• Orbital shaking with maximum speed of 400 rpm
• Maintenance free, continuous operation with minimal power consumption
• Small space requirement despite largest capacity
Technical Data:
• Speed: 20-300 rpm
• Diameter: 50 mm (orbital motion)
• Weight: 330 kg
• Accuracy, absolute: ± 0.5 rpm
• Setting, digital: 1 rpm
• Active brake: adjustable
• Interface: CAN-Bus, RS232
• Loading, maximum: 100 kg
• Tray size: 2x C-tray (800x660 mm)
• Monitoring: shaking speed

Robust devices for applications in biochemistry up to water and sediment analysis according to DIN EN 12457-4.
• Quickly clamps in 2 vessels of any size and accepts load capacities up to 1 kg
• Speed continuously adjustable from 20 to 100 rpm
• Universal adaptor allows for the use of various vessels of 50 - 160-mm height
• In addition, an optional adaptor is available for the use of 20 test tubes at a time

For tubing diameter 0.2 - 2.8 mm

For Single- and Multi-Channel use (not suitable for use with Cassette small)
• Application: Food industry, well suited to products with high fat content
Features:
• Extremely chemical-resistant | e. g. appropriate for the use of
• polar solvents
• Plasticizer and oil-free
• Superior flex life in peristaltic pumps
• Translucent to ease visual inspection
• Outstanding flexibility
• Material: Thermoplastic tube, transparent
• Complies with the standards: USP Class VI, FDA (21 CFR 177.2600) and GLP
• Temperature range: -78 to +71 °C
• Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide

For Single- and Multi-Channel use (not suitable for use with Cassette small)
• Application: Food industry, well suited to products with high fat content
Features:
• Extremely chemical-resistant | e. g. appropriate for the use of
• polar solvents
• Plasticizer and oil-free
• Superior flex life in peristaltic pumps
• Translucent to ease visual inspection
• Outstanding flexibility
• Material: Thermoplastic tube, transparent
• Complies with the standards: USP Class VI, FDA (21 CFR 177.2600) and GLP
• Temperature range: -78 to +71 °C
• Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide

For Single- and Multi-Channel use (not suitable for use with Cassette small)
• Application: Food industry, well suited to products with high fat content
Features:
• Extremely chemical-resistant | e. g. appropriate for the use of
• polar solvents
• Plasticizer and oil-free
• Superior flex life in peristaltic pumps
• Translucent to ease visual inspection
• Outstanding flexibility
• Material: Thermoplastic tube, transparent
• Complies with the standards: USP Class VI, FDA (21 CFR 177.2600) and GLP
• Temperature range: -78 to +71 °C
• Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide

For Single- and Multi-Channel use (not suitable for use with Cassette small)
• Application: Food industry, well suited to products with high fat content
Features:
• Extremely chemical-resistant | e. g. appropriate for the use of
• polar solvents
• Plasticizer and oil-free
• Superior flex life in peristaltic pumps
• Translucent to ease visual inspection
• Outstanding flexibility
• Material: Thermoplastic tube, transparent
• Complies with the standards: USP Class VI, FDA (21 CFR 177.2600) and GLP
• Temperature range: -78 to +71 °C
• Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide

For Single- and Multi-Channel use (not suitable for use with Cassette small)
• Application: Food industry, well suited to products with high fat content
Features:
• Extremely chemical-resistant | e. g. appropriate for the use of
• polar solvents
• Plasticizer and oil-free
• Superior flex life in peristaltic pumps
• Translucent to ease visual inspection
• Outstanding flexibility
• Material: Thermoplastic tube, transparent
• Complies with the standards: USP Class VI, FDA (21 CFR 177.2600) and GLP
• Temperature range: -78 to +71 °C
• Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide
