The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6.

Package includes: Vacuum controller VACUU-SELECT (without internal vacuum sensor and venting valve) with VACUU·VIEW extended and power supply, solenoid valve VV-B 15C KF DN 16, T-piece KF DN 16, hose nozzle DN 10 mm (PP), clamping and sealing rings
Technical data:
• Vacuum sensor cable length: 2 m
• Large display
• Accuracy of measurement: +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr
• Vacuum connection: small flange KF DN 16 / hose nozzle DN 10 mm

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

Description

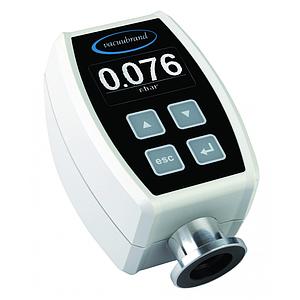

The VACUU•SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU•SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps.
With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU•BUS system.
Performance features
• Complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from 5 mbar to fine vacuum (10-3 mbar)
• graphic user interface for simple operation
• predefined applications for quick, reproducible results
• application editor allows easy customization
• proprietary Pirani-type fine vacuum gauge offers superior chemical resistance and mechanical robustness

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

Description
The VACUU•SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU•SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps.
With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU•BUS system.
Performance features
• complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from atmosphere to fine vacuum (10-3 mbar)
• graphic user interface for simple operation
• predefined applications for quick, reproducible results
• application editor allows easy customization
• rugged VACUU•VIEW extended gauge with wide measuring range offers superior chemical resistance and mechanical robustness

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

Description
The VACUU•SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU•SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps.
With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU•BUS system.
Performance features
• Complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from 5 mbar to fine vacuum (10-3 mbar)
• graphic user interface for simple operation
• predefined applications for quick, reproducible results
• application editor allows easy customization
• proprietary Pirani-type fine vacuum gauge offers superior chemical resistance and mechanical robustness

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

With the help of high-quality Ohaus Frontier rotors and adapters, you can find the best solution for both basic and high-performance sample preparation needs.

VACUU•LAN® lab vacuum networks are the high-performance, modular alternative to other lab- and building-wide vacuum systems. Because of their performance, sustainability, and economic advantages, these networks have become the preferred choice of leading architecture and engineering firms, educational institutions, research organizations and industrial firms.
The Concept
• A single pump supports work groups of up to 20-25 simultaneous users
• Provides vacuum as deep as 2 mbar (1.5 torr or 29.86 in Hg) at the point of use
• Chemical-resistant tubing and fittings prevent system degradation due to corrosion
• Specially-designed vacuum fixtures ensure deep, stable vacuum and isolate users from one another
• Perfect for renovations, retrofits, and new construction
Benefits
• Deep, stable vacuum – 1.5 torr (2 mbar) at the point of use means you can eliminate many individual pumps
• Isolated – minimizes interference and cross-contamination risk among users
• Modular and scalable – suitable for any size project, from a single lab bench to an entire lab building; no need to overbuild ‘just in case’
• Adaptable – upgrade, move, or expand systems easily as needed
• Sustainable – reduces power consumption by up to 70-90% vs. central vacuum systems; eliminates water consumption and contamination caused by use of water jet aspirators
• Economical – low upfront cost per user through ‘right-sized’ installation; microscopic operating costs due to ultra-low maintenance and power consumption
